1300mm width Hydraulic steel coil Sheet Metal Decoiler

Categories PU Sandwich Panel Line
Brand Name: ZC
Model Number: ZC-10T
Certification: CE/ISO
Place of Origin: china
MOQ: 1
Price: Negotiation
Packaging Details: wood
Delivery Time: on condition
Payment Terms: TT or LC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

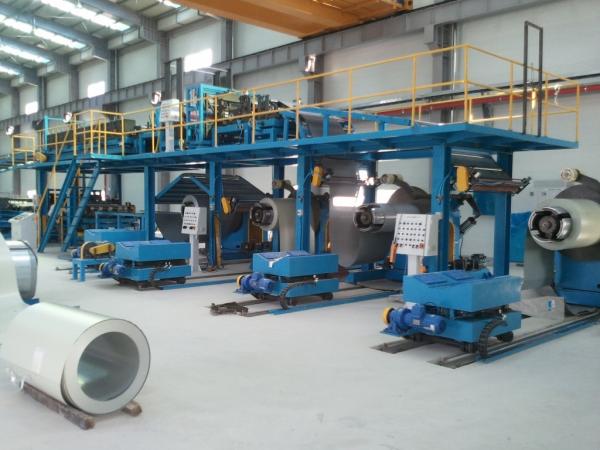

1300mm width Hydraulic steel coil Sheet Metal Decoiler

Steel decoiler


The Hydraulic De-coiler is used to hold and drive the steel coil that is being fed into the roll forming machine. The de-coiler allows for a quick change of steel coli with minimal manual labor. The de-coiler is powered with a feedback system that ensures the roll former is not required to turn the coil. The de-coiler will turn as required to reduce the potential for over coiling. Maximum coil mass: 10,000 kg

Nominal coil ID: 500mm supplied with addition spaces to use 600mm above

Maximum coil OD: 1300mm

Maximum coil width: 1300mm

Machine consists of the following major items:

  • Machine frame
  • Overhung shaft with roller bearing
  • Drive motor and chain
  • Hydraulic power pack (shared power pack on top /bottom coil)
  • Hydraulic cylinder of expansion/retraction
  • Solenoid valves
  • Electrical control system
  • Limit system to allow positioning of de-coiler for different feed positions. Manual positioning with position indicator.
  • Coiler Car-Powered loading bed to aid in loading to the de-coiler.
