| Categories | Profile Projector Measurement |
|---|---|
| Supply Ability: | 50, 000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Place of Origin: | china |
| MOQ: | 1 Piece |
| Price: | negotiation |
| Brand Name: | L&D |
| Model Number: | VOC-1505 |
| Delivery Time: | 6 working days |
| Certification: | CE |
| Packaging Details: | Vacuum Free Fumigation Plywood Export Package |
| Diameter of Protractor Screen: | 300mm |
| Xy Travel: | 150mm*50mm |
| Accuracy: | (3+L/75)µm |
| Metal Table′s Size(Mm): | 340*152 |
| Glass Table′s Size(Mm): | 196*96 |
| Stage Travel X-Axis: | 150mm |
| Stage Travel Y-Axis: | 50mm |
| Stage Travel Z-Axis: | 90mm(for Focus) |
| Resolution: | 0.5µm |
| Measuring Unit: | Built-in Linear Scales |
| Origin: | Dongguan |
| HS Code: | 9031491000 |
| Port: | Shenzhen, China |

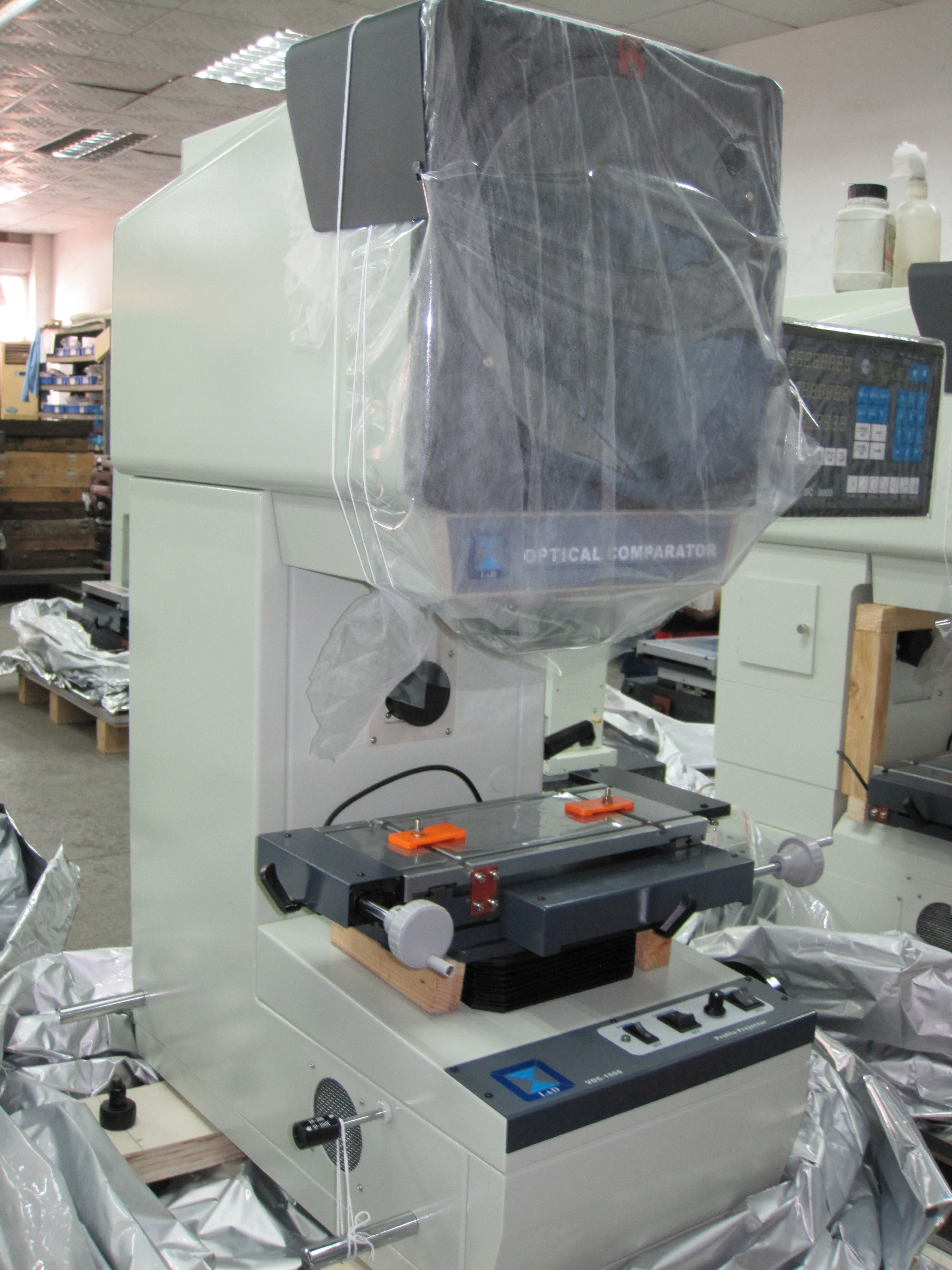

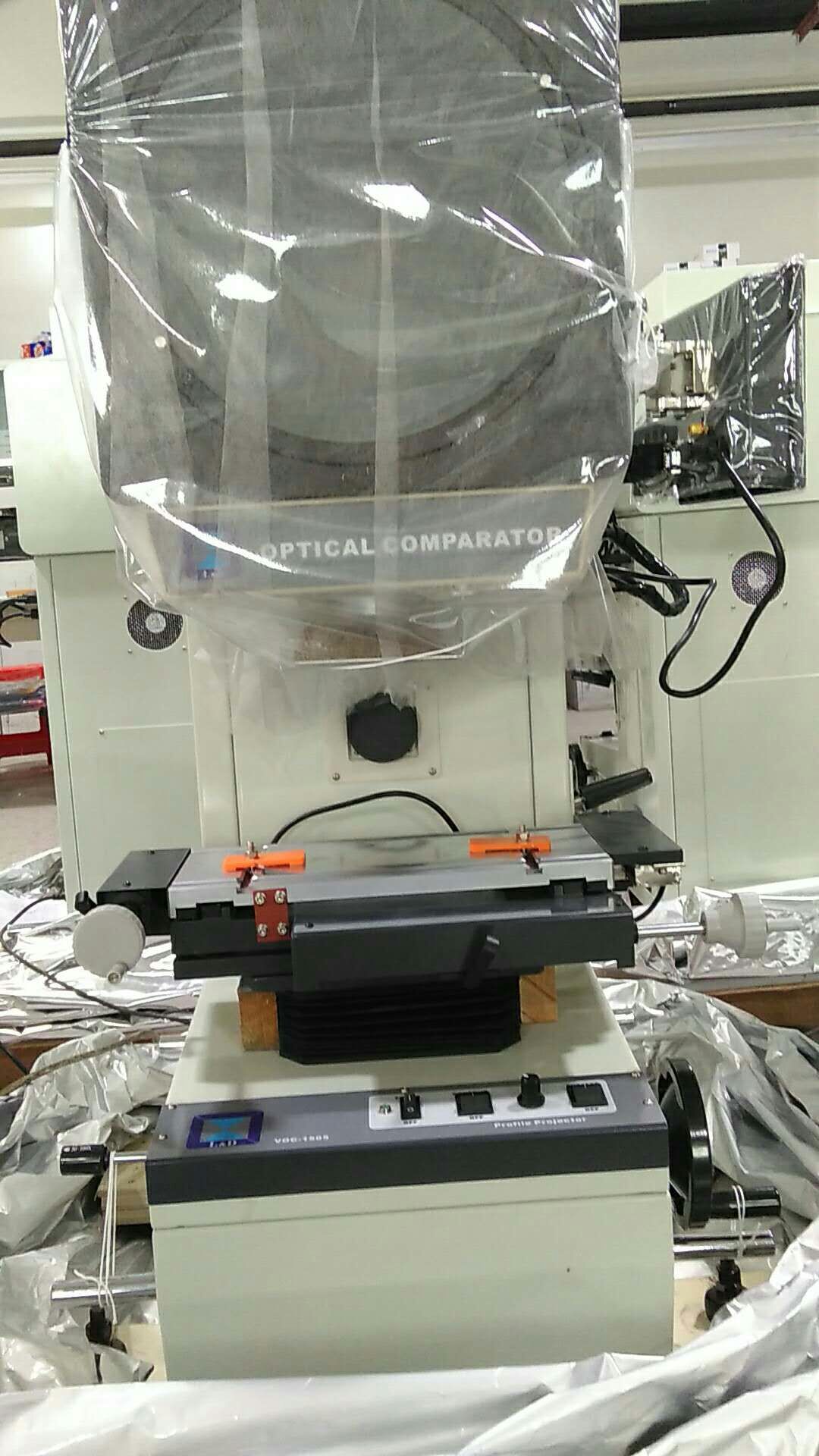

Screw Inspect & measure device profile projector VOC series are
precise and excellent non-contact optical measuring device
integrating with the technology of optic, mechanic, electricity and
computer. This Measuring and Profile Projector is widely used at
the fields of mechanism, meter, electronic, rubber industry, watch
for quality control.
VOC series Screw Inspect & measure device profile projector is very
popular in the market, this Optical inspect device is a perfect
metrology solution to the contour and surface measurment.
VOC series Screw Inspect & measure device profile projector can
inspect all kinds of surface and outline of complicated
work-pieces, such as cam, screw thread, gear, milling cutter, tool,
dies, press components and so on, This benchtop optical measurement
device is an effective metrical and analytic system for education,
research institute and lab.
Features & Advantage
1. Excellent optical measuring system
2. Magnification accuracy: 0.08% under contour illumination; 0.12%
under surface illumination
3. Equipped with DC-3000 Metrology Counter for Geometry
measurement.
4. Supplied with Foot-switch for quick measuring.
5. Erect image measuring for different requirements
6. High Precision measuring table with T-slot, easy to fix the work
pieces
7.0.5 micron High Resolution linear scale
8. Customer can also choose optical Edge Detector system as option
for auto measurment.
9. Customer can also choose Metrology software as option, the
measurement data can be exported to Ms OFFICE
Warranty
We supply 18 months Warranty time instead of regular 12 months
Technical Data
| Erect | VOC1505 |
| Metal table's size(mm) | 340*152 |
| Glass table's size(mm) | 196*96 |
| Stage Travel X-axis | 150mm |
| Stage Travel Y-axis | 50mm |
| Stage Travel Z-axis | 90mm(for focus) |
| Resolution | 0.5µm |
| Measuring unit | Built-in linear scales |
| Accuracy | (3+L/75)µm |
| Screen | Screen Diameter: ¢312mmwith 4 film clips |
| Screen material: fine ground glass | |
| Reference line: Staggered cross and cross-hair | |
| Screen rotary range: 0°~360° | |
| Rotary angle resolution:1' or 0.01° | |
| Digital Readout | DC-3000 Metrology Counter with RS-232C output Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting, ½ calculation, 0 ° 90 ° 270 ° 360 ° conversion, linear compensation, RS-232 data output |
| Illumination | Contour illumination: 24V/150W halogen bulb Reflected illumination: 24V/150W halogen bulb Filter (option) for contour illumination |
| Power | AC110-120v, 200-240v, single phase 50/60Hz,Total power 400W |
| Cooling | Built-in cooling fans |
| G.W/N.W | 165/110KG |
Technical Data of Objective Lens
| Objective Lens | Magnification | 10X | 20X | 50X | 100X |
| View field diameter | ¢30 | ¢15 | ¢6.1 | ¢3 | |
| Working Distance(mm) | 77.7 | 44.3 | 38.4 | 25.3 | |
| Max. Workpiece height | 80mm | 80mm | 80mm | 80mm |
Standard Delivery
| Digital Readout DC-3000 | VOC-10X Objective | Screen Clamp |
| Foot-Switch | Rotary table | Power cable |
Optional Delivery
| 2D Measuring Software | Optical Edge Detector | Overlay Charts (3 kinds) |
| VOC-20X Objective lens | VOC-50X Objective lens | VOC-100X Objective lens |
| Holder with Clamp | V Block with Clamp | Swivel Center Support |
| Mini-Printer | Calibration Scale | Calibration gauge |
|
