Brand Name: | QBH |
Model Number: | DIN607 M8-M16 |
Certification: | ISO9001 |
Place of Origin: | CHINA |
MOQ: | 900kg |
Price: | Negotiation |
Payment Terms: | L/C, T/T,OA |
Supply Ability: | 200TON/MONTH |
Delivery Time: | 30DAYS |
Packaging Details: | 25KG/CTN,36CTN/PALLET or small packing |
Material: | Carbon steel |
Size: | M8-M16 |
Standard: | DIN607 |
Surface: | HDG YZP ZP BLACK PTEE DACROMET |
Sample: | Free sample can be sent for test |
Delivery time: | will soon |
Company Info. |
Jiaxing City Qunbang Hardware Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

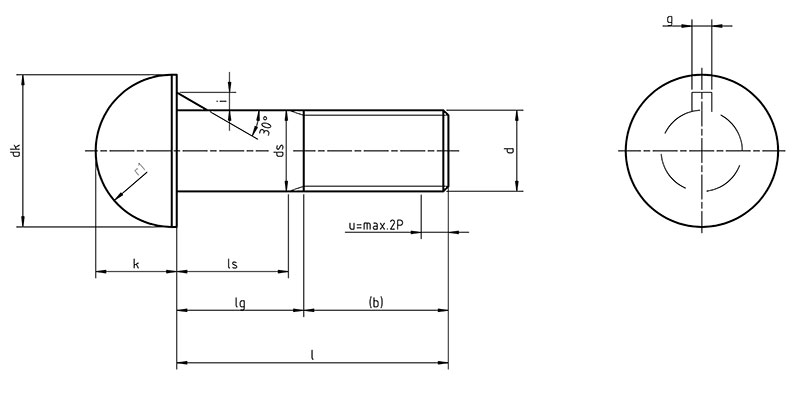

b - length of the thread (at least)
l - length of bolt
d - the nominal diameter of the thread
k - head height
ds - diameter of the screw shank
r1 - radius
g - width of the nib
dk - head diameter
i - height of the nose
Steel: 4.8 8.8
Stainless: -
Plastic: -
Non Ferrous: -
Thread: 8g
Notes:
Table according to DIN 607:
Unit:mm
d | M8 | M10 | M12 | M16 |
---|---|---|---|---|
p | 1,25 | 1,5 | 1,75 | 2 |
b | 22 - 28 | 26 - 32 | 30 - 36 | 38 - 57 |
dk | 16,55 | 19,65 | 24,65 | 30,65 |
ds | 8 | 10 | 12 | 16 |
k | 6,38 | 7,45 | 9,65 | 11,75 |
i | 2,3 | 2,7 | 3,2 | 3,5 |
g | 3 | 3.2 | 3.6 | 4.2 |
r1 | 8.9 | 10.5 | 13.3 | 15.8 |
Weight 1000 pcs. Bolt kg | ||||
l | M8 | M10 | M12 | M16 |
30 | 15,3 | |||
35 | 17,1 | 27,3 | ||
40 | 19 | 30,2 | 49 | |
45 | 20,8 | 33,2 | 53,3 | 98 |
50 | 22,7 | 36,1 | 57,5 | 105 |
55 | 24,6 | 38,9 | 61,7 | 113 |
60 | 26,5 | 41,8 | 65,9 | 122 |
65 | 28,4 | 44,7 | 70,1 | 129 |
70 | 30,3 | 47,6 | 74,3 | 136 |
80 | 34 | 53,4 | 82,7 | 151 |
90 | 59,3 | 91 | 165 | |
100 | 65,1 | 99 | 180 | |
110 | 107 | 195 | ||
120 | 115 | 210 | ||
130 | 226 | |||
140 | 241 | |||
150 | 257 | |||
160 | 273 |
Process flow
Cold forging
Annealing treatment(if need) ➨ wiredrawing ➨ clod forging ➨ thread rolling ➨make heat treatment ➨ Finish ➨ Packing
Materials and Chemical compstition
1045
CHEMICAL COMPOSI % | |||||||
C | Si | Mn | P | S | Cr | Ni | Cu |
0.45 | 0.23 | 0.58 | 0.014 | 0.006 | 0.057 | 0.008 | 0.016 |
40CR
CHEMICAL COMPOSI % | |||||||
C | Si | Mn | P | S | Cr | Ni | Cu |
0.4 | 0.21 | 0.54 | 0.015 | 0.008 | 0.95 | 0.02 | 0.02 |
35CRMO
CHEMICAL COMPOSI % | ||||||||
C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
0.35 | 0.22 | 0.59 | 0.01 | 0.003 | 0.93 | 0.01 | 0.01 | 0.21 |
42CRMO
CHEMICAL COMPOSI % | ||||||||
C | Si | Mn | P | S | Cr | Ni | Cu | Mo |
0.42 | 0.27 | 0.92 | 0.013 | 0.004 | 1.01 | 0.03 | 0.04 | 0.2 |
Finish
PLAIN ZP YZP BLACK HDG DACROMET GEOMET CHROME NICKEL AND SO ON
PACKING
QBH BULK
20-25KG/CTN,36CTNS/PALLET
20-30KG/BAGS,36BAGS/PALLET
ONE TON/BOXES
50KG/ IRON DRUM,12 IRON DRUMS/PALLET
QBH SMALL PACKING
Packing in small boxes according to customer’s requirements
Packing in plastic bag according to customer’s requirements
QBH PALLET TYPE
SOLID WOOD FUMIGATION PALLET
EURO Pallet
THREE SPLINT PALLET
WOODEN BOX
