Brand Name: | ZON PACK |
Model Number: | ZH-CL |
Certification: | CE Certification |
Place of Origin: | China |
MOQ: | 1 Set |
Price: | 750-1100USD per set |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 299 Sets per month |
Delivery Time: | 20-25 Working days |
Packaging Details: | Wooden case |
Name: | small incline conveyor |
Conveyor width: | 295mm |
Conveyor height: | 0.9-1.2m |
Conveyor speed: | 20m/min |
Power: | 90W |
Belt material: | PP plate or PU/PVC |
Frame Material: | SUS304 |
Control: | VFD |

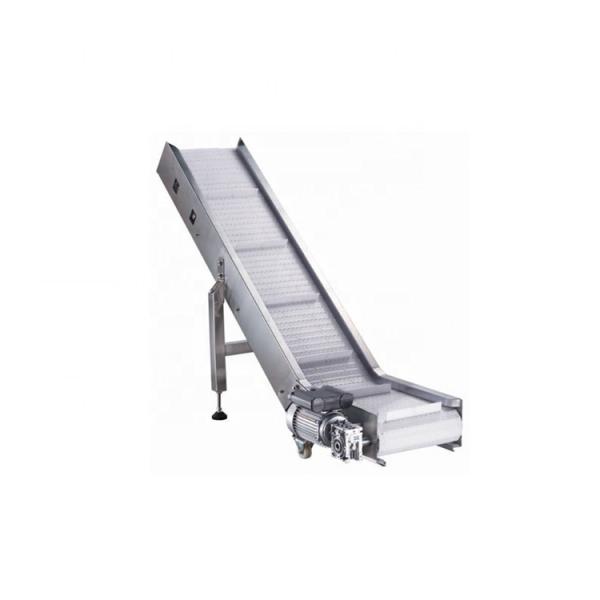

Factory price 90w motor finished bag output inclined conveyor in packing line
Technical Feature
1. Its cover is made of 304 stainless steel, and inside is by the plastic for the food, safe and clean.
2. There are 2 types of plastic board: one type is the joined type of belt, another one is the PU belt.
3. Its angle, height, speed can be made according to your requirement.
4. Power and voltage: 110V or 220-230V,0.12KW 50/60HZ
Technical Specification | |||
Model | ZH-CL | ||
Conveyor width | 295mm | ||
Conveyor height | 0.9-1.2m | ||
Conveyor speed | 20m/min | ||
Frame Material | 304SS | ||
Power | 90W /220V | ||
Weight | 50kg | ||
Options | chain plate,belt | ||
Warranty | 1 year |

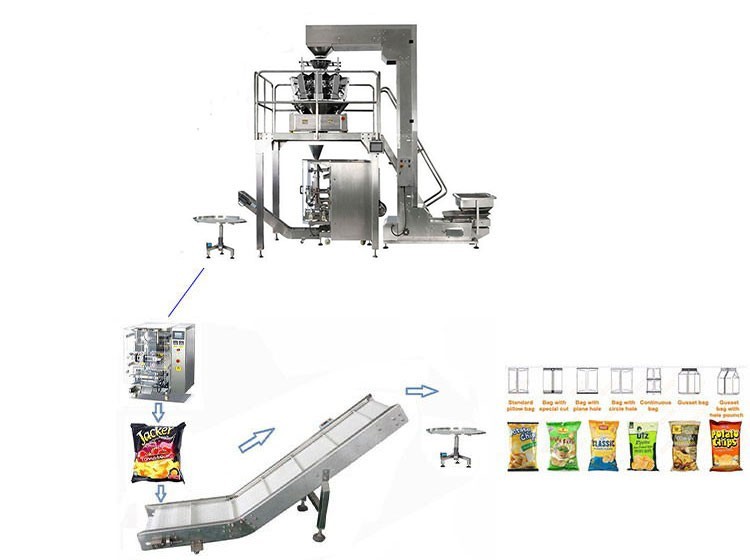

Machine Application:
Lifting the ready bagged products from the packing machine to boxes, metal detector,
check weigher or packing table or other belt

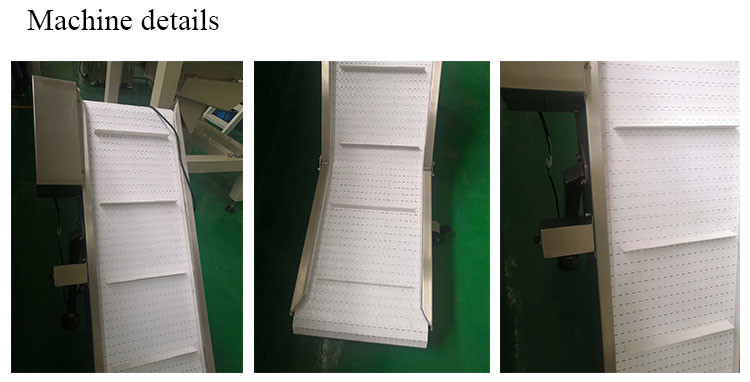

Machine Details:

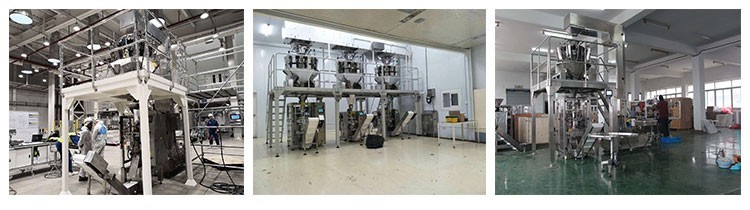

Case Shows
![]() |
