28t Block Forklift

Categories Forklift Loader
Brand Name: SLD
Model Number: FDM766T-28
Certification: ISO, CE
Place of Origin: China
MOQ: 1 unit
Payment Terms: T/T, L/C
Supply Ability: 100 units per month
Delivery Time: 25 working days
Packaging Details: 40HQ containers
Rated load: 28000kgs
Max. lifting height: 2530mm
Operating weight: 30000kgs
Load center: 600mm

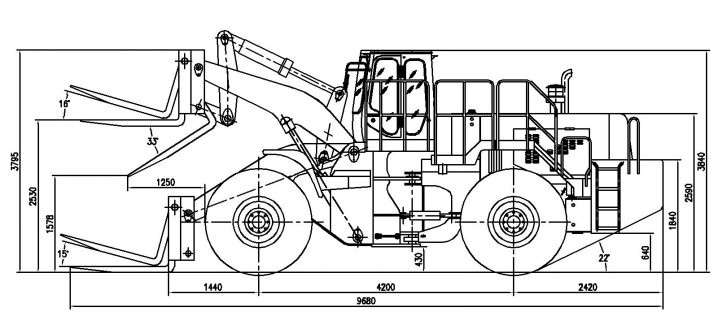

Overall dimension(L×W×H): 9680×3120×3840
Engine: Weichai
Engine power: 175kw
Wheelbase: 4200±15
Color: Yellow
New or Used: New
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

28t Block Forklift

Rated Load 28000kgs Forklift Loader Lift 28 Tons Block In Stone Logstic Yard


FDM766T-28 fork loading truck

  • The loader with double rocker arm connecting rod can lift materials up to more than 32 tons.
  • Powerful turbocharged engine with 6-cylinder 4-stroke for excellent performance and high torque reserve is low-oil consumption.
  • Beautiful streamlined appearance .Pressurized cabin with optional air conditioning and heating system provides comfortable operation environment .
  • Four-wheel dual pipelines disc brake system ensures safe and reliable operation.
  • Double-turbo hydraulic torque converter facilitates the gear shifting for easier operation.
  • Various working equipment and shovel can meet the requirements of different customers.
  • Fork or bucket can be matched .

Optional equipment

  • Warm air blower or heat and cool air-conditioner

ItemsSpecificationUnit
Engine power175kw/h
Overall dimension(L×W×H)9680×3120×3840mm
Max. lifting height2530mm
Operating weight30000kg
Load center distance600mm
Maximum load30000(≤200mm)kg
Fork sizeL×W×H1600X250X110mm
Distance of fork250-1330mm
Rated loading capacity28000kg
Turning angle±30 °
Max. Grade Ability≥21°
Unloading angle33°
Wheel base4200±15mm
Wheel tread2390mm
Min. Ground clearance430mm
Fuel tank capacity240L
Hydraulic fuel tank capacity350L
Specification of tyre4×26.5-25-44PR
