| Categories | Magnetic Contactor |
|---|---|
| Brand Name: | SONTUOEC, WZSTEC |
| Model Number: | S-K |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | Negotiable |
| Supply Ability: | 5000pcs/day |
| Delivery Time: | 15days |
| Packaging Details: | 50PCS/CTN |
| Coil Voltage: | 24,48,415,440V |
| Standard: | IEC 60947-1 |
| Items name: | magnetic contactor |
| Color: | Black |
| Credential: | CE |

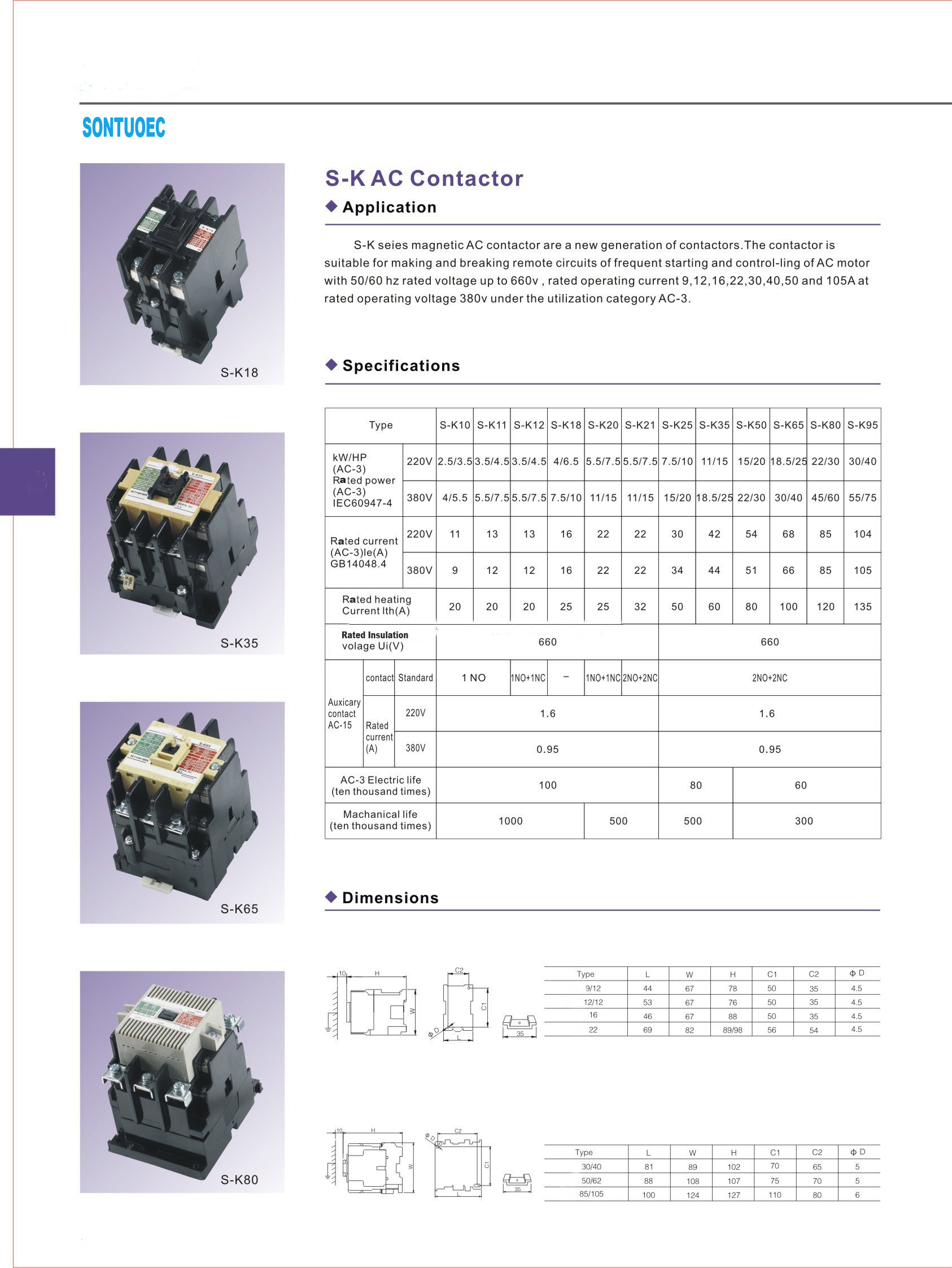

STSK(S-K )series magnetic AC Contactors are a new generation of
contactors. The contactor is suitable for
making and breaking remote circuits or frequent staring and
controlling of AC motor with 50/60Hz rared
Voltage up to 660V,rated operating current9,12,16,22,30,40,50and
105A at rated operating voltage 380V
under the utilization category AC-3.
| Model | Dimension | Mounting | Din-rail | ||||
| Amax | Bmax | Cmax | a | b | φ | ||
| STSK-9(S-K10)STSK-12(S-K11) | 45 | 68 | 80 | 32±0.5 | 50±0.5 | 4.5 | 35mm |
| STSK-12(S-K12) | 53.5 | 68 | 80 | 35±0.5 | 52±0.5 | 4.5 | |
| STSK-16(S-K18) | 46 | 68 | 88 | 35±0.5 | 50±0.5 | 4.5 | |
| STSK-22(S-K20) | 69 | 82 | 89 | 54±0.5 | 60±0.5 | 4.8 | |
| STSK-22(S-K21) | 69 | 82 | 97 | 54±0.5 | 60±0.5 | 4.8 | |
| STSK-30(S-K25)STSK-40(S-K35) | 82 | 90 | 104 | 65±0.6 | 71±0.6 | 4.8 | |
| STSK-50(S-K50)STSK-62(S-K65) | 90 | 108 | 108 | 70±0.6 | 75±0.6 | 5 | |
| STSK-85(S-K80)STSK-105(S-K95) | 102 | 126 | 129 | 80±0.6 | 110±0.7 | 6 | |
|
