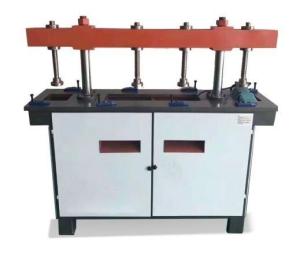

A-373 Double Column Hydraulic Punching Machine
Machine features:
It is used for the aluminum and thermal material hole punching with moulds. Adopts double column guiding helps to punching stably, efficiently. Special design for the moulds holder helps to change the moulds easily and safely.
Machine Parameters | ||
Model | A-373 Single cylinder double column | A-373D Double cylinders double column |
Punching station | 12pcs | 12pcs |
Max. height of products | 280mm | 280mm |
Min. height of products | 140mm | 140mm |
Max. punching feeding | 60mm | 60mm |
Diameter of cylinder | 80mm | 80mm |
Volume of oil tank | 40L | 55L |
Motor power | 2.2kW | 5.5kW |
Max. punching thrust | 8000Kg | 16000Kg |
Machine voltage | 380VAC/50HZ | 380VAC/50HZ |
Machine dimension (LXWXH) | 1550X830X1140mm | 1550X830X1140mm |
Machine weight | 1000kg | 1200kg |
![]() |
