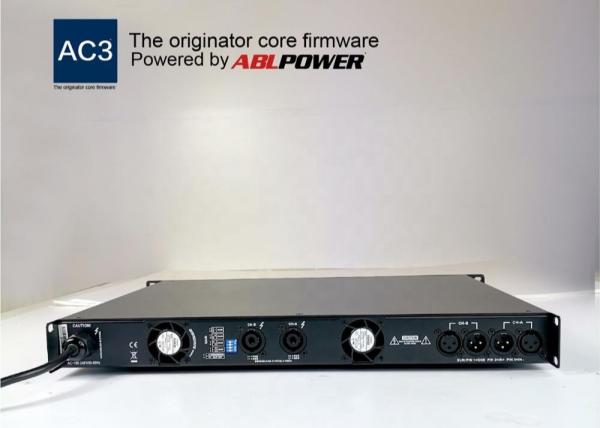

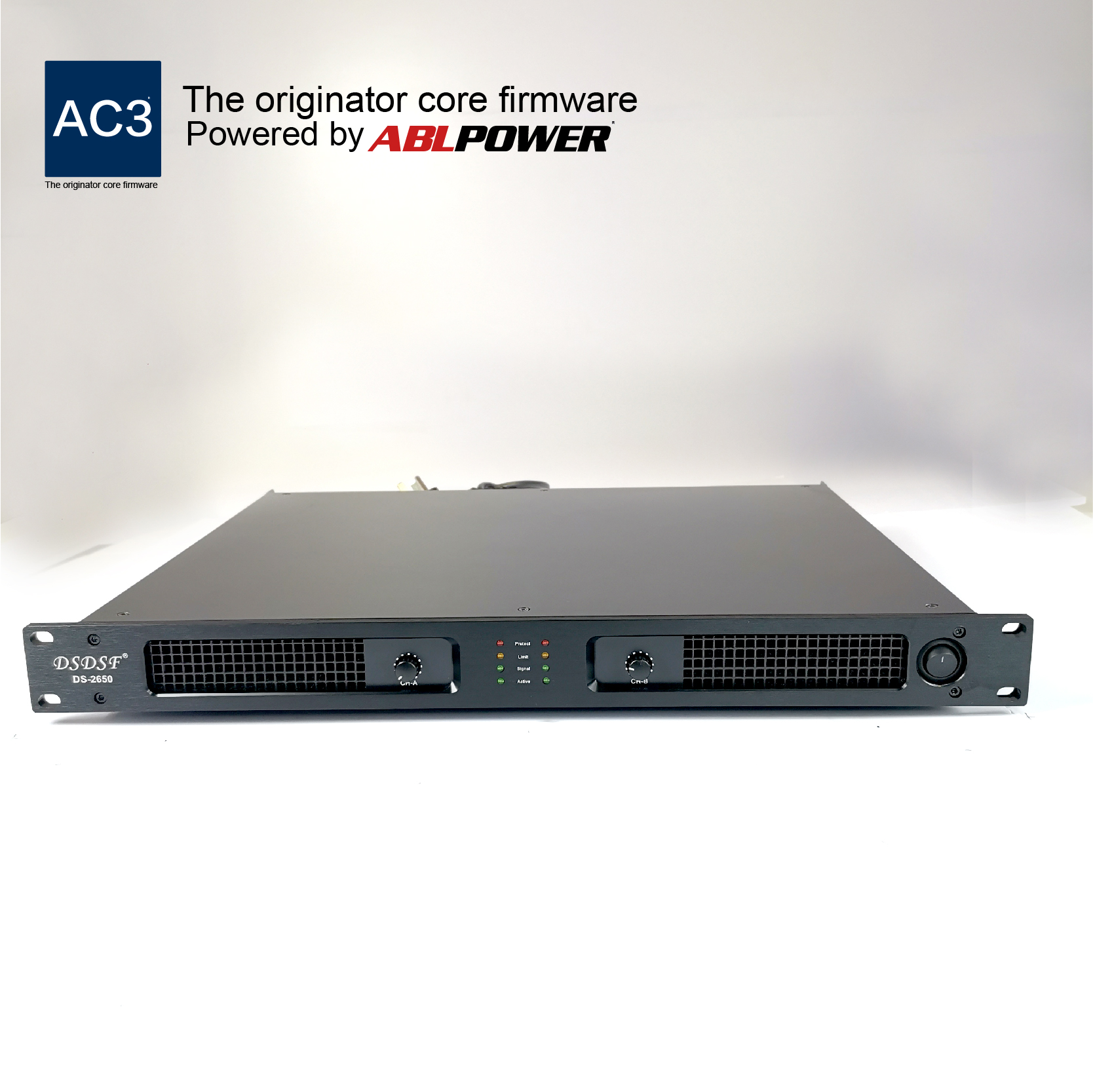

5kg Bar Hifi Digital 1U Powerful Amplifier For Speakers

8 Ω/stereo: 2 x 250 w

4 Ω/stereo: 2 x 425 w

2 Ω/stereo: 2 x 725 w

16 Ω/bridge: 500 w

8 Ω/bridge: 850 w

4 Ω/bridge: 1450 w

stereo, single channel, bridge three working modes

sensitivity 1Vrms, gain 32dB, 26dB optional

male Canon input port

Speakon output jack

RMS output voltage (THD=1%,1kHz) : 44.7v

voltage gain: 33.0db

rising slope (1kHz, bypass low-pass filter) : 50V/us

input sensitivity (rated output power,1kHz) : 1VrmsPieces frequency response (10% of the rated power output, 8 Ω, 20 hz - 20 kHz) : + / - 0.2 dB

Input impedance: 20 k Ω (balance), 10 k Ω (non equilibrium)

Damping coefficient of the mixer (8 Ω, 20 Hz - 100 Hz) : p. 300

SNR (A mark, 20hz-20khz) : ≥105dB

power requirements: 90-260vac, 50/60hz

protection function: overload protection, overheat protection, temperature power control, output dc protectionSize (W×H×D) : 483×44×323mm

net weight: 5.0kg

Question 1: What kind of packing can you provide?
Answer:We will use carton packaging for power timing device products, color neutral without any product LOGO. Distribution cabinet products are packed in airmail boxes or cartons. Of course, if you have special requirements, we can also pack the products according to your requirements, the cost is calculated separately.
Question 2:What are your payment terms?
Answer:T/T is 30% of the deposit, and pay 70% of the balance before delivery. Before you pay the balance, we will show you the pictures of the products and packaging.
Question 3:How long will it take to finish production?
Answer:Generally speaking, distribution cabinet products need 5 to 10 days after receiving the advance payment. The exact delivery time depends on the items and quantity of the order. The power timing device will be produced in 3-10 days, we will negotiate the details.
Question 4:Can we produce according to the sample?
Answer:Yes, our company supports customization, so we can produce through your samples or technical drawings. We also have our own technical designers.
Question 5:Do you accept custom orders?
Answer:You can. Our company is an OEM manufacturer, so we welcome custom orders. We will customize it according to your requirements.
Question 6:What is our company's advantage over other companies?
Answer:Our company has always been a audio industry power products manufacturers, including:
1. The production of various types of portable distribution box; 2. Power timing device;
3. Specialized in producing peripheral products of power supply;
4.HIFI power cable.
