| Categories | Wire Wound Filter Cartridge |
|---|---|
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Place of Origin: | Langfang City, Hebei Province, China |
| MOQ: | 100 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Delivery Time: | 24 hours |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Series name: | Wire Wound Filter Cartridge |
| Skeleton: | PP |
| the inside diameter of: | Ø28 Ø30 |
| Length: | 10″20″30″40″ |
| Filter material: | PP |
| Precision: | 1-100μm |
| Outer diameter: | Ø60 Ø63 |
| Sealing material: | Silica gel, Oil resistant nitrile, fluorine rubber, |
| Operating temperature: | ≤80℃ |
| Pressure drop (Mpa): | 0.2 |

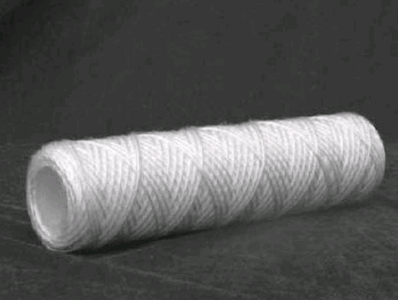

Fiber Glass String Wound Filter Cartridge
Product Description:
The various water filter cartridges produced by our company have high filtration accuracy, small pressure difference, large flow rate, large dirt holding capacity and long service life; the filter pore size is small in size and large in size, and has good deep filtration effect; the filter cartridge is made of different materials Ensure the filtration requirements of various liquids and achieve superior filtration effects.
Product parameter:
| Series name | Outer diameter | inside diameter | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
PP melt blown filter element | Ø60 Ø63 | Ø28 Ø30 | 10″20″30″40″ | PP | PP | 1-100μm | ≤80℃ | 0.2 | |
| Microporous pleated filter element | Ø68 | Ø28 Ø30 | 10″20″30″40″ | PP, PP+ PTFE film, PP+PES film, | PP, stainless steel | 0.1-50μm | Silicone, oil-resistant nitrile, fluorine rubber, | ≤80℃ | 1.25 |
PALL high flow folding filter element | Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 | |
3M high flow filter element | Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 | |
Parker high flow folding filter | Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 | |
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours | |||||||||
Pictures:
Mainly used in: power industry-reverse osmosis backwash filtration, food and beverage industry-reverse osmosis security filtration, iron and steel metallurgy industry-ultrafiltration cleaning / backwash filtration, electronics industry-wastewater treatment, coal chemical industry-medicine (process water) and other industries .
FAQ:
1. Q: Are you manufacturer ?
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?
A: Our products are Mirco pleated filter cartridges,high flow filter cartridges,depth-stack filter cartridges,pleated filter cartridges,carbon filter cartridges,melt blown filter cartridges,string wound filter cartridge,and so on.
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value not big,but the courier charge will be on your side.
|
