GL1x40KN 4T Hydraulic Tensioner Transmission Wire Stringing Equipment

GL1x40KN 4T Hydraulic Tensioner Transmission Wire Stringing Equipment

4T Wire Stringing Equipment Performance :

Max intermittent tension 45kN

Max continuous tension 40kN

Speed at max pull 2.5km/h

Max speed 5km/h

Tension at max speed 20kN

Max reverse pulling force 35kN

4T Wire Stringing Equipment Engine :

Diesel 77kw(103hp)

Cooling system water

Electrical system 24V

4T Wire Stringing Equipment Characteristics :

Bull-wheel diameter 1300mm

Max conductor diameter 40mm

Max Optical fiber cable diameter 21mm

Groove width 55mm

Groove number 5

Total weight 3430kg

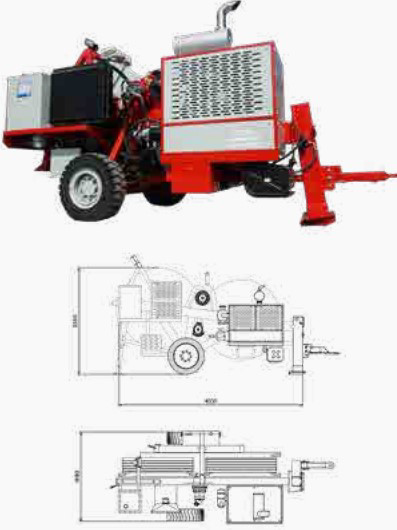

Overall dimension 4000×2000×2300mm

4T Wire Stringing Equipment Main Configuration :

Engine Cummins

Hydraulic pump GermanRexroth/Dnish Danfoss

Main motor German Rexroth/French Leduc

Speed reducer German Rexrothn

Hydraulic meter German WIKA

Operating handle German Rexroth

Configuration:

·Hydraulic dynamometers

·Hydraulic oil cooling system

·Mechanical meter counters

·Grounding connection point

·Hydraulic power pack to control drum stands with hydraulic motor

Hydraulic Transmission :

·The machine can realize step less speed

·The machine is provided with tension presetting system

Additional Devices :

·Lighting system for the trailer

·Air brake system for the trailer (extra charge)

·Hydraulic conductor clamps for drum change operations (extra charge)

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h

·Digital speed and meter counter

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
