Home > Mining Machinery >

BBQ Extruding Hexagonal Charcoal Briquette Machine

Categories Charcoal Extruder Machine
Brand Name: SANJIN
Model Number: MBJ140
Certification: CE ISO
Place of Origin: Henan, China
MOQ: 1 Set/Sets
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set/Sets per Month
Delivery Time: 3-7 days
Packaging Details: wooden box
Dimension(L*W*H): 1.8*0.9*0.9m
Raw material: coal dust,charcoal powder etc
briquette shape: round, hexagon, square, customized
capacity: 1-3t/h
Application: Barbecue (BBQ), home heating, Cooking
Diameter Of Final Products: 30-60mm
machine name: charcoal dust extruder machine
power: 11kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

BBQ Extruding Hexagonal Charcoal Briquette Machine

Low Consumption Charcoal Briquette Making Machine

Hexagonal Charcoal Briquette Machine Coal Bar Extruder Machine For Barbecue

Low Consumption Charcoal Briquette Making Machine Technical parameters:

TypeMBJ-140MBJ-180
PowerA11KW18.5KW
Capacity1-2T/H2-3T/H
Spindle speed46-60(r/min)38-50(r/min)
Diameter of fianl product30-40mm30-60mm
Weight700kg900kg
Product Description of Low Consumption Charcoal Briquette Making Machine

Charcoal briquette extruder is used for compacting charcoal fines (coal fines) into briquettes. The resulting briquettes can be different shapes, such as hexagonal shape, etc. Normally, the briquettes are used as clean fuels, for heating, cooking, barbecue, etc.

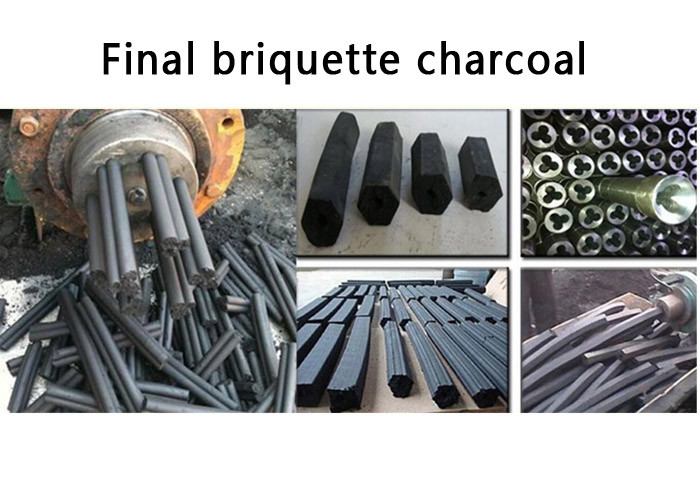

Detailed Images of Low Consumption Charcoal Briquette Making Machine

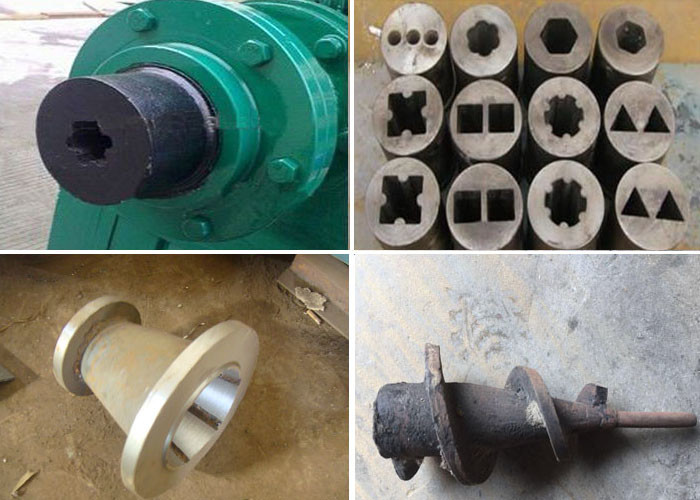

different mold of Low Consumption Charcoal Briquette Making Machine:

The raw material of Low Consumption Charcoal Briquette Making Machine

The raw material can be coal, charcoal, coke etc. In addition, if the raw material is biomass with lignin, such as coconut shell, rice husk, sawdust etc. E.P company can supply different carbonization equipment to help customer carbonize the raw material into charcoal for briquetting.

Low Consumption Charcoal Briquette Making Machine principle of work:

Charcoal extruder , which can make the powder of charcoal to different charcoal blocks shapes.

The working principle of charcoal extruder is: The motor transmits power to transmission through the V-belt. At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward charcoal through forming die to produce the ideal high-pressure charcoal-stick.

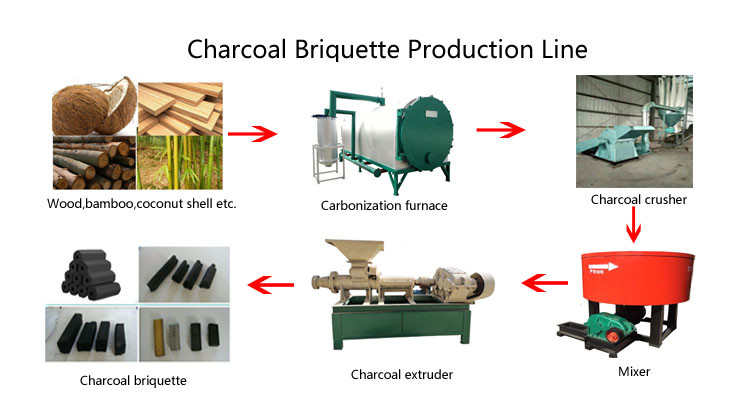

Charcoal Briquetting: Charcoal Lumb—Crushing—Mixing—Briquetting

Through the high extruding pressure during the pressing process, the raw material charcoal powder and binder will be pressed into solid charcoal briquettes. The basic processes are list as below. Not all these processes are necessary, it all depends on the situation of your raw materials. Please don’t hesitate o contact with us if you need any suggestion on charcoal briquettes production.

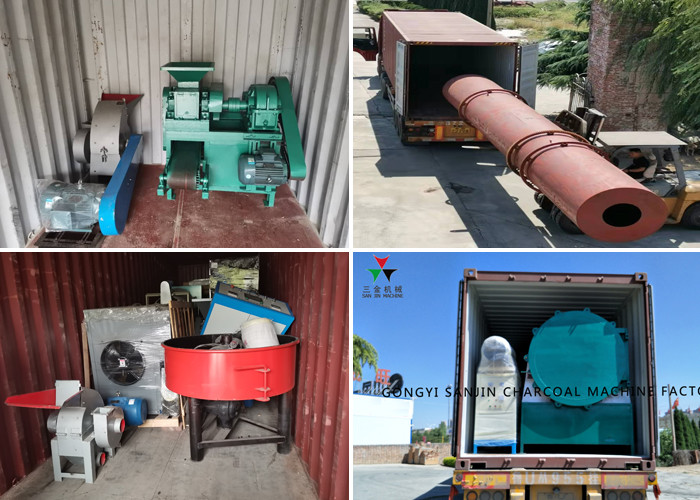

About shipping

1, Small size equipment is packed by wooden case which delivery by LCL shipping .

2, Big size equipment is nude packing which delivery by full container load,small parts will be packed into wooden case.
3, Special packing requirement as customers requirement .Small sawdust briquette coal making machine.

Specifications:

1. Supply to USA,Europe,and Australian
2. Material: rice husk,sawdust,Peanut shells, bagasse
3. Professional charcoal machine supplier
4. Energy saving


Cheap BBQ Extruding Hexagonal Charcoal Briquette Machine for sale
