Categories | Wire Spiral Hydraulic Hose |
---|---|
Brand Name: | Yeli |
Place of Origin: | China |
MOQ: | 360Meter |
Price: | negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 80,000 meter per month |
Delivery Time: | 20-30 days |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Reinforcement: | Four layers of alternating direction steel wire spiral |
Material: | Synthetic Rubber |
Color: | Black |
Size: | all size |
Cover: | One layer of oil and weather resistant synthetic rubber |
Oem service: | Accept |
Item: | 4 Steel Wire Reinforcement Hydraulic Hose 4sh factory price |

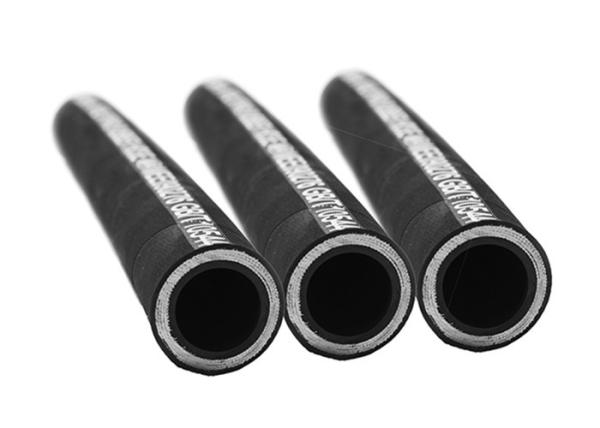

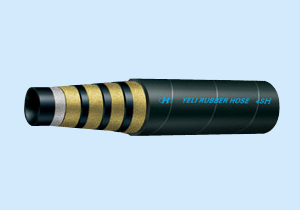

Super High Pressure Custom Hydraulic Hoses 4SP/ 4SH / R12
Tube : Oil resistant synthetic rubber
Reinforcement : four high tensile steel wire spiral layers
Cover : abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
19 | 3/4 | 19.0 | 28.4 | 32.0 | 42.0 | 6000 | 168.0 | 24000 | 280 | 1.61 | 20 to 40 |
25 | 1 | 25.4 | 35.2 | 38.6 | 38.0 | 5500 | 152.0 | 22000 | 340 | 2.00 | 20 to 40 |
32 | 1 1/4 | 31.8 | 41.9 | 45.8 | 32.5 | 4700 | 130.0 | 18800 | 460 | 2.64 | 20 to 40 |
38 | 1 1/2 | 38.1 | 48.8 | 53.3 | 29.0 | 4200 | 116.0 | 16800 | 560 | 3.36 | 20 to 40 |
51 | 2 | 50.8 | 63.2 | 68.1 | 25.0 | 3600 | 100.0 | 14400 | 700 | 4.98 | 20 to 40 |
Why us ?
1. We consistent good quality with reasonable price.
2. Stable production capacity(Our output each month can be 800,000
meters for hoses.)
3. Delivery in time.
4. Good quality control.
![]() |
