1200A Pulse Current Transducer Response Time 2us

NACA.XXXQ3-S6 / VA Current Transducers

Product Details

product manual

NACA XXXQ3-S6/VA series triple current sensor is suitable for accurate measurement of AC, DC and pulse current isolation. The primary side and the secondary side are completely insulated during measurement.

Performance requirements
parameter name	symbol	unit	parameter			condition
			Minimum	Typical value	Max
Electrical parameters
Maximum range	IP	A	800A~1200A			For more details, please contact CRRC
Storage temperature	TS	°C	-40		125
voltage	UC	V	4.75	5	5.25
Output voltage (linear)	Vout	V	Vout=(Uc/5)·(V0+G·Ip)			@UC
Sensitivity	G	mV/A	2000/Ip			@UC=5V
Zero output	VO	V		2.5		@UC=5V
Current consumption	IC	mA		39	45	@ UC=5V,No load on Vout
Load Resistance	RL	KΩ	4.7	10
Load capacitance	CL	nF			5
Output internal resistance	ROUT	Ω	2	4	8	DC
Performance parameter
Zero output error	X0	%	-1		1	@TA=25℃,@UC=5V
			-1.5		1.5	@-40℃＜TA＜125℃,@UC=5V
Sensitivity error	εG	%		±1		@TA=25℃,@UC=5V
				±2		@-40℃＜TA＜125℃,@UC=5V
Electrical zero offset	FLY	mV		±4
Magnetic zero offset	FROM	mV		±3
Proportional error	.R	%		0.5
Linearity error	εL	%	-1		1	of full range
Response time	tr	μs		2
bandwidth	BW	kHz	40			@ -3dB
Phase difference	∆φ	°	-4			@DC to 1kHz

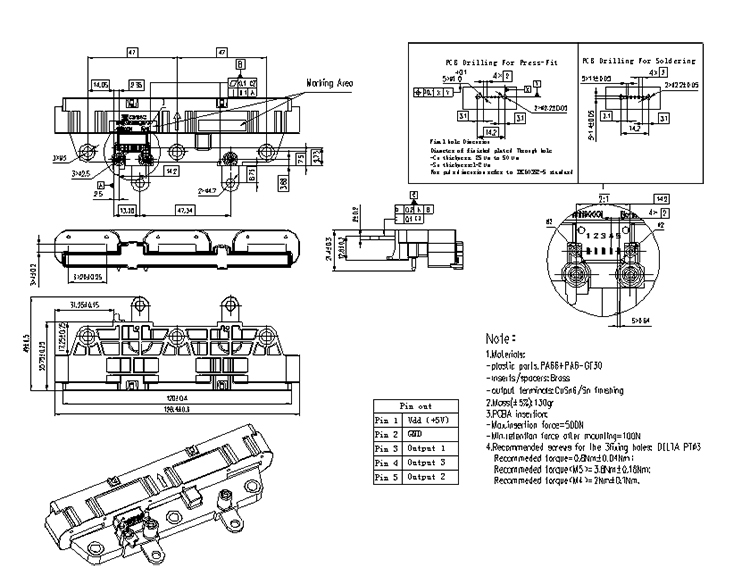

Dimensions

Series size
