Categories | Shoe Testing Machine |
---|---|
Brand Name: | GESTER |
Model Number: | GT-KC01-2 |
Certification: | CE, ISO |
Place of Origin: | China |
MOQ: | 1 set |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Delivery Time: | 10-30days |
Packaging Details: | wooden packaging |
Power: | 220V 50/60Hz |
Usage: | color fastness testing of leather |
Warranty: | 1 year |

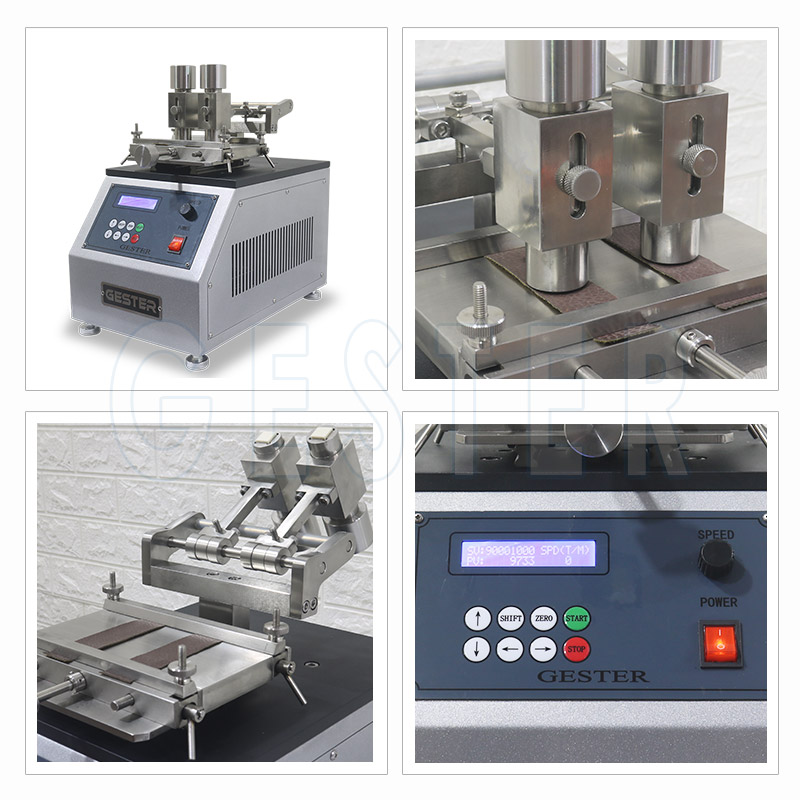

Product name: | IULTCS & Veslic Leather Abrasion Tester |
Application: | leather, plastic and textile |
Color: | silver |
Quality: | High,good |
Company Info. |
Gester International Co., Ltd |
View Contact Details |
Product List |
Application: This Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. It can be used for dry abrasion testing and wet abrasion test. Standards: DIN 4843 , ISO 11640, SATRA PM 173, QB/T 2537, GB/T 20991 section 7.3 , EN ISO20344 section 7.3 , AS/NZS 2210.2 section7.3, ISO 17700 Method A |
Model | GT-KC01-2 |
Position | 2 |
Area of testing head | 15mm x 15mm |
Movement speed | 40 ± 2 times / min. |
Rubbing stroke | 35~40 mm |
Rubbing finger mass | 500g |
Additional weight mass | 500g |
Fixtures distance | 80mm |
Sample size | 120x20mm |
Tension extension range of sample | 0 ~ 20% |
Power supply | 1∮AC 220V 50/60HZ |
Dimensions (L x W x H) | 490x420x550mm |
Weight | 40kg |
Standards | DIN 4843 , ISO 11640, SATRA PM 173, QB/T 2537, GB/T 20991 section 7.3 , EN ISO20344 section 7.3 , AS/NZS 2210.2 section7.3, ISO 17700 Method A |
Standards accessories | 1pc | 500g Weights |
1pc | Power line | |
Optional accessories | Optional | Standard wool pads |
Optional | GT-C48 Pneumatic Sample Press (Cutter: 120x20mm) | |
Optional | Gray Scale for color change | |
Optional | Gray Scale for staining |
![]() |
