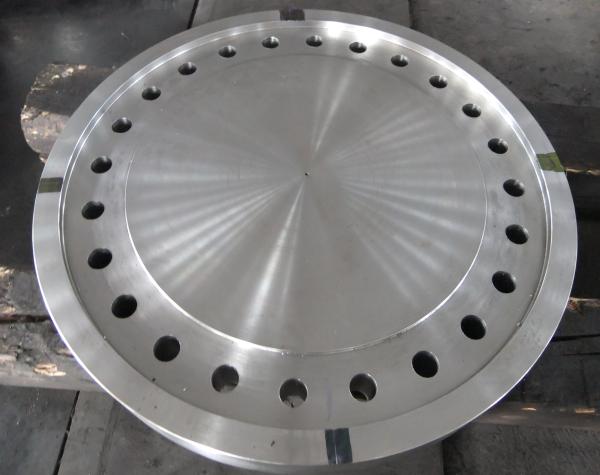

Ss316 Out diameter 2500mm Final Machined Stainless Steel Discs A105 Steel Pipesheet

Forging ASTM A105 2500mm Finish Machined Stainless Steel Tube Sheet

Detailed Description:
1) Product Name: Forged steel tubesheet, Forging pipesheet
2) Material: 4130, 4140, 4340, UNS440, 34CrNiMo6, 18CrNiMo5, 30CrMo, 35CrMo, 60CrMoV etc.
3) Max weight: 20ton.
4) MOQ: 1 pc
5) FOB Port: Shanghai Port, China.
6) Delivery Time: 60ton in 30 days.
7) Delivery Condition: Rough Machined, Heat Treated, Fine Machined + EN10204: 3.1B
8) Payment: 30% T/T in advance, Balanced C. A. D.; Or 100% L/C.

Mill Frequently Used Steel Materials:
1) Forged Shaft: 42CrMo4V, 34CrNiMo6; Forged Steel Flange: S355NL, C22, 16Mn, 20Mn, 42CrMo, F304.
2) Forged Pipe Fittings: SA182 Gr. F1, Gr. F5, Gr. F11 CL2, Gr. F12 CL2, Gr. F22 CL3, SA350 Gr. LF1, Gr. LF2, Gr. LF3.
3) Pressure Vessel Forgings: SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, F304, F316, 17-4pH.
4) Shaft Related Forgings: 25CrMo4, 42CrMo4, 40CrNiMo, 34CrNi3Mo, 25Cr2Ni4MOV, 18CrNiMo5, 30CrMo, 4130, 4140.
5) Gear Related Forgings: 35CrMo, 34CrMo4, 4137, 42CrMo, 4140, SCM440, 20CrMnMo, 40CrNiMo.

Heat Treatment:Normalizing,Quenching+ Tempering

Tensile Strengthd ≥ 485 Mpa

Yield Strengthd ≥ 250 Mpa

Elongation Rate ≥ 22%

Reduction Of Area ≥ 22%

Hardness ≤ 187HB

Largest OD:5000mm

Largest Weight:15000kg

Surface Finish 3.2um Ra Or As Required.

Forging Reduction Min:3.1 Or As Required

ASTM/ASME Standard A105

The main manufacturing equipments

Competitive Advantage

High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection; Quality full service.

Test instruments

Certfiticates List:

Packing and Delievry:

Jiangyin Golden Machinery Equipment Co , Ltd , located in China´s most dynamic Yangtze River Delta area - Jiangyin City , 150 kilometers away from Shanghai and convenient transportation . The company covers an area of 10,000 square meters , have more than one standardized workshop . Specializing in the production of medium and small forgings and flanges , with advanced production equipment and production technology , set the rule of practice , forging heat treatment , rough precision machined for one , can meet the requirements of our customers : products suitable for power petroleum , chemical , metallurgy , machinery , light industry , shipbuilding and other industries . And with a variety of advanced non-destructive flaw detection , physical and chemical testing , mechanical properties , metallographic testing equipment and facilities The company currently employs 120 , including 18 professional and technical staff and management . The company actively expand the international market , to cooperate with international well-known enterprises from multiple channels has several companies to cooperate with us Rich Reiter , Sweden , the French company Alstom , Finland Konecranes , precision instruments , Italy Danieli the company , General Electric company to establish business contacts , and has been the approval and praise of customers

Golden good faith for the survival of the enterprise , and was sincere , letter to Germany . Sincerely hope that good cooperation with home and abroad . Our company in forging field is professional We have skilled product design team . Our goal is not just provide product , but also provide a complete solution including product design , tooling fabrication and service for our customers to achieve their requirement

We stick to the principle of " quality first , service first . continuous improvement and innovation to meet the customers " for the management and " zero defect , zero complaints " as the quality objective To perfect our service , we provide the products with the best quality at the reasonable price . We sincerely hope establishing long and friendly business relation with clients from all over the world
