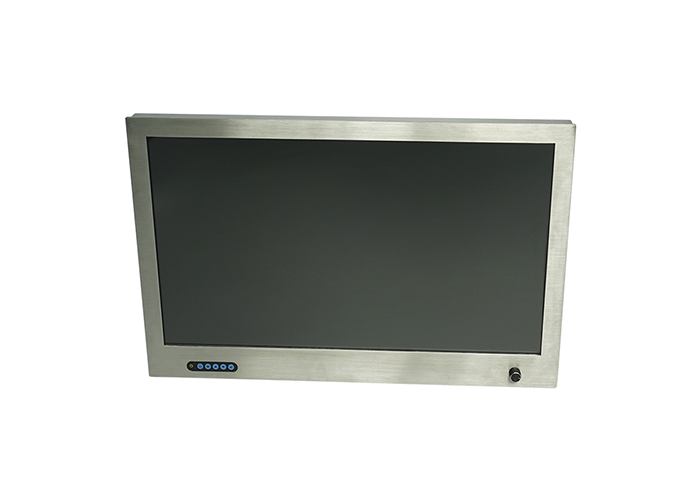

Stainless Steel Enclosure 24 Inch Front IP65 Waterproof Monitor
With Brightness Control Button
Features
1. Front panel IP65 waterproof, robust and durable stainless steel
enclosure.
2. FHD 1920*1080, high brightness 1000 nits, sunlight readable.
Cover with 3MM tempered glass for vandalproof.
3. With a dimmer on the bezel to adjust the brightness, can adjust
the brightness from 100% to 0.
4. High performance industrial grade mainboard, 7x24 continuous
operation.

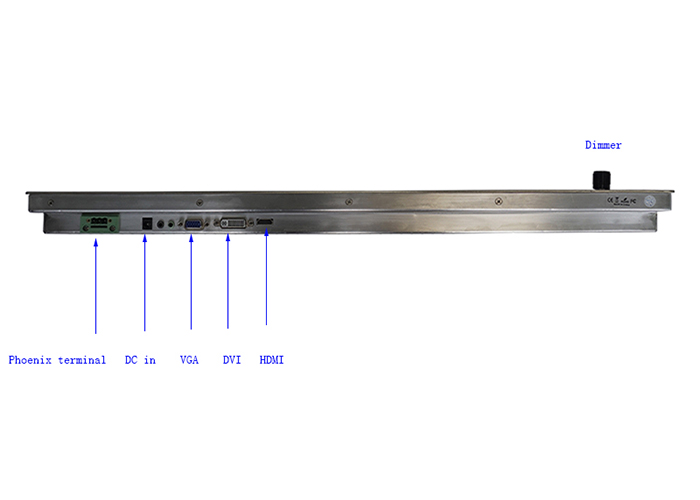

5. VGA+HDMI+DVI interfaces, 12V Phoenix terminal.
6. Support wall mounting, embedded mounting, desk stand mouting
etc.
Specification
Model:SL24 | |
LCD panel | |
Panel size | 24" |
Resolution | 1920*1080 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits, sunlight readable |
Brightness control | Dimmer |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Singal Ports | |
VGA | 1xVGA |
HDMI | 1xHDMI |
DVI | 1xDVI |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
Power Supply | |
External Power Supply | AC 100-240V |
Working voltage | DC 12V |
Power consumption | <40 W |
Enclosure | |
Material | Stainless steel case |
Color | Silver |
VESA mounting | 100x100 mm |
IP grade | Front panel IP65 waterproof |
Operating Environment | |
Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
Packing Details | |
Net weight | 9 kg |
Gross weight | 11.5 kg |
Product Dimension | 58.6×31.98×3.7 cm |
Packing size | 69x50x19 cm |

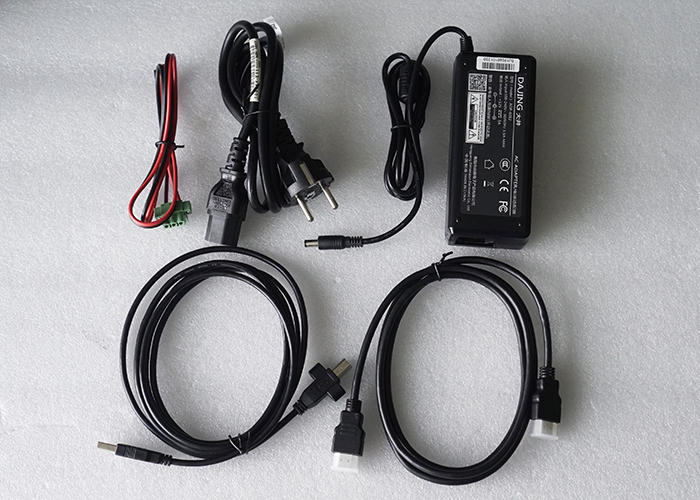

Accessories | Power adapter, power cord, HDMI cable, 12V Phoenix terminal cable, embedded screws |
Other | |
Mounting (options) | 1) Embedded screws |
2) Wall brackets for wall-mounting, VESA 100×100 mm | |
3) Stable metal holder to support the monitor | |
Warranty | 1 year warranty |
Application
Metro Station
Pharmaceutical
Boat Navigation
Marinetime use
Soil testing machine

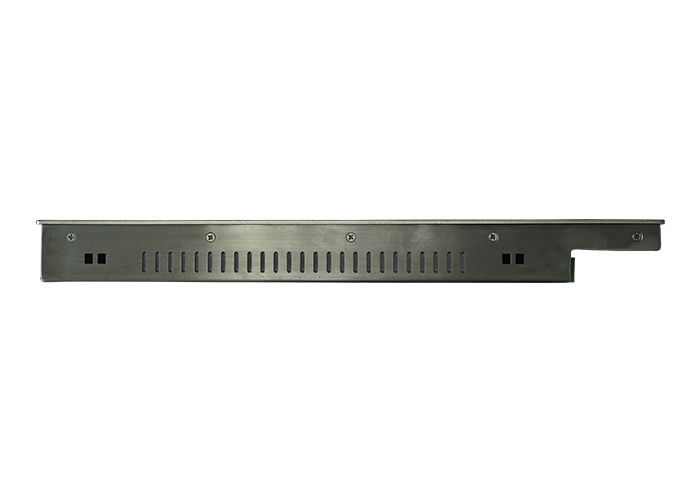

Pictures
![]() |
