| Categories | ERW Steel Pipe |
|---|---|
| Brand Name: | Shengtian |
| Model Number: | ERW steel pipe002 |
| Certification: | BV, SGS, TUV |
| Place of Origin: | China |
| MOQ: | 1 Ton |
| Price: | 1 Ton US $562/ Ton；>5 Tons US $496/ Ton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2 Million Ton/Year |
| Delivery Time: | 10-15 work days |
| Packaging Details: | Suitable packing according to the size of the pipes |
| Grades: | API 5L |
| O. D.: | 88.9-660.4 |
| WT: | 3.0--22mm |
| processing technology: | Hot rolling, ERW, cold drawn, cold rolling, SAW |
| Standard: | ASTM A53M, ASTM A106M, ASTM A333M；JIS G 3454, JIS G 3455, JIS G 3456 |
| Port: | Tianjin |

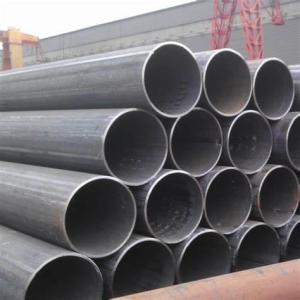

API 5L Psl1 Psl2 X42 X52 X60 X70 Welded ERW Steel Pipe For Oil Gas Construction
| Standard | API 5L, ASTM A 106/A53/A179/A252,DIN17175,DIN2448 etc |
| Material | Gr B. X42-X80, ST35-ST52, etc. |
| OD | 219mm-2020mm |
| WT | 4mm - 45mm, etc |
| Usage | Structure Use,water transport,Building,Machinery,Traffic,Aviation,Oil development etc. |
| Length | As request,2-12m random or fixed |
| Surface | Black paint as rusty protect, or on customer's request . |
| Ends | 2"below plain ends,2" above beveled ends, or as request . |
| Method | 140mm below cold drawn,140mm above hot rolled,273mm above hot expand |
| Packing | steel strip,bundles,Caps , plastic wrap,loading belt or as request |
Chemical Components and Machanical Property of ERW Steel Pipe
| Standard | Steel Grade | Chemical Components | Machanical Property | ||||||||||
| C | Mn | P | S | Cu | Ni | Cr | Mo | V | Tensile Strength (Mpa) | Yield Strength(Mpa) | Elongation (Mpa) | ||
| API 5L | A | ≤0.25 | ≤0.95 | ≤0.05 | ≤0.045 | ≤0.40 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥330 | ≥205 | ≥29.5 |
| B | ≤0.30 | ≤1.20 | ≤0.05 | ≤0.045 | ≤0.40 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥415 | ≥240 | ≥29.5 | |
| Standard | Steel Grade | Chemical Components | Machanical Property | ||||||||||
| C | Si | Mn | P | S | Cu ,Ni | Cr | Mo | V | Tensile Strength (Mpa) | Yield Strength(Mpa) | Elongation (Mpa) | ||
| API 5L | B | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥415 | ≥240 | ≥30 |
| C | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≤0.40 | ≤0.40 | ≤0.15 | ≤0.08 | ≥485 | ≥275 | ≥30 | |
