Single Station AC220V 200mm/S Auto Soldering Machine

XHL-H331R Desktop R-rotatable Single Station Automatic Soldering Machine

Quick Details

Place of Origin:Guangdong, China (Mainland)

Brand Name:XHL Technology

Condition:New

Work Area:300(x)*300(y)*100(z)mm R-axis:360°

XYZ Repeatability:±0.03mm

Certificate:ISO9001

After-sales Service Provided:Field installation, commissioning and training, Video technical support, Online support, Overseas third-party support available

Supply Ability

300sets/per month

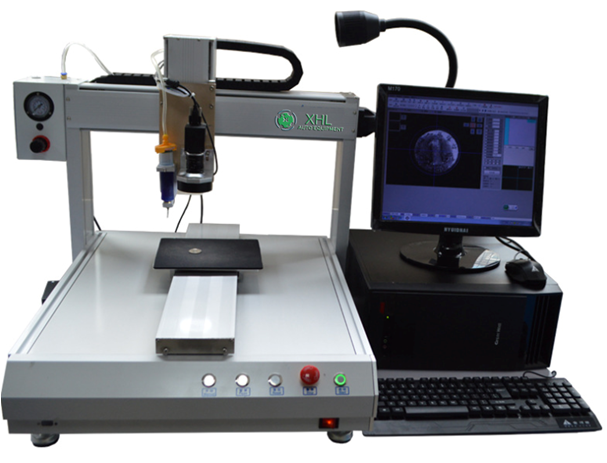

XHL-HZ331 Intelligent CCD Vision glue dispenser machine

Applications: bonding, filling, coating, sealing, filling, drip, linear/arc/circular gluing, etc.

Products Features :

1. Hot melt glue dispensing machine has the functions of drawing dots, lines, arcs, circles, continuous tween input program of irregular curves and three-dimensional dispensing

2. Continuous dispensing function of arbitrary points, lines, surfaces, arcs and other irregular curves

3, high speed, low noise speed brushless dc motor to make the dispensing better

4. Electrostatic eliminator can eliminate static electricity within ±100V

5. Automatic dispensing strength compensation function makes operation more convenient

6. XY area array, translation and rotation operation function, reverse use of stock plate, suitable for different work positioning

7. Support three-axis space linear interpolation, three-axis space arc interpolation and elliptic arc interpolation

8. Support the import function of computer graphics, including PLT files, TCF files and G code files

Parameter

How to program it? How to use it?
(Operating system that can be switched between Chinese and English)

1. Open Programing Box. in the program screen
2. Move X,Y,Z button to adjust
3.Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.

Packaging & Shipping

Strong wooden cases suitable for a long distance shipment.
package weight :about 45kg
package size: about 700(L)*700(W)*950(H) mm

Our Services

1.We can make part design and mould design by software CAD,UG,PRO/E,Solidworks and Catia ect

2.Available for OEM/ODM service and very super precision reachs to 0.001mm.

3.Standard mould base.

4.Send sample with test video to customers for check product quality and mould working condition.

5.During the period of making the mould,we’ll report the process of the mould with pictures every Monday.

6.Customer’s design are welcomed.

7.Competive price with on-time delivery.

8.One year warranty.
