| Categories | Electronic Digital Pressure Switch |
|---|---|
| Brand Name: | WNK |
| Model Number: | WNK-SPS |
| Certification: | CE |
| Place of Origin: | Anhui, China |
| MOQ: | 1 unit |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 pcs per month |
| Delivery Time: | 5-7 working days |
| Packaging Details: | Standard export carton packing, customized packing |
| Pressure Range: | -0.1-0.1Mpa-60Mpa |
| Medium: | Liquid, Gas, Water |
| Signal Output: | 4-20ma, 0.5-4.5V, PNP, NPN |
| Housing: | 304SS, 316SS |
| Working temperature: | -30~80C |
| Ingress Protection: | IP65, IP67 |
| switching type: | NO/NC |
| Accuracy: | ≦ 0.5% FS |
| Display: | OLED |
| Company Info. |
| Hefei WNK Smart Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description

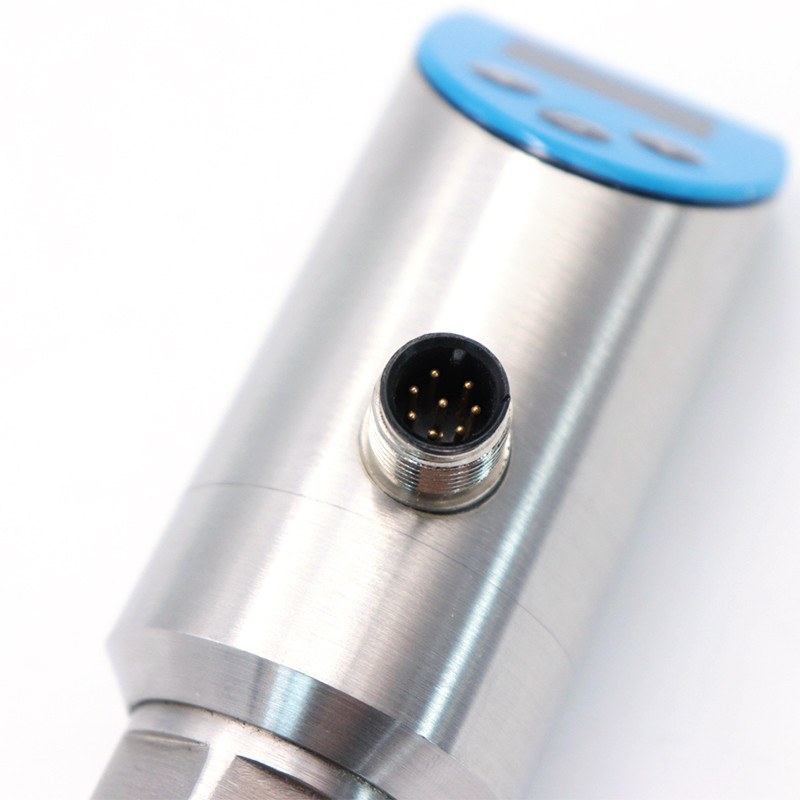

SPS is a pressure transmitter with a pressure switch to safely and absolutely measure and monitor gauge pressures. It is highly stable and has a function check and onsite information due to its OLED and digital display. It can be rotated up to 350° if placed on the upper part of the house, also the display contents can be rotated up and down.
Applications
Gas-liquid dual-capable can be used in : pump control, storage tank
monitor, liquid level control, filter blocking and monitor, leakage
surveillance.
Industrial process testing and control
Self-controlled and constant-pressured water supply in building
Petrochemical, environmental protection, water conservancy, light
industry, machinery, metallurgy
Measuring and control in other systems
Specs Sheet
Product Parameters
| Applicable Media | Liquid Gas and water |
| Pressure Measurement | Gauge pressure, Absolute Pressure |
| Pressure Range | -100kpa-60Mpa |
| Accuracy | 0.5%FS |
| Stability | ±0.3% FS/year |
| Switch Current | 1.0A(Max.) |
| Display | OLED (Optional) |
| Housing Material | 304 stainless steel |
| Storage Temperature | -40~80ºC |
| Working Temperature | -40~80ºC |
