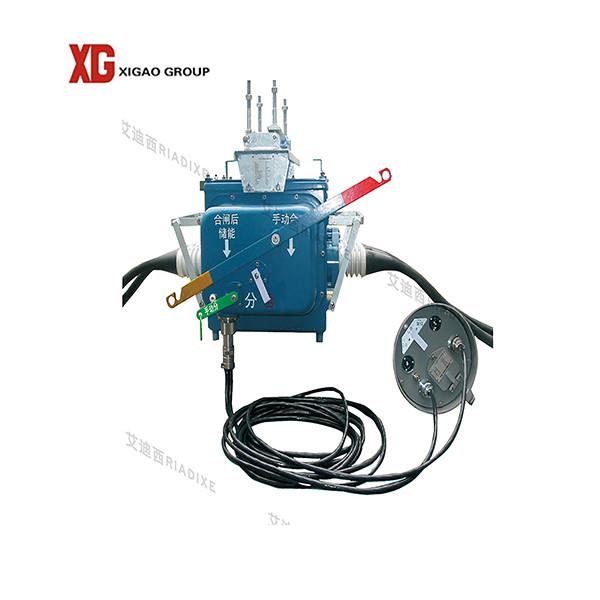

FZW28F-12kv 11kv 10kv High Voltage Circuit Breaker Recloser

1. FZW28F-12kv 11kv 10kv Outdoor high-voltage vacuum circuit breaker recloser

FZW28F-12 outdoor vacuum load break switch is pole mounted handle and motor free maintenance switch, which adopt vacuum arc extinguish and SF6 insulation medium. It conforms with IEC6 2271-103 & GB/T3804: High voltage AC load break switch. This load break switch (switch and controller) have function of fault checking, protection and communication.

2. Parameter list

3. Product application

(1). Altitude: ≤2000m;
(2). Ambient temperature: -45℃ ~+40℃;
(3). Wind speed: ≤35m/s;
(4). Earthquake intensity: ≤8 degree;
(5). Relative humidity: monthly average ≤90%, daily average ≤95%;
(6). Ice thickness: ≤10mm;
(7). Applicable occasions should free from inflammable, explosives and severe vibration.

4. Technical drawings

5. Factory

6. Delivery

7. FAQ

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
