Ipad Handheld Ultrasound Scanner Portable Color Doppler Abdominal Vascular Pediatrics Gynecology Application

Ipad Handheld Ultrasound Scanner Portable Color Doppler Abdominal Vascular Pediatrics Gynecology Application

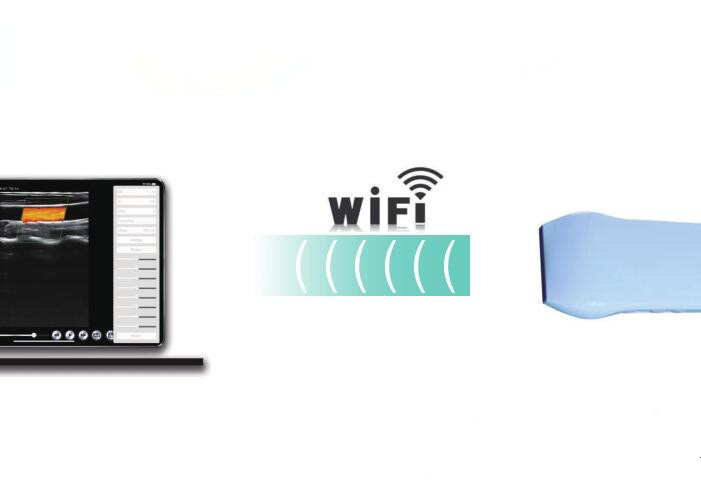

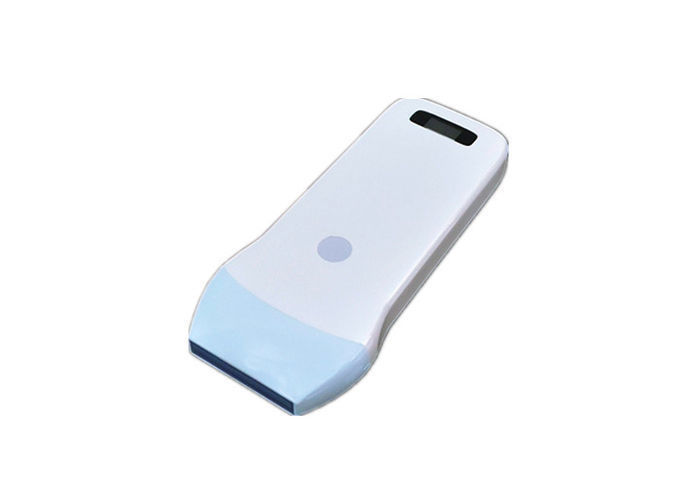

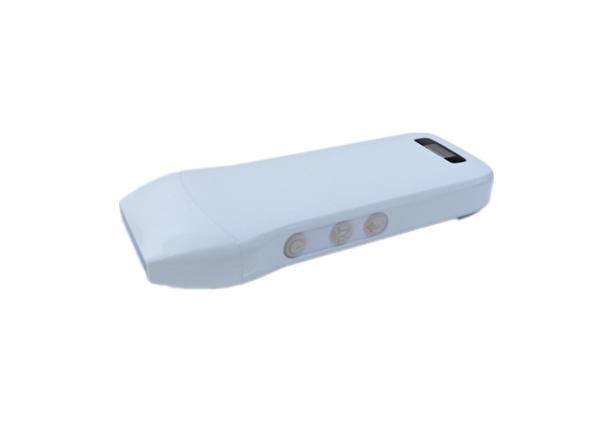

The wireless probe is a small portable Doppler ultrasound scanner with no screen. It has an integrated

ultrasound board inside and comes with a wireless network that can be connected wirelessly to IOS,

Anoroid and Windows.

After installing the ultrasonic software, the function of the ultrasonic scanner is realized.

And transfer images on your IOS, Android and Windows via Wi-Fi. The probe has its own WiFi and

does not require an external WiFi signal. Small, intelligent, easy to carry and operate.

Specification

Item	1	2	3
Type	Linear	Convex	Linear
Frequency	7.5-10MHz	3.5-5MHz	7.5-10MHz
Depth	20-55mm	90-305mm	20-100mm
Elements	128	192	192
Radius	N/A	R60	N/A
Length	46mm	N/A	46mm
DR	N/A	40-100	40-100
FocusPos	N/A	0.1.2.3	0.1.2.3
Enh	0-4	0-4	0-4
Display mode	B, B/M, Color Doppler,PW, Power Dopper	B, B/M, Color Doppler,PW, Power Dopper	B, B/M, Color Doppler,PW, Power Dopper
APP interface adjustment	GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) Focus 8TGC Biopsy Page Left/Right Up/Down	GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Page Left/Right Up/Down	GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Page Left/Right Up/Down
Measurement	B: Length, Area/Circumference, Angle,Trace,Distance B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth	B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​ B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth	B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth
Dimensions	157(h)*70(w)*30(d)mm	157(h)*70(w)*30(d)mm	157(h)*70(w)*30(d)mm
Package size	240(h)*235(w)*100(d)mm	240(h)*235(w)*100(d)mm	240(h)*235(w)*100(d)mm
Net weight	221g	239g	223g
Gross weight	1.1kgs	1.1kgs	1.1kgs
Wifi type	802.11g/20MHz/2.4G	802.11g/20MHz/2.4G	802.11g/20MHz/2.4G
Working system	Android, iOS, Windows	Android, iOS, Windows	Android, iOS, Windows
Application	Breast Thyroid MSK Superficial Vascular Pediatrics Carotid Small Parts	Abdominal Emergency Cardiac Obstetrics / Gynecology Lung Kidney Urology	Thyriod Small Parts Pediatrics Vascular Carotid Breast MSK
Language	Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil)	Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil)	Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil)
Battery life	5-8 years	5-8 years	5-8 years
Voltage	3.8v	3.8v	3.8v
Replaceable	Yes	Yes	Yes
Capacity	4200mAh	4200mAh	4200mAh
Standby	12h	12h	12h
Bootup	Platform dependent, generally <5 seconds	Platform dependent, generally <5 seconds	Platform dependent, generally <5 seconds

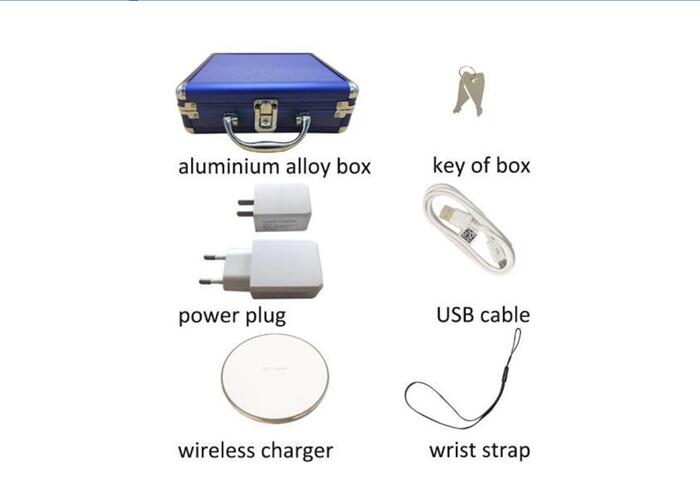

Standard Configuration

1	Wireless probe	1pc
2	USB cable	1pc
3	Power Plug	1pc
4	Wireless charger	1pc
5	Wrist strap	1pc
6	Portable aluminium alloy box	1pc
7	User's Manual_E format	1pc
8	Warranty Card_Eformat	1pc
