Categories | Stainless Steel Anchor Rods |
---|---|
Brand Name: | SupAnchor |
Model Number: | SSTR25, SSTR32, SSTR38, SSTR51, SST30, SST40, SST52 |
Certification: | ISO, SGS, ITB, IBDIM |
Place of Origin: | Jiangsu, China |
MOQ: | 3 meters |
Price: | 1 - 30 USD |
Payment Terms: | L/C, T/T |
Supply Ability: | 200,000 meters per month |
Delivery Time: | 1 to 6 weeks |
Packaging Details: | Packed in bundle with package paper. |
O.D. (mm): | 25 to 52 |
I.D. (mm): | 12 to 26 |
Ultimate Load (kN): | 200 to 1,250 |
Yield Load (kN): | 150 to 1,000 |
Cross Sectional Area (mm2): | 229 to 1,299 |
Thread Type: | ISO 10208 / ISO 1720 / T international standard |
Unit Weight (Kg/m): | 1.80 to 10.20 |
Length (m): | (1) x2, x3, x4, x5, x6 |

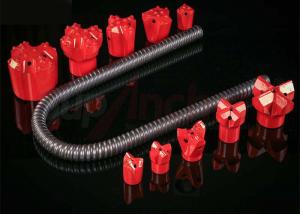

SupAnchor 25mm to 52mm high tensile stainless steel grout hollow rock self drilling rods
Features
SupAnchor® self drilling anchor system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time.
100+ year service life
Tensile Strength (N/mm2 ) >= 1000 N/mm2
High corrosion resistance
Applications
Tunnelling Ground engineering
1. Face stabilization
2. Radial systematic anchoring
3. Foundation for avalanche protect
4. Stabilization of tunnel portals
5. Spilling
6. Root piling
Technical Data
Stainless Steel Anchor Bar | SSTR25/ 200 | SSTR32/ 250 | SSTR32/ 280 | SSTR32/ 320 | SSTR32/ 360 | SSTR32/ 400 | |
Ultimate load (kN) | ≧200 | ≧250 | ≧280 | ≧320 | ≧360 | ≧400 | |
Yield load (kN) | ≧150 | ≧200 | ≧230 | ≧260 | ≧280 | ≧320 | |
Tensile Strength (N/mm2) | ≧1000 | ≧1000 | ≧1000 | ≧1000 | ≧1000 | ≧1000 | |
Outside Diameter (mm) | 25 | 32 | 32 | 32 | 32 | 32 | |
Cross sectional area (mm2) | 229 | 266 | 299 | 336 | 382 | 433 | |
Weight (kg/m) | 1.80 | 2.10 | 2.35 | 2.65 | 3.00 | 3.40 | |
Thread type | ISO 10208 / Left or Right | ||||||
Length (m) | 2/3/4/5/6 |
Stainless Steel Hollow Bar | SSTR38/ 500 | SSTR38/ 660 | cSTR38/ 750 | SSTR51/ 550 | SSTR51/ 800 | SSTR51/ 1000 | SSTR51/ 1250 |
Ultimate load (kN) | 500 | 660 | 750 | 550 | 800 | 1000 | 1250 |
Yield load (kN) | 400 | 528 | 600 | 440 | 630 | 800 | 1000 |
Tensile Strength (N/mm2 ) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Outside Diameter (mm) | 38 |
![]() |
