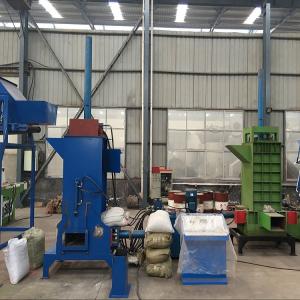

Wrapping 12m 17.2kw Automatic Packaging Machine

Sawdust Packing Machine It can make the shavings complete and easy to store

Introduction

Shaving packing machine is also known as vertical packing machine,sawdust shaving packing machine,which adopt many patent technology,compared with other similar products,it has a reasonable design structure,high efficientcy can be get more than 50 bags per hour.It is also the fastest and highest autimation equipment in our domestic.

It adopts Hydraulic transmission control system,high automatic,stable speed,high yield,easy operation,widely used in sawdust, shaving,cottonseed hull, peanut shell, corn cob press and packing, one-time compressed into a bag,convenient storage,which can greatly reduce the trandportation cost,what is more,it will be loose easily after press.it also can be used in Green building material, agricultural fertilizer etc.

Feature

1. High auto-control system ,workfore saving

2. High yield,stable speed

3. Auto-weighting,can be adjusted according to your requirement

4. Auto-feeder,easy operation

Company designs and manufactures various types of hydraulic baling press products, general-purpose hydraulic baling press for peanut shells, corn cobs, wood shavings, wood chip, gingko leaf, leaf tobacco, rice husk, straw, grass, paper, cotton, garment, plastics, wool, recyclable waste, waste bin, paper board, yarn, tobacco leaf, plastic, cloth, woven bags, knitted velvet, waste plastic bags all light bulbs, loose soft materials such as compression packaging materials, and greatly reduce the volume, increase the density, save up to 80% of the stack space, convenient transportation and storage.

Technical data

Matters needing attention

1. Please confirm the power used by the machine and do not plug in the wrong power.The machine adopts three - phase four wire system. The wire is earthed zero wire for leakage protection.

2. Do not touch the heating sheet directly with your hands.

3. Do not flush the machine with water. Operators should not work barefoot when the workplace is wet.

Remember to unplug the machine when not in use.

Don't change the parts of the machine at will.

6. Main parts should be lubricated with oil frequently.

Installation commissioning

1. Pay attention to the vertical of main body and horizontal during installation.

2. After installation, check whether the bolts in each part are loose and whether the main engine barn door is fastened. If so, please do so.

3. Configure the power cord and control switch according to the power of the equipment.

Matters needing attention

Correct use of machinery and equipment, careful implementation of the maintenance system and strict observance of safe operation rules are the necessary conditions to extend the service life of machines, improve production efficiency and ensure safe production.To this end, it is recommended that users establish maintenance and safe operation procedures, operators should be familiar with the machine structure and operation procedures, but also must pay attention to the following points:

(1) High quality anti-wear hydraulic oil shall be strictly used when adding hydraulic oil into the oil tank. It must be filtered strictly and always keep enough oil. In case of shortage, the oil shall be filled immediately.

(2) The oil tank should be cleaned and replaced with new oil every half a year, but the first cleaning and filtering oil should not exceed one month. The new oil used once is allowed to be used again after strict filtration.

(3) The lubrication points of the machine shall be filled with lubricating oil at least once per shift as required.

(4) The sundries in the material box should be cleaned in time.

Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.

As an international supplier, a professional manufacturer and a general international trader, the only job of the company is working at the all kinds of Machineries in scope of Environmental protection, Recyclable material treatment, Urban landscaping machines and so on. The company (abbreviation “HENAN WHEAT”) participated in more than 10 top class manufacturer factories, and have signed strategic cooperation agreements with several first class group enterprises in China.

For international customers, HENAN WHEAT are supplying and exporting advanced machineries such as: Wood shaving machine, Wood crusher machine, Wood sawdust machine, Wood debarking machine, Wood meal mill, Tree branch shredder, Multi-function pulverize, Grain dryer machine, Industrial dust collector, Coal gas generator, Rubber tyre shredder machine, Raymond roller mill and etc. Till now, she has developed and made business cooperation with more than 500 partners in more than 50 countries. Annual exporting amount more than USD 10 million.

For Chinese domestic customers, HENAN WHEAT are supplying and importing advanced machinery, high quality agriculture products and any other good products that customers will need.

In HENAN WHEAT, “Truthful and Prestige” are still our stable living base; “Customers’ satisfying” is still our desire; “Quality and Service” are our forever pursuing.

Wherever are you come from, whatever you will need, the only thing you need to do is to contact us. As soon as we look at, you will must be our friend at all first! Then in second, your working is to receive your goods at your warehouse or at your port. It is assured all of the cooperation between you and us will must be most benefit to both of our two parties.

All of your inquiry or message will be appreciated and will be replied immediately!
