Tug Barge Pontoon Height 100mm 150mm D Type Marine Rubber Fender

Categories Marine Rubber Fender
Brand Name: JUVI
Certification: CCS
Place of Origin: Chongqing of China
MOQ: 1
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 25 days
Product Name: D Rubber Fender
certificate: CCS ABS LR DNV BV KR RINA
Processing Service: moulding
feature: Durable,Sealing Performance,Wear Resistance
Type 1: D fender / DA arch fender/ V fender/ cell fender
type 2: cone fender/ cylindrical fender/ ladder fender
type 3: roller fender/ square fender/ W fender/ wing fender
Accessories: plate, nut, bolt, washer.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

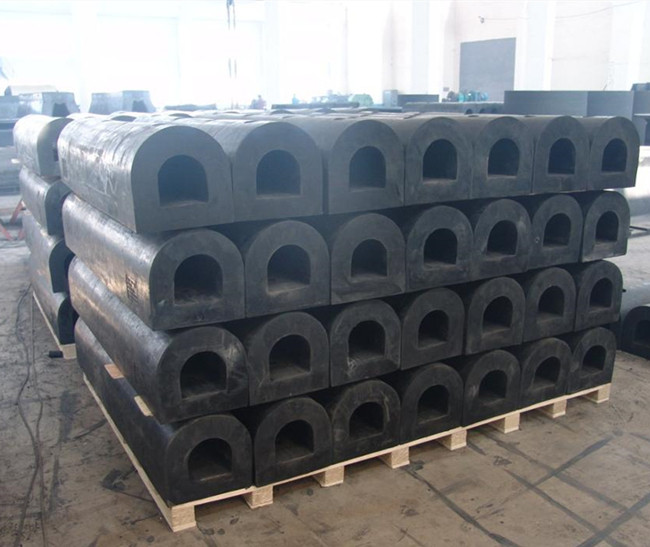

Tug Barge Pontoon Height 100mm 150mm D Type Marine Rubber Fender

Marine Rubber Fender D For Small Quay Fishing Boat Tug Barge Pontoon

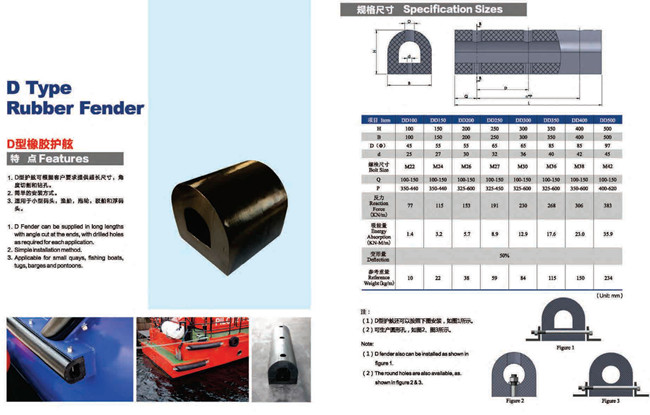

Specification


DD100DD150DD200DD250DD300DD350DD400DD500
H100150200250300350400500
B100150200250300350400500
D4555556565858597
d2527303236404245
bolt sizeM22M24M26M27M30M36M38M42
Q100 to 150
P350 to 440325 to 600325 to 450325 to 600325 to 600350 to 600400 to 620
reaction force (KN/M)77115153191230268306383
energy absorption (KN-M/m)1.43.25.78.912.917.62335.9
deflection50%
weight (kg/m)1022385984115150234




Fender


The fender, also known as the ship's handguard, is an elastic buffer device used on the pier or the edge of the ship, which is made of wood or rubber.


It is mainly used to slow down the impact force between the ship and the dock or the ship in the process of docking or mooring, and reduce or eliminate the damage to the ship and the dock.


Cylindrical rubber fender:



Features Low reaction force, low surface pressure, reasonable energy absorption; Strong adaptability to ship rolling and pitching when berthing. It is not affected by the size of the ship and has a wide range of uses. It is easy to install and maintain, especially suitable for old-fashioned wharves.



Semi-circular (D type) rubber fender:



Features Moderate reaction force, higher energy absorption than cylindrical type; easier to install; due to the small bottom width, it is especially suitable for frame-type docks and shipboard installations.



DO type rubber fender:



Features The reaction force energy absorption is higher than that of the D-type fender; the installation strength and service life are greatly improved than that of the D-type fender; It is suitable for frame type wharf.



Arched (V-shaped) rubber fender: Features moderate reaction force, high energy absorption; firm and convenient installation; suitable for all types of docks.



DA type rubber fender:



Features It has the characteristics of high energy absorption and low reaction force; the product has higher stress dispersion and long service life; the front end is equipped with a guard plate to reduce surface pressure; complete specifications and diverse installation methods; easy to replace.



Drum rubber fender:



Features low reaction force and large energy absorption; surface pressure below 25 tons/m2; small reduction in mechanical properties of inclined compression; ∏-type rubber fender: features low reaction force and large energy absorption; easy installation; generally suitable for large and medium-sized wharfs .
