Brand Name: | filamentlux |
Model Number: | FML-001 |
Certification: | CE,ROHS, |
Place of Origin: | China |
MOQ: | 3000PCS |
Price: | USD0.32-USD0.52 |
Payment Terms: | T/T or L/C |
Supply Ability: | 500kpcs per month |
Delivery Time: | 20-25days |
Packaging Details: | Color box or Blister |
Application: | Decorative Lighting |
Lamp Luminous Flux(lm): | 500LM/M |
Lamp Body Material: | PVC,PCB,Copper Wire |
Emitting Color: | Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others |
LED Light Source: | SMD2835 LED Chip |
Product Name:: | Led Light Strips |
LED Quantity: | 120leds/m |
IP Rating: | IP65 |
CRI: | ≥80,90 |
PCB Width: | 12mm |
Company Info. |
Changzhou Filamentlux Smart Technology Co., LTD |
Verified Supplier |
View Contact Details |
Product List |

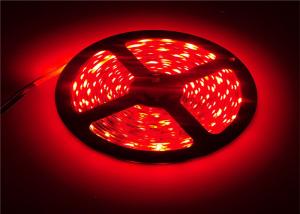

9W/M UL Listed RED Bright 5050 LED Waterproof Strip Light
High quality, low power consumption, energy efficiency. High flexibility, waterproof, and all sorts of stylish design. OEM/ODM services are available. More than 50,000 hours long lifespan with 1-3 years warranty. Wide range of emitting colors and applications. Can be cut as your actual demand and reduce waste. 3M adhesive tape on backside, easy to install. Certifications: RoHS and CE approved, etc.
120V AC LED STRIP LIGHT Parameters:
ITEM NO. | FML-HV-5730-120SH |
INPUT VOLTAGE | 120V |
Lamp Power | 14.4W/M 7-9w/m 10W/M |
LED QTY | 30led/m 60LED/m 120led/m |
IP Rank | IP20/IP50/IP65/IP66/IP67/IP68 |
FREQUENCY | 50Hz |
LED type | SMD2835 SMD5050 |
RATED POWER | 7.5W±10%/m |
PF | >0.9 |
Luminous Flux | ≥500LM 500LM/M 412LM/m 522lm/m |
LPW | ≥70lm/W |
CCT | 2800-3200k, 4000-4500K, 6000-6500K, 2700k 3000k, 4000k, 6500k |
Ra | ≥70 |
SDCM | <7 SDCM |
Working condition | -10℃~40℃;10%~90% |
Insulate class | II |
Install method | Clip |
Driver connection | Plug in-off |
Dimmer | / |
Cover/color | / |
NET weight(100m) | 11kg |
Product size | L100000mm×W14.5mm×H7mm |
Inner box | / |
Master carton | 330mm × 330mm ×210mm |
Packing | 100m/CTN |
Lifetime | 25000h |
Warranty | 1 year |
120V AC LED STRIP LIGHT Quick Details:
1) Pay attention +/- when SMT
2) LED SMT need to be tidy and without weak soldering
3) Smooth soldering point and clean LED
4) No any scar in the PCB
5) Can not see any color and brightness difference when by naked eye
