EMI 1.5W RS232 16cm HF Embedded RFID Reader

Categories Embedded RFID Reader
Brand Name: Andea Electronics
Model Number: PBYTJ160
Pla of Origin: CHINA
MOQ: 1 Piece
Pri: Negotiable
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500~800 Sets Per Month
Delivery Time: 3~5 work days
Packaging Details: Standard Export Carton, Foam and Protective Film
Place of Origin: CHINA
Frequency: 13.56MHz
Protocol: ISO15693, ISO1800-3M1
Interface: RS232
Reading range: 16cm
Dimension: 160*90*20mm
Weight: 260g
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

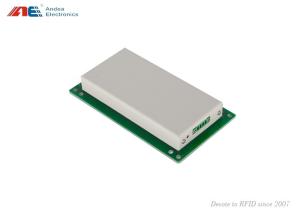

EMI 1.5W RS232 16cm HF Embedded RFID Reader

Embedded RFID Reader designed for Self-service Check-in/out Book Terminal


Product Description

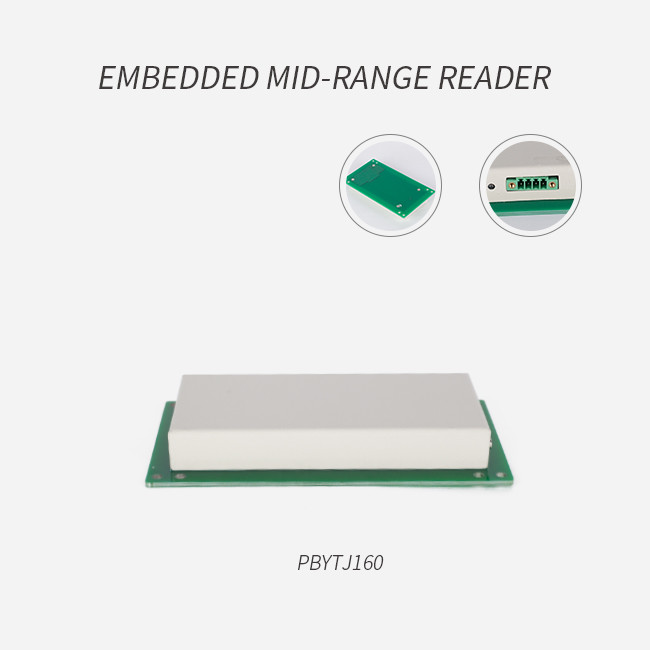

PBYTJ160 designed for self-service check-in/out book terminal, book sorting machine, which can work normally in metal surrounding environment. It is integrated design with reader and antenna together.
Product Parameters
Technical Specification
ModelPBYTJ160
Operating Frequency13.56 MHz
Compatible ProtocolsISO 15693 and ISO 18000-3M1
RF Power0.25-1.5W
Communication InterfaceRS232
Misreading Range≤6cm
Reading Range16cm
Max Power Consumption3.5W
Working VoltageDC 12V
Metal Shielded DesignSupport
EMI DetectionSupport
Housing MaterialPCB and Metal Plate
Dimension160*90*20mm
Weight260g

Product Features

  • Operating Frequency: 13.56MHz
  • Compatible Protocols: ISO15693 and ISO18000-3M1
  • Communication Interface: RS232
  • Reading Range: 16cm (Related with the antenna and tag)
  • Misreading Range: ≤6cm
  • Reading Speed: Up to 50pcs per sond
  • RF Power: 0.25-1.5W
  • Anti-collision Algorithm: Support
  • Working Voltage: DC12V, ≤400mA
  • Max Power Consumption: 3.5W
  • Host and Scan Mode: Support (set through software)
  • EMI Detection: Support
