| Categories | Fiber Laser Marking Machine |
|---|---|
| Brand Name: | Keyi |
| Model Number: | KY-M-FB50 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 sets/month |
| Delivery Time: | 5-7 days |
| Packaging Details: | standard wooden package |
| Material: | Metal and some plastic |
| Software: | EZCAD |
| Laser source: | JPT |
| Power: | 50w |

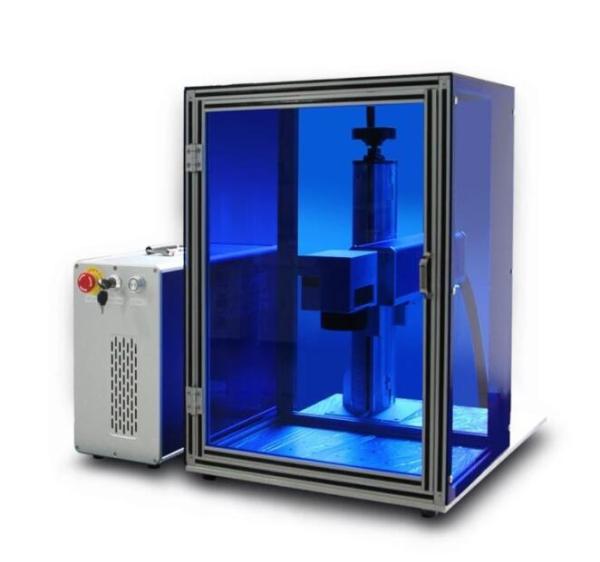

Fiber Laser Engraver Marking Machines 50w 100w Laser
Introduction:
Used in metal and some plastic.
Application:
1) Electronics: Iphone, IPAD, Ipod, Keyboard and more standard
parts.
2) Instrument: Panel Board, Nameplates, Precision equipment, etc.
3) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools,
etc.
Specification:
| Laser Features | ||||||
| Laser type | Raycus | |||||
| Laser Power | 50W | |||||
| Laser Wavelength | 1064nm | |||||
| Repetition Frequency Range(KHZ) | 30-60 | |||||
| Output Power Stability | <3% | |||||
| Output Beam Diameter(mm) | 7.0±1.0mm | |||||
| Beam Quality | <1.5 | |||||
| Polarization State | Random | |||||
| Pulse width(ns) | 90-130 | |||||
| Max. Single Pulse Energy(mJ) | 0.67 | |||||
| Delivery Cable Length(m) | 2(others for optional) | |||||
| Marking parameter | ||||||
| Marking Size | 110mm*110mm(others for optional) | |||||
| Marking Speed | 0-11000mm/s | |||||
| Marking depth / Roman Type , Character Height 1mm | 0.01-0.2mm( Depending on the material ) | |||||
| Marking Content/ Character Types | Text/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding | |||||
| Minimum character | 0.02mm | |||||
| Precision | ±0.003mm | |||||
| Others | ||||||
| IP Grade | IP54 | |||||
| Cooling system | Air Forced | |||||
| Operating Temperature | Temp.:8℃-40℃; Relative humidity≤95%RH； Air dust≤0.01g/m³; Atmospheric pressure ≤86—106Kpa | |||||
| Power Voltage | 220V/110V, 50/60HZ | |||||

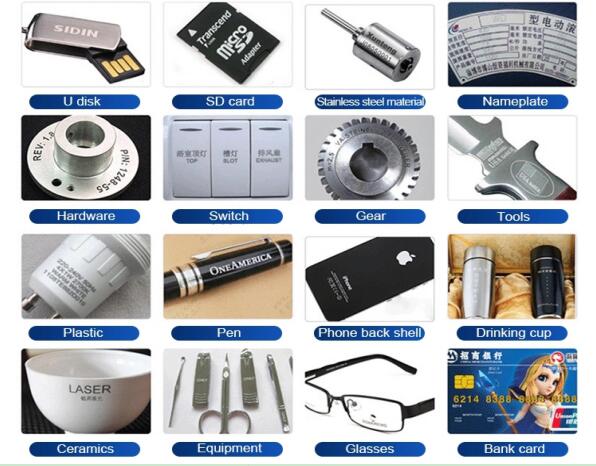

Sample:
|
Fiber Optic Laser Engraving Machine For Steel Electronic Component Buttons
IP54 20W Portable Laser Marking Machine For Aluminum
50 Watt 100 Watt 1064nm Laser Engraving Marking Machine
20W 30W 50W Fiber Laser Metal Engraving Machinery
IP54 0.003mm Precision 50W Fiber Laser Marking Machine For Brass
20W 30W 50W 100W Raycus IPG Laser Etching Machine
0.003mm Precision 20W Raycus Laser Engraver For Stainless Steel
20W 30W 50W 100W Steel Laser Marking Machine
20W 30W 50W CNC Laser Marking Machine For Mobile Phone
10W 20W 30W 50W Fiber Laser Marking Machine For Metal
