Mobile high output grading aluminum powder ultrasonic vibrating/vibratory screener screen

Categories Powder Screening Equipment
Brand Name: YIHU, YIHU
Model Number: OEM
Certification: CE
Place of Origin: Henan, China
MOQ: 1 - 99 Sets
Price: $1200~5000 set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Delivery Time: 7~15 work days
Packaging Details: Packing machine with standard wooden box. Mobile high output grading aluminum powder ultrasonic vibrating/vibratory screener screen
Type: Circular
Voltage: 380-480V
Warranty: 1 Year
Function: Screening\separation
Product Name: Mobile high output grading aluminum powder ultrasonic vibrating/vibratory screener screen
Color: Customized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

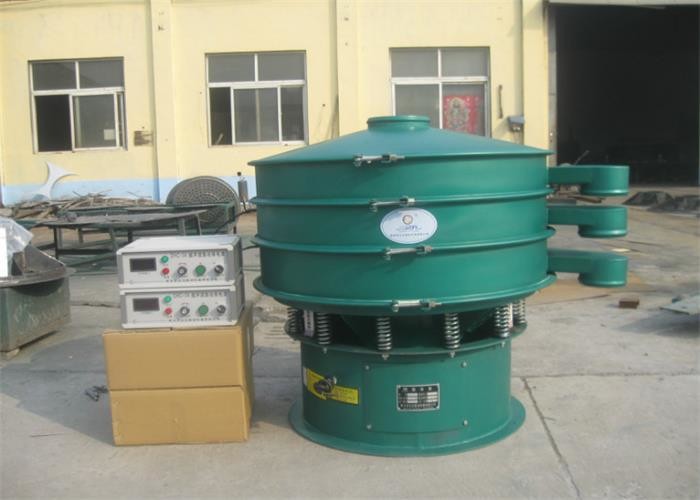

Mobile high output grading aluminum powder ultrasonic vibrating/vibratory screener screen

Mobile high output grading aluminum powder ultrasonic vibrating/vibratory screener screen

Product Description

Ultrasonic Vibrating Screen is to convert 220V, 50Hz or 110V, 60Hz electric energy into 38KHz high-frequency electric energy, input the ultrasonic transducer, and turn it into 38KHz mechanical vibration, so as to achieve the purpose of efficient screening and cleaning.
It has the advantage of high efficiency in handling different problems such as aggregation, high static, great precision, and strong adsorption, etc.

Product Details

Ultrasonic Vibrating Screen is widely used in metallurgy powder, electromagnetic materials, metal powder, iron powder, zinc oxide, alumina powder, alloy powder, molybdenum powder, cobalt powder, carborundum, copper, nickel powder, silica powder, titanium oxide, tungsten carbide, tungsten powder, titanium powder , stainless steel powder etc.

ModelPower(KW)LayersMachine Diameter(mm)Dimensions(mm)
CSB-4000.181-5320420*420*580
CSB-6000.551-5550580*580*680
CSB-8000.751-5750800*800*680
CSB-10001.51-5950900*900*780
CSB-12001.51-511501160*1160*880
CSB-15002.21-514501360*1360*980
CSB-18002.21-517501850*1850*1130
Features

1. The feeding port and the discharging port can be arbitrarily changed to facilitate the screening mechanical arrangement.
2. the structure is simple, less blocking holes, automatic cleaning anti-blocking network device
3. small size, light weight, easy to install, easy to move
4. unique grid structure, easy to change the net, easy to operate, easy to clean
5. high vibration efficiency, compact design and durability, any powder and adhesive can be screened
6. fully enclosed structure, no dust pollution, low noise, low energy consumption, in line with environmental requirements.
7. a wide range of screening, dry wet screening can be, the replacement of the screen is simple

Working Principle
It uses vertical motor as the source of vibration, equipped eccentric hammer on the both sides of motor ,change cir cum rotate to level ,upright and incline movement,then pass these three movement to surface of the screen. Adjust the phase angle on the both sides of the top and bottom to change the movement track of the surface screen. This will help to screen different materiel in different situation successfully.
FAQ

In order to provide you a accurate quotation, please help us to know the following information.

1. the raw material information, the material name, water content (dry or wet), bulk density.

2. what's your purpose? grading, filtering or removing impurity?

3. how many layers do you need?

4. what's the mesh size___(mm/ mesh) for each layer?

5. how is the handling capacity__kgs per hour?

6. what's your local voltage_ volt, and frequency__Hz?

7. other special requirement, such as construction material.
