Brand Name: | HGMT |
Model Number: | GF088 |
Certification: | ISO9001:2001 |
Place of Origin: | China |
MOQ: | 50sets |
Price: | Negotiable |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000meters per month |
Delivery Time: | 15-18days |
Packaging Details: | 1. panels packing with pallet post bulk in the container 2. panel with post all bulk in the container 3. panle with post all packing with pallet |
Name: | Double circle fence |
material: | metal |
wire diameter: | 4.0/4.5/5.0mm |
opening size: | 50*100/50*200/55*200/75*150/100*300mm |
length: | 2.0/2.2/2.4/2.5/2.8m |
height: | 830/1030/1230/1530/1830/2030mm |
color: | white color |
surface: | powder coating after galvanized wire |
post type: | square post/round post |
Company Info. |
Hebei Bending Fence Technology Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

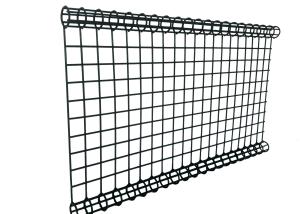

Wholesale Double Loop Wire Fence / Double Ring Fence / Double Circle Fence
Double circle welded wire garden fence Introduction

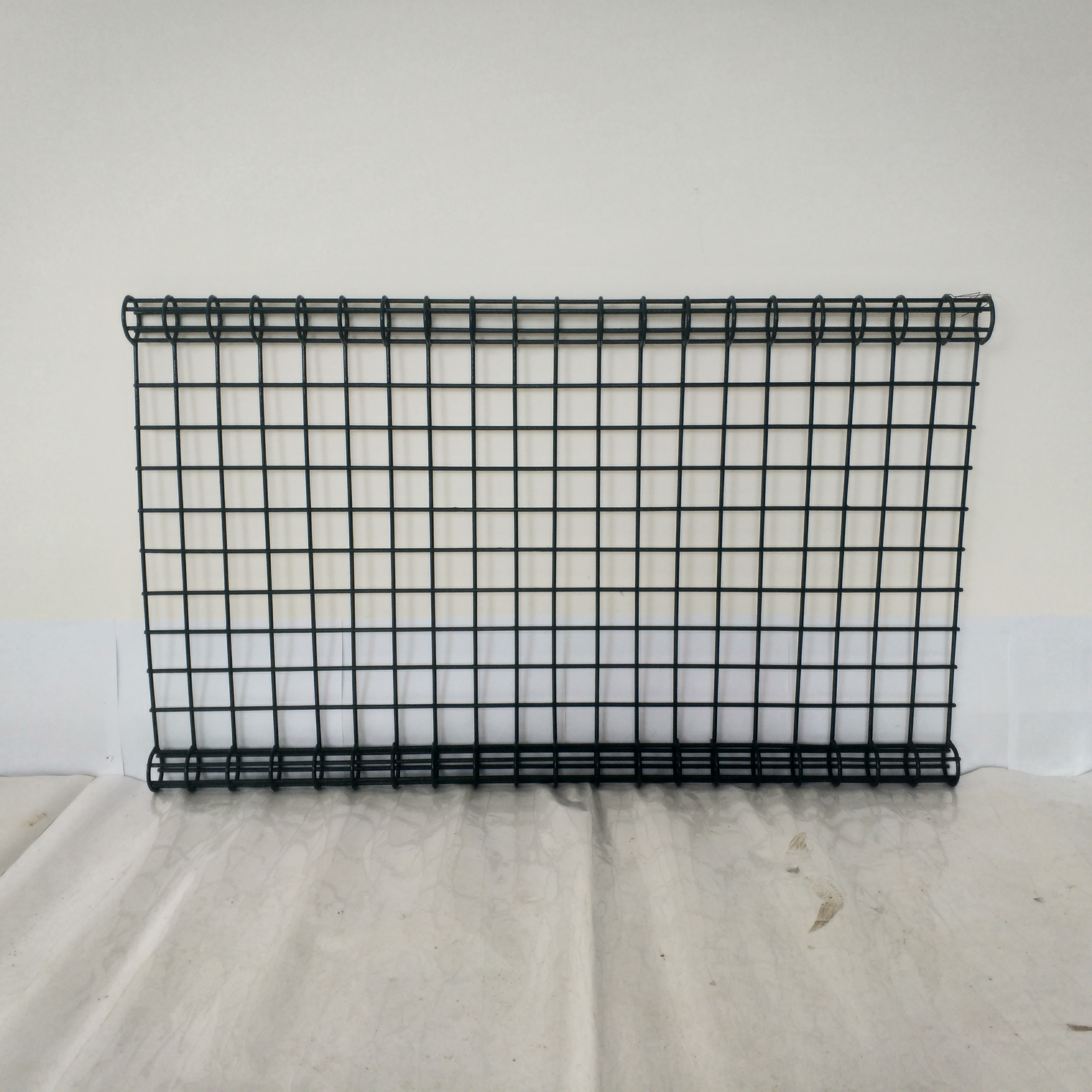

Specifications of panels
Line wire x | Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm | 50X100mm 50X200mm 55X200mm 75X150mm 100X300mm | 2m 2.2m 2.4m 2.5m 2.8m | 830mm | 2 | Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 | 1.Hot-dipped galvanized after black wire welded 3.PE coated after galvanized wire welded |
1030mm | 2 | |||||
1230mm | 2 | |||||
1530mm | 3 | |||||
1830mm | 4 | |||||
2030mm | 4 |
Detail of parts

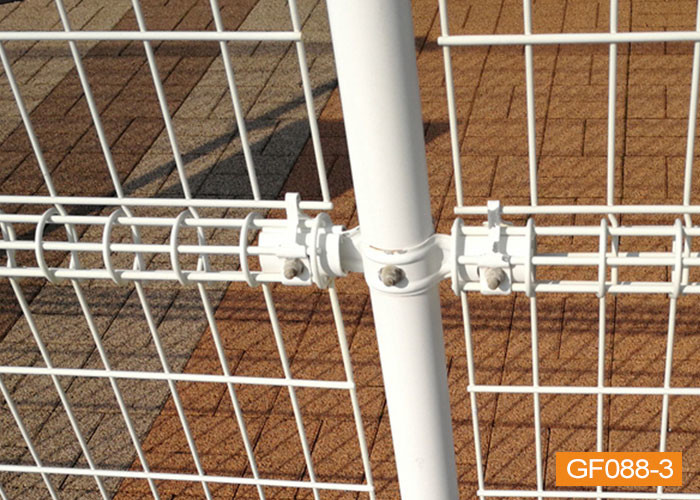

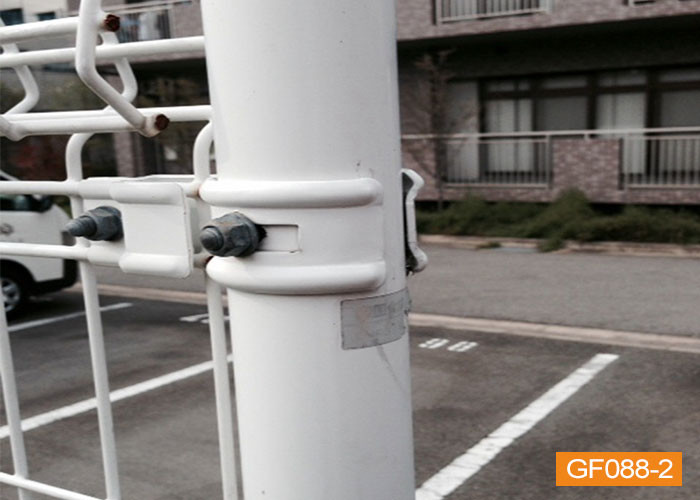

Details of the post
Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
Square post | 40x40mm 50x50mm 60x60mm | 1.5mm 1.8mm 2mm 2.5mm | 830mm | 850mm | 1200mm | 1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
1030mm | 1050mm | 1400mm | ||||
1230mm | 1250mm | 1600mm | ||||
Round post | Φ48mm Φ60mm Φ75mm | 1530mm | 1550mm | 2000mm | ||
1830mm | / | 2400mm | ||||
2030mm | / | 2500mm |
Installation

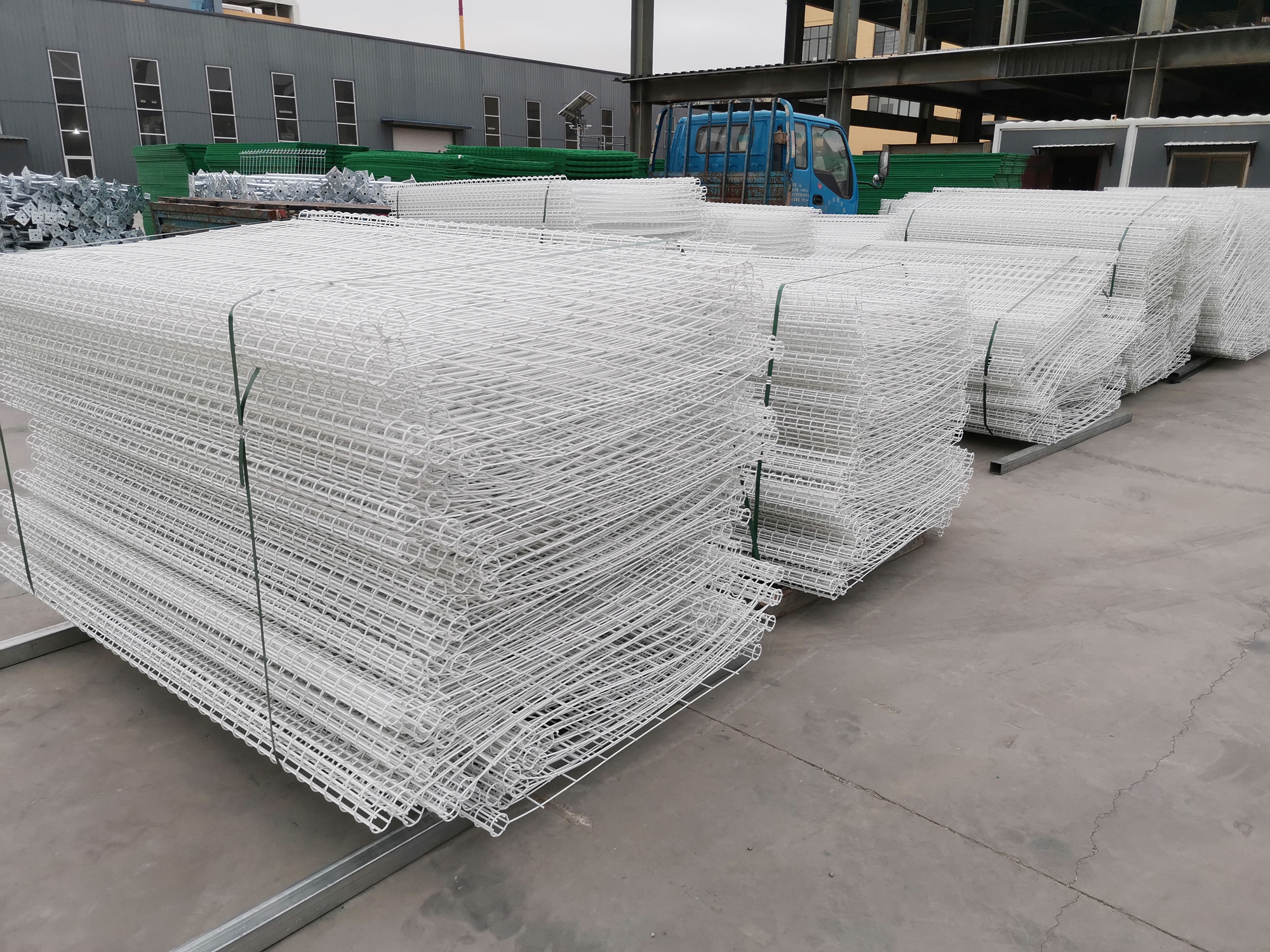

Packing
![]() |
