0.2mm Temper O 1070 Aluminium Alloy Plate For Electronics

Categories Aluminum Alloy Sheet
Brand Name: YOWO
Model Number: 1070
Certification: CE, SGS
Place of Origin: CHINA
MOQ: 7 MT
Price: USD 2000-2900 per TON
Payment Terms: L/C, T/T
Supply Ability: 20000 tons per month
Delivery Time: 15-30 days after receiving deposit or Original LC
Packaging Details: Standard exporting package
Type: 1050 aluminum sheet, coil
Alloy: 1050, 1060, 1070 etc..
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H111, H112, H116, H321, T3, T4, T5, T6, T651
Thickness: 0.1-500mm
Width: 200-2300mm
Length: 500 to 16000mm, or as you requested
Sample: can be provided
Note: Customized service is available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

0.2mm Temper O 1070 Aluminium Alloy Plate For Electronics

Factory Price 1070 Aluminum Alloy Sheet O Temper For Electronics, Cable, Capacitors

1070 Aluminum alloy sheet, plate

1070 aluminum plate contains 99.7% aluminum, and has the characteristics of high plasticity, corrosion resistance, electrical conductivity and thermal conductivity. Use its advantages to make some structural parts with specific properties, such as wire and cable protective nets, cores and ventilation System parts and decorative parts.


1070 aluminum alloy sheet advantages:

1. Aluminum alloy has long service life, low cost, and high recycling value.

2. 1070 hot-rolled aluminum plate has high plasticity, corrosion resistance, good electrical and thermal conductivity, and can accept contact welding and gas welding.

3. Our company strictly controls the processing quality, texture, grain structure, composition etc. of the product, and the product performance reaches the international advanced level, and has gained very good reputation by customers at home and abroad!


1070 aluminum plate thickness:

The production thickness ranges from 1-500mm, and the maximum width reaches 2650mm.


Our company supplies 1070 hot-rolled aluminum plates, 1070 medium-thick aluminum plates, 1070 ultra-wide aluminum plates, 1070 pattern aluminum plates, etc.


Specifications:

Grade:1050, 1060, 1100Temper:O, H12, H14, H16, H18, H116
Thickness:0.2-6.0mmWidth:600-2280mm
Delivery Time:35 DaysApplication:Industry Traffic Aircraft
Type:SheetAlloy Or Not:Non-Alloy
High Light:Aluminum Sheet Plate, Aluminum Alloy Plate

Mechanical Property:

AlloyTemperThicknessWidthBurrConductivityTensile Strength(N/mm2)Elongation(%)
1050O0.2-6mm30-1630mmno35.4m/Ω.mm260-950.08-0.2mm≥20
0.2-3.0mm≥25
1060O0.2-6mm30-1630mmno35.4m/Ω.mm260-950.08-0.2mm≥20
0.2-3.0mm≥25
1070O0.2-6mm30-1630mmno35.4m/Ω.mm260-950.08-0.2mm≥20
0.2-3.0mm≥25
1350O0.2-6mm30-1630mmno35.4m/Ω.mm260-950.08-0.2mm≥20
0.2-3.0mm≥25

Mechanical Property

ALUMINUMGradeNormalTemperTensile StrengthYield StrengthElongation%Brinell Hardness
ALLOYTemperN/mm²N/mm²PlateBarHB
1XXX1050O,H112,HO783440-20
1060O,H112,HO703043-19
Al-Cu2019O,T3,T4,T6,T8T85145035010--
(2XXX)2024O,T4T44703252017120
Al-Mn3003O11040303728
(3XXX)3004O,H112,HO18070202245
Al-Si (4XXX)4032O,T6,T62T6380315-9120
Al-Mg5052O,H112,HH34260215101268
(5XXX)5083O,H112,HO290145-20-
Al-Mg-Si6061O,T4,T6,T8T6310275121595
(6XXX)6063O,T1,T5,T6,T8T518514512-60
Al-Zn-Mg7003T5T531525515-85
(7XXX)7075O,T6T6570505119150

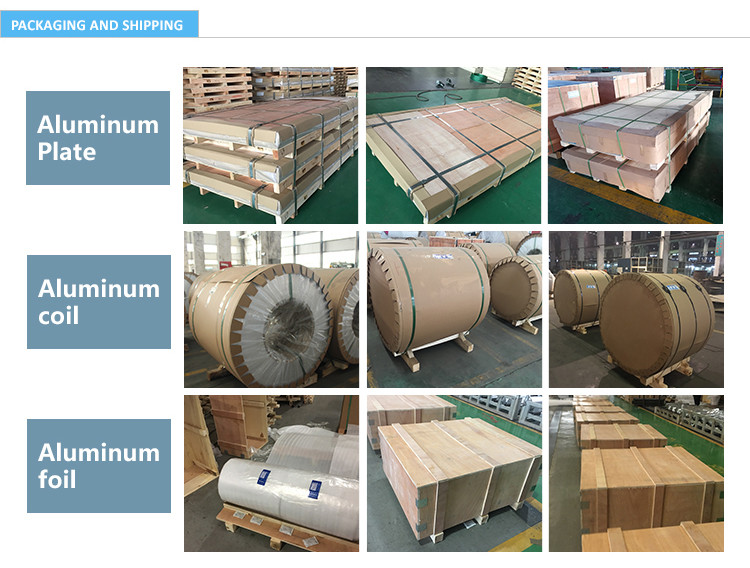

Packaging:

Standard seaworthy package. Wooden pallets with plastics protection for the coil and sheet, or to be packed as your requests.


Loading:

Total quantity from 0-50 tons, can be shipped by containers.

More than 50 tons, can be shipped by bulk vessel.

20 ft container: can load width below 2300mm, length 6000 max.

40 ft container: can load width below 2300mm, length below 12000mm



Use its advantages to make some structural parts with specific properties, such as aluminum foil made of gaskets and capacitors, electronic product shells, vacuum tube isolation nets, wire and cable protective covers, nets, cores, ventilation system parts and decorative parts.
