IEC62196 150A CCS2 COMBO2 Electric Car Charging Sockets

IEC62196 150A DC CCS2 Electric Vehicle EV COMBO2 Fast Charging Power Socket

Charging plug meet 62196-3 IEC 2011 SHEET3-1m standard

Housing massive structure promote protectio performance

Mechanical life:no-loading plug in /pull out >10000 times

Impat of external force :can afford 1m drop and 2t vehicle run over pressure

Rated current:150A

Operation voltage:1000V DC

Insulation resistance:>2000MΩ

Features

Charging Plugs meet 62196-3 IEC2011 SHEET 3-IM Standard

Housing massive structure promote protection performance

下·

Mechanical Properties

Mechanical life:no-load plug in /pull out > 10000 times

Impat of external force: can afford 1m drop and 2t vehicle run over pressure

Other Model Size

Environmental performance

Operating temperature: -30℃ ~ +50℃

Applications

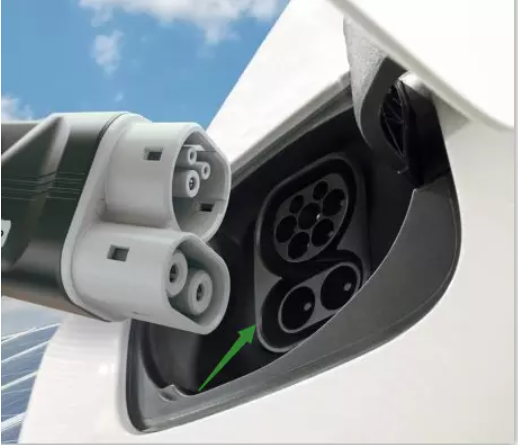

Electric vehicle charging inlet.

Basic Date

DC input:150A (DC 1000V)
AC input: 32A (AC 400V)
Insulation resistance: >2000MΩ (DC1000V)
Terminal temperature rise.: <50K
Withstand Voltage: 3200V
Contact Resistance: 0.5m Ω Max

Mechianical life: no-load plug in / plug out > 10000 times
Coupled insertion force: >45N<80N
Impact of external force: can offord 1m drop test and 2T vehicle run over pressure
Case Material: Thermoplastic, Flame retardant grade UL94-0
Contact bush: Cooper alloy+ thermoplastic on the top
