Wet Type Magnetic Separator Machine

Categories Ore Dressing Plant
Brand Name: Zhongke
Model Number: CTB6012
Certification: CE,ISO9001,ISO14001
Place of Origin: Henan, China (Mainland)
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 900 sets per month
Delivery Time: 10 days
Packaging Details: Nude, steel or wooden case
Color: As customer required
Control System: Simens Motor
Cylinder diameter: 600 mm
Tube length: 1200 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wet Type Magnetic Separator Machine

1. Application of Magnetic Separator
Magnetic Separator are widely used for the wet magnetic separation of materials which particle size less than 3mm such as magnetite, pyrrhotite, calcined ore, ilmenite, etc, but also used for deironing operations of coal, non-metallic minerals, building materials and other materials.
2. Structure of Hematite Ore Magnetic Separator
A basic magnetic separator consists of a magnet of some kind.
Permanent magnet drum magnetic separator can be divided into 3 kinds according to its structure at the bottom of different:
downstream type, counter-current type and half counter-current (semi counterflow) type.
3. Advantages of Hematite Ore Magnetic Separator
1. Simple structure makes it easy to operate and maintain.
2. Max. Magnetic intensity: 8,000 OE.
3. The number of axial magnetic can be adjusted in accordance with material characteristics.
4. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
5. Energy saving & high-efficiency.
6. Also has disaggregating function for sticky and poor-fluidity powders.
7. Stainless steel machine and full-closed operation enable an easy clean.
8. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.
9. Magnetic separator can be working under high temperature.

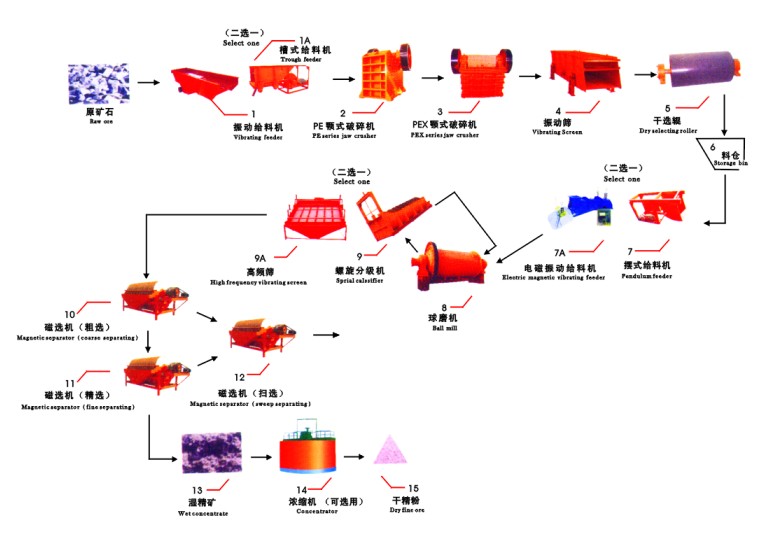

4. Magnetic Separator for Hematite Ore Magnetic Separating Process
5. Technical parameters of Hematite Ore Magnetic Separator
ModelCylinder diameter(mm)Tube length(mm)Cylinder speed(r/min)Feed size(mm)Magnetic field strength(GS)Capacity(t/h)Power(KW)
CTB60126001200<351-0140031.5
CTB60186001800<351-0150062.2
CTB75187501800<352-01500102.2
CTB90189001800<352-01600203
CTB90219002100<352-01600303
CTB90249002400<282-01600354
CTB101810501800<202-01700405.5
CTB102110502100<202-01700455.5
CTB102410502400<202-01700505.5
CTB121812001800<183-0170060-1205.5
CTB122412002400<183-0170070-1507.5
CTB123012003000<183-0170080-180

7.5
