WFSS65 Serial Superfine Grinder Double Rotor Crusher Drawings

Structure Diagram of WFSS65 Dual Rotors Hammer Mill

1. Feeding guide mechanism, 2. Engine base, 3. Press sieve mechanism, 4. Operating door,5. Motor, 6. Upper shield, 7. Rotors and other components.

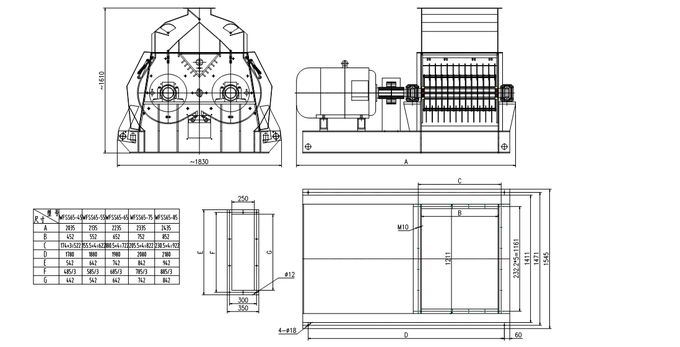

Figure 2: Foundation Installation Drawing of WFSS65 Dual Rotors Hammer Mill

Working Principle

Material is fed from the top inlet and will enter into the crushing chamber through the feeding guide mechanism. The material is struck by high speed rotating hammerer, so it is crushed by being rubbed and struck in cycles and cutting function of punching sieve. Meanwhile under the action of centrifugal force and air stream, the material of qualified granularity will pass through the sieve pore and discharge from the outletunder the base. Customer can adopt multiple auxiliary equipments to finish the work such as material collection, conveying and warehouse entry based on the specific process.

Packaging & Shipping

1. Small parts use wooden box, large equipment use plastic film.

2. Columns are fastened with iron support.

3. Type of shipping: Transportation by sea

4. Port: Shanghai port

Jiangsu Wulong Machinery Co., Ltd. is a manufacturer of Crushing equipment / Hammer Mill Machine in China. our products has been exported to more than 10 countries in Europe, Africa and Southeast Asia, and are well received by customers.
