| Categories | Drilling Rig Mud Pump |
|---|---|
| Brand Name: | JINZHOU SHITAN |
| Model Number: | BW250 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 se2000 sets per yearts per year |
| Delivery Time: | 7-12 days |
| Packaging Details: | Standard Export Package |
| Type: | Horizontal Piston Pump |
| Product Name: | Mud Pump |
| Cylinder: | 80mm |
| Piston Stroke: | 100mm |
| Max. Flow: | 250L/min |
| Max. Pressure: | 6MPa |
| Dimensions: | 1000*995*650 |
| Weight: | 760kg |
| Company Info. |
| Jinzhou City Shitan Machinery Equipment CO. LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
Grouting Drilling Rig Mud Pump
Drilling Rig Mud Pump Brief Introduction
Mud pump refers to a machine that transports mud or water and other flushing fluid into the borehole during drilling. Mud pumps are an important part of drilling equipment.
In the commonly used positive circulation drilling, it is to send
the surface flushing medium--clean water, mud or polymer flushing
liquid to the bottom end of the drill bit through a high-pressure
hose, a faucet and a drill pipe center hole under a certain
pressure. Cool the drill bit, remove the cutting debris and
transport it to the surface.
The commonly used mud pump is a piston type or a plunger type, and
the crankshaft of the pump is driven by the power machine, and the
crankshaft passes the crosshead to drive the piston or the plunger
to reciprocate in the pump cylinder. Under the alternating action
of the suction and discharge valves, the purpose of pumping and
circulating the flushing liquid is achieved.
Features for Drilling Rig Mud Pump

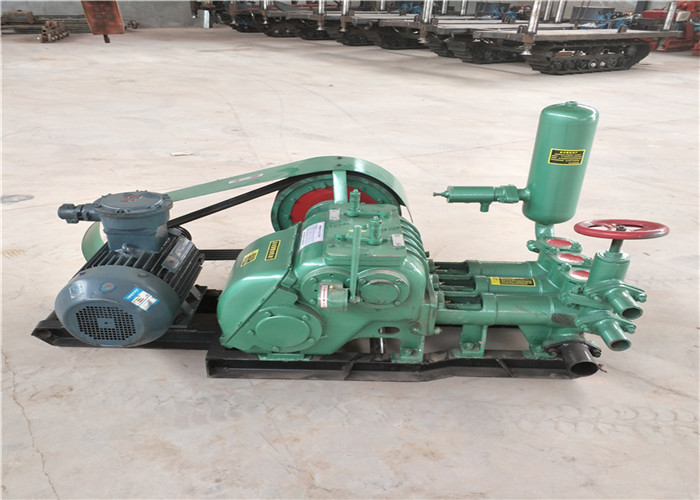

BW-250 Mud pump is a horizontal, triplex, single acting reciprocating piston pump. It has the advantages of multi-speed shift gears for variable displacement, construction, light weight, readily movable and easy to operated etc. BW-250 Mud Pump is provided with two kinds of liner, 80mm is for core drilling of ordinary bore ,65 mm is for core drilling of small bore with diamond bit . The pump can be driven by electric motor or diesel engine according to the requirement of the customer in order .
Drilling Rig Mud Pump Parameter:
Type | Horizontal three cylinder reciprocating single acting piston pump | ||||||||
Stroke (mm) | 100 | ||||||||
Cylinder diameter (mm) | 80 | 65 | |||||||
Pump speed (min-1) | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 | |
Flow (L/min) | 250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 | |
Pressure (MPa) | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 | |
Power (KW) | 15 | ||||||||
Shape size (mm) | 1000×995×650 | ||||||||
Weight (kg) | 760 | ||||||||
