20kHz 15khz 3.2kw Ultrasonic Plastic Welder

Categories Slitting And Rewinding Machine
Brand Name: HUALIANYIMIN
Model Number: SAO2000
Certification: CE
Place of Origin: china
MOQ: 1set
Price: 2900US INCLUDING SIMPLE STRUCTURE MOLD
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100sets/month
Delivery Time: 20-25days
Packaging Details: International standard export wooden case packing
Worktable: 2 kinds
type: 15KHz / 20kHz digital type
Condition: New
Voltage: 220V
Key Selling Points: Long Service Life
Machine Type: Ultrasonic Welding Machine
Function: Plastic Welding
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

20kHz 15khz 3.2kw Ultrasonic Plastic Welder

15K 3200W ultrasound plastic toys welding machine for Plastic Welding Trade Assurance
15KHz / 20kHz digital type 15KHz / 20kHz digital type
Worktable: 2 kinds
An iron
A kind of aluminum profile (brown).(The price is the same. Customer's choice)
Machine Feature:
Ultrasonic welder has strong welding strength to weld different plastic parts and meet waterproof and airtight requirement. It can weld many kinds of plastic materials such as: ABS, PS, PP, PE, PC, PVC, NYLON, NORYL, ACETAL, POLYSULFON etc.
1. High precision splitter installed, with Powerful ultrasonic welding, wonderful welding effect assured.
2. High Q value oscillator installed, high quality, reliable working status. Use different moulds; you can realize different welding application.
3. Automatic overload protection system.
4. Adjustable horizontal level, easy control welding horn.
5. Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn.
6. high-power machine, which is applied for Large workpiece.
7. Adopting alloy steel to keep frequency strong and stable.
8. All design and parameter above are adjustable upon customer special requirement .

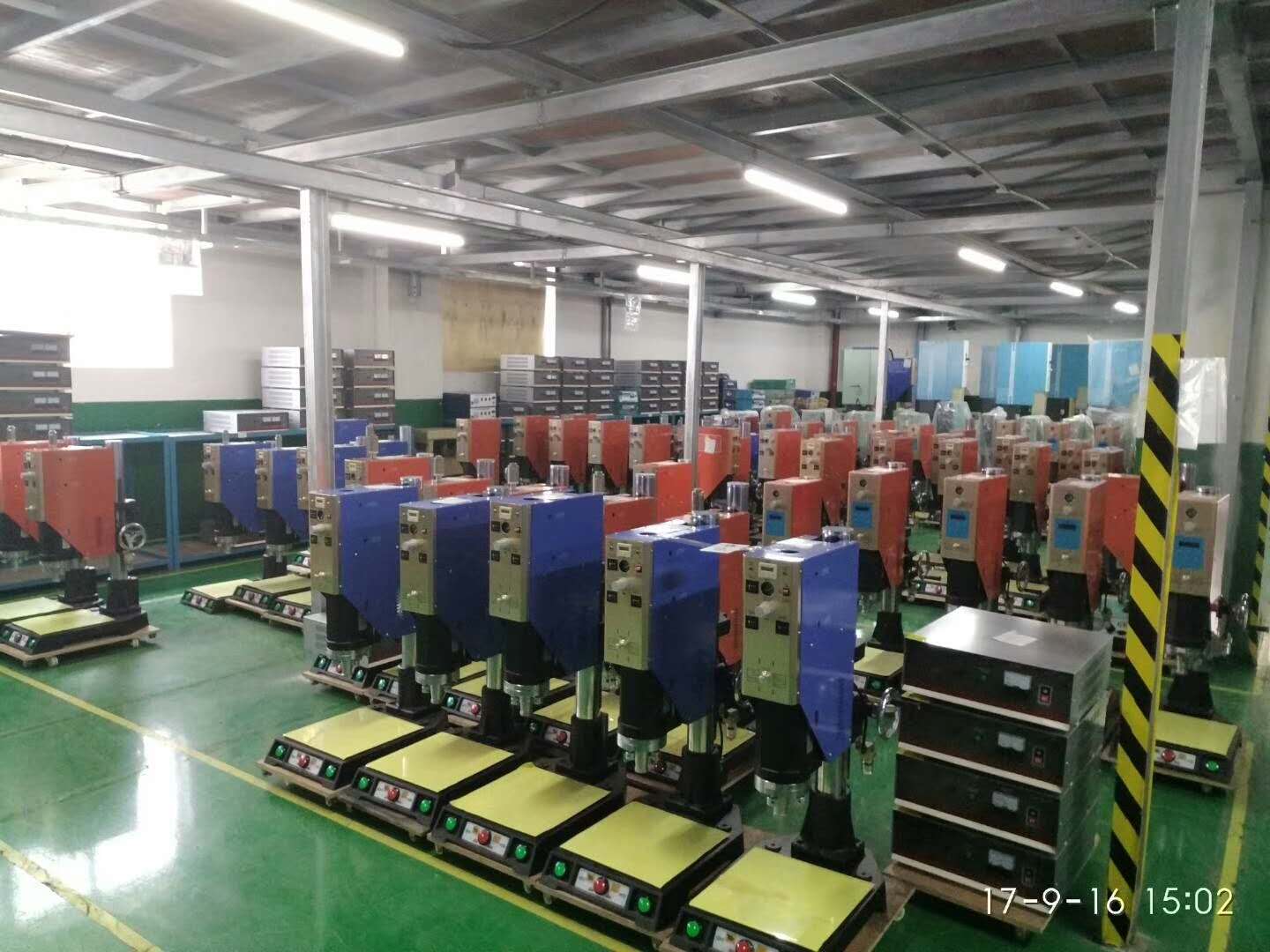

Equipment photos:

Technique Specification:

TypeSAO2000
Frequency20kHz/15kHZ
Power2600W
Input voltageAC220V
Horn journey75mm
Machine journey275-455mm
Oscillation time0.01-9.995
Air pressure1-7 bar
Welding capabilityΦ220mm

Operation Switch

Two-hand start and EMERGENCY BREAK button at front, external switches are optional.


Size(mm)

Press760x650x2225
Generator (Digital)412x320x118
Generator (Standard type)557x414x152

Weight

Press180kg
Generator (Digital)34kg
Generator (Standard type)

18kg


Mode


Digital: Time mode/ Energy mode / Vibration drop function

Standand: Time mode

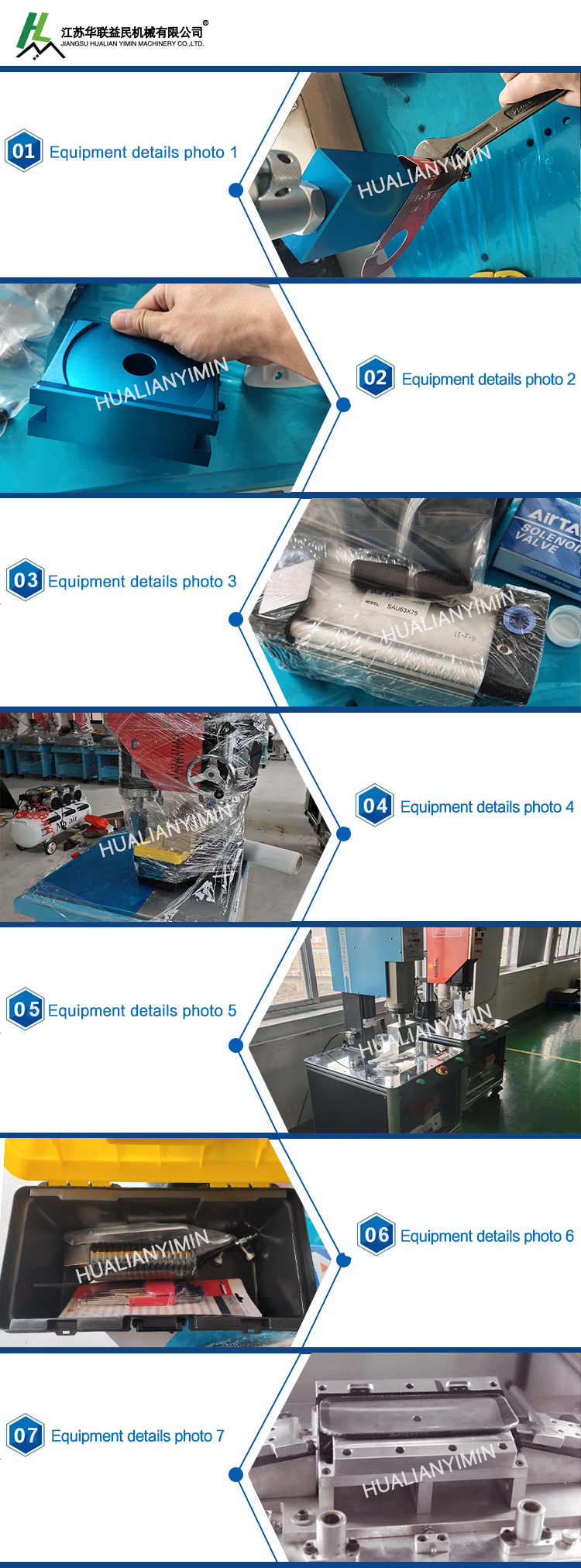

Equipment details:
Equipment advantages:
1,Two Height Adjustment Holder
Machine adopts with high precision independence rotary valve cylinder, make the filling volume accuracy higher.
2,Strong Welding Height Adjuster
The machine can adjust the height to weld the products of different height.
3,Strong Power Booster
Machine has many power model:
15K 1800W, 15K 2200W, 15K 2600W
20K 1500W, 20K 1800W, 20K 2000W
Different welding size work with different power and Khz.
4, 1-4 Power Level Adjuster
Machine has 1-4 Power Level to adjust, according to your work-piece welding size and welding strength to adjust a suitable welding power.

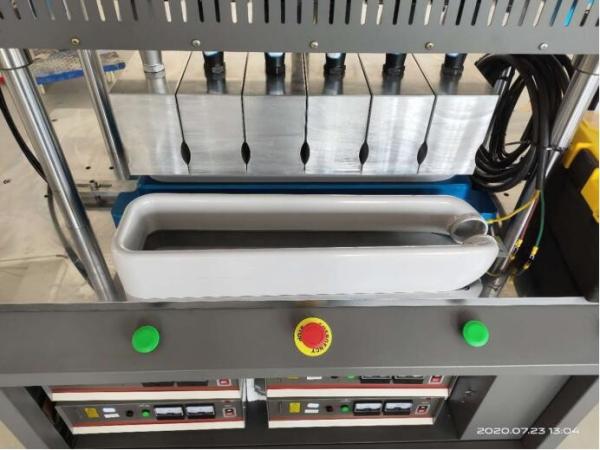

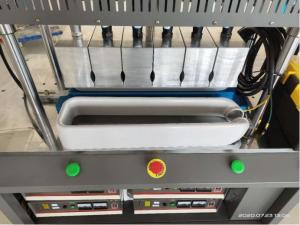

5,Safety Device - Emergency Stop
Once we meet any emergency situation, we can press this red button and machine stop Immediately.
6,Safety Working Way - Two Start Buttons
There are two Start Buttons, worker need to press these two buttons in same time to start to weld the work-piece, the possibility of clamping is prevented.
