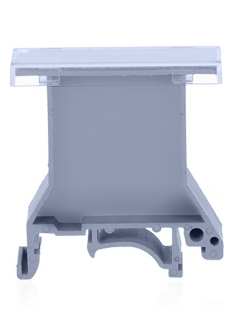

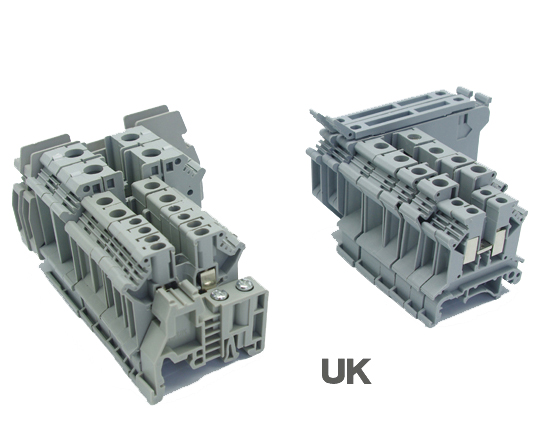

URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping

Contact Now

Add to Cart

Company Info.

Shenzhen Dihaola Industrial Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Specifications:

Condition: Brand New

standard	UL	IEC
rated voltage	600V	800V
rated current	40A	41A
cross section of conductor	26-10AWG	0.5-6mm2
thick / width / Height	8.2mm / 72mm / 51.5mm
height(NS35:7.5 / NS35:15 / NS32)	51.5/59/56mm
Rated impulse voltage	6KV
Wire stripping length	13mm
screw/torque for wiring	M4/1.2-1.5Nm
breaker block screw/torque for wiring	M3/0.6-0.8Nm
Plug gauge	A5
Insulated material/Flame retardant level	PA66/V0

Accessories

Mounting Rail

End Caps

End Stopper

Top Strip Jumper

Markers

Marker Holder
