| Categories | Rack Roll Forming Machine |
|---|---|
| Brand Name: | Sussman |
| Model Number: | SM-RB |
| Certification: | CE ISO 9001 |
| Place of Origin: | Jiangsu,China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set per month |
| Delivery Time: | 60days |
| Packaging Details: | Standard Packing with steel wire fixed and film coated |
| Material thickness: | 1.0-4.0mm |
| Length of the beam: | 1000-3800mm |
| Turn over system: | By cylinder, gear |
| PLC: | Delta brand |
| Clamping: | By pneumatic |
| Number of welding: | 4 sides |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Four Gas Gun Rack P Shaped Step 4.0mm Beam Welding Machine Line
Beam Welding Machine Main Specifications
| 1 | Welding edge | 4 sides of beam |
| 2 | Length of the beam | 1200-3800mm |
| 3 | Material thickness | 0.8-4.0 mm |
| 4 | Diameter of the welding wire | 0.8-1.0 mm |
| 5 | Model of the welding unit | TC-315F IGBT |
| 6 | Number of welding unit | 4 sets welding guns |
| 7 | Number of air cylinder | 18 sets |
| 8 | Main motor | 2kwX2 stepping motor |
| 9 | Voltage | 380V, 50HZ, 3 phase |
| 10 | Clamping | By pneumatic |
| 11 | Turn over system | By cylinder, gear and rack |
| 12 | Horizontal push to adjust the length | By liner guide way and fix by manual |
| 12 | Size of the machine | About 5.2mX1.0mX1.9m |
| 14 | Machine weight | About 1200kgs |
| 15 | Gas | CO2 or 80%Ar+20%CO2 |
| 16 | Length Tolerance | 0mm to -4mm(Maximum single side -2mm) |
| 17 | Welding speed | About 100-180pcs/hour |

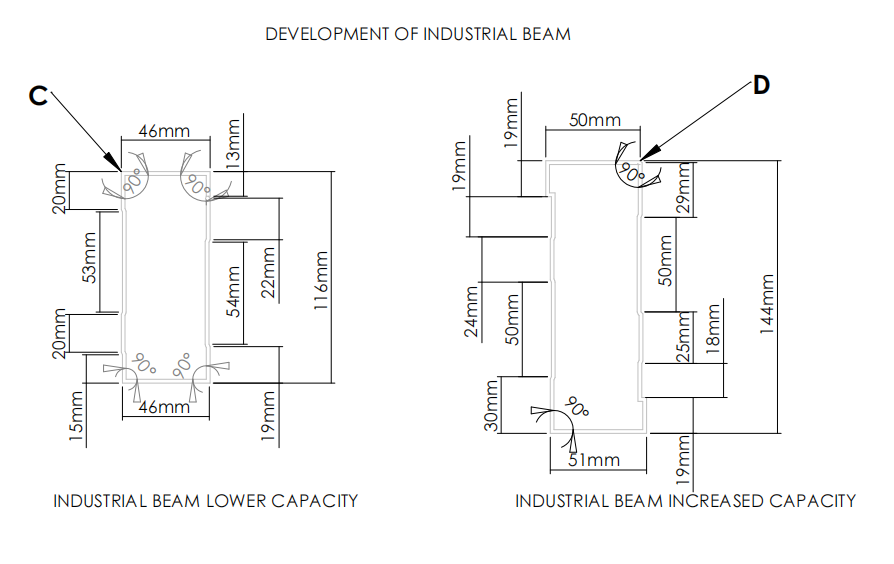

Rack Beam Profile reference
Beam welding machine application
This model is suitable for welding the beams which requirements to welding four lines of each end . The four welders operate simultaneously to complete the work at once,it is high efficiency.We adopte the high-quality components, the machine has a very long life.
|
