6000Psi CO2 Stainless Steel Air Regulator With Double Stage

Categories Stainless Steel Pressure Regulator
Brand Name: Yunyi
Model Number: YR31
Certification: CE
Place of Origin: China
MOQ: 1pc
Price: USD109-USD168/PC
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100PCS/week
Delivery Time: 7days
Packaging Details: Carton box
Item: 6000psi Stainless steel air CO2 pressure regulator
Material: stainless steel
Inlet pressure: 0-10000psi
Outlet pressure: 0-6000psi
Thread size: 1/2npt or 1/4npt
Lead time: 7 days
Ports: Shenzhen
Warranty: 2 years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

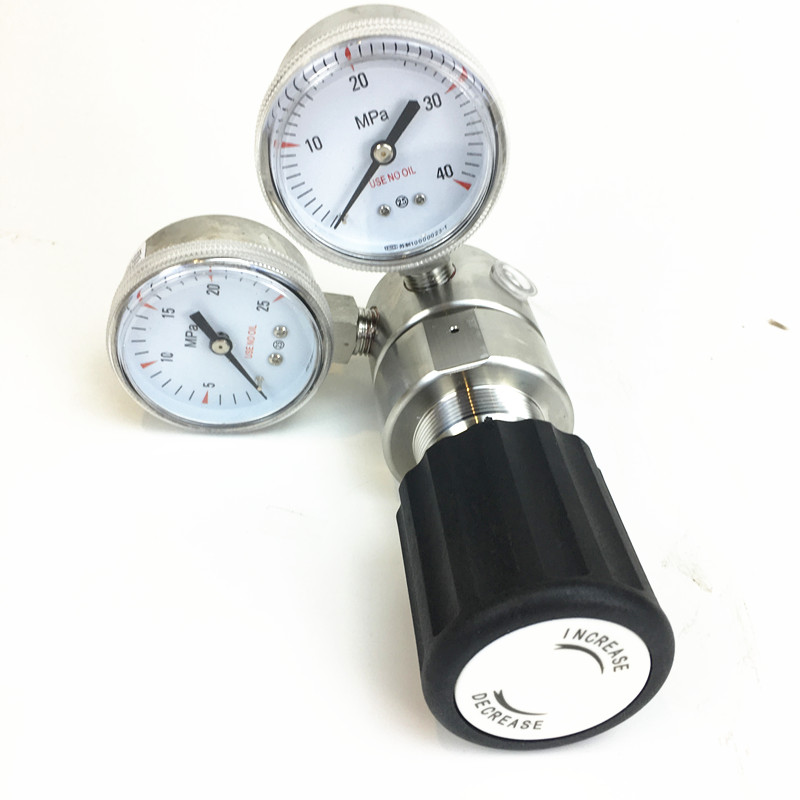

6000Psi CO2 Stainless Steel Air Regulator With Double Stage

6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator


Description of 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.


Design features of 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

  • Double stage decompression structure
  • Valve body and diaphragm adopt hard seal form
  • The internal structure is easy to clean
  • Inside is equipped with filter
  • Can be panel mounted
  • Can choose needle valve, diaphragm valve for outlet

Basic parameters of 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator


Max inlet pressure3000psi, 6000psig,10000psi
Outlet pressure0-250psig, 0-500psig, 0-1500psig, 0-3000psig. 0-4000psi,0-6000psi
Safety testing pressure1.5 times of maximum inlet pressure
Working temperature-23℃~ 74℃(-10°F ~ 165°F)
Leakage rate2*10-8 atm cc/sec He
CV value0.02, 0.06, 0.08, 0.2 or other customized
WeightAbout 1.5kg

Flow date


Outline drawing


Ordering information 6000psi Stainless Steel Water Air CO2 Gas Pressure Regulator

ModelValve materialInlet pressureOutlet pressurePressure gaugeInlet portOutlet port
YR31
  • 316L
  • Brass
  • Nickel-plated brass
  • 0-10000psi
  • 0-6000psig
  • 0-3000psig
  • 0-1500psig
  • 0-1000psig
  • 0-6000psig
  • 0-4000psig
  • 0-2000psig
  • 0-1000psig
  • 0- 500psig
  • With gauge (mpa)
  • With gauge (psig)
  • Without gauge

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom
