| Categories | Plastic Pipe Welding Machine |
|---|---|
| Brand Name: | Suntechmach |
| Model Number: | SHD355 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD3900.00 |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Delivery Time: | 15-30days |
| Packaging Details: | Wooden packing |
| Product name: | plastic pipe welding machine |
| Model number: | SHD355 |
| Capacity: | 90,110,125,140,160,180,200,225,250,280,315,355mm |
| Heating plate max.temperature: | 270 degree |
| Power: | 5350W |
| Weight: | 260kgs |
| Voltage: | 110v 220v 380v |
| Frequency: | 50hz 60hz |
| Warranty: | 12 Month |
| Function: | Cutting and welding plastic pvc, pe, pp tube |
| Company Info. |
| Hangzhou Suntech Machinery Co, Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

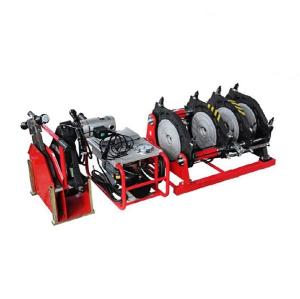

PIPE BUTT FUSION WELDING MACHINE plastic pipe welding machine
Plastic pipe welding machine Application
It is for welding plastic pipe such as PVC, HDPE pipe together.
Plastic pipe welding machine Technical Data
| Product name | Plastic pipe butt fusion welding machine |
| Model number | SHD355 |
| Capacity | 4",5",6",8",10",12",14"(with mould in inch) or 90,110,125,140,160,180,200,225,250,280,315,355mm |
| Heating plate max.temperature | 270 degree |
| Power | 5350W |
| Weight | 260kgs |
| Packing | 3 plywood case |
Plastic pipe welding machine Selling feature
Suitable for butt welding of plastic pipes and fittings made of PE, PP, and PVDF in a ditch in worksite or workshop.
Consists of basic frame, hydraulic unit, planning tool, heating plate, support for planning tool & heating plate, and optional parts.
Removable PTFE coated heating plate with separate temperature control system
Electric planning tool
Be made of light weight and high strength material; simple structure, small and delicate, user friendly.
Low starting pressure ensures reliable welding quality of small pipes.
Changeable welding position enables to weld various fittings more easily.
High accurate and shockproof pressure meter indicates clearer readings.
Other size in option
We have size of 160mm, 200mm, 250mm, 315mm, 355mm,450mm,630mm,800mm, 1200mm,1600mm.
|
