Categories | Facial Tissue Paper Making Machine |
---|---|
Brand Name: | Xinyun |
Model Number: | XY-GU-20A |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1 |
Price: | USD 12000-40000 set/sets |
Payment Terms: | L/C, T/T, Western Union, MoneyGram,cash |
Supply Ability: | 200 set/sets per year |
Delivery Time: | 60days |
Packaging Details: | Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage. |
speed: | 800-1000 sheets/line/min |
unfold size: | 200mm(L)*200mm(W) |
folding size: | 100mm(L)*200mm(W) |
full embossing unit: | steel to steel or steel to rubber embossing rollers |
edge embossing unit: | steel to steel edge embossing |
automatic counting unit: | malposition counting and Ink marked counting |
Air compressor: | prepared by buyer |
power: | 7.5-35KW(380V 50HZ 3Phase) |
overall size: | depends on machine model |
weight: | 2-10T |
Full automatic hot sale V fold facial tissue paper making machine
This machine is for converting Facial Tissue Paper,enjoys automatic Embossing,V folding, Cutting and Counting function.Finished facial tissue paper is used widely in hotel, office and restaurant etc, that is convenient and sanitation. We can make the machine with 2-14 output lines and offer customize service.Box drawing type facial tissue machine use tissue jumbo roll to Process folded into "V" type paper processing equipment. The machine adopts the vacuum adsorption principle and auxiliary manipulator folding.
product description
speed | 800-1000 sheets/line/min |
unfold size | 200mm(L)*200mm(W) |
folding size | 100mm(L)*200mm(W) |
full embossing unit | steel to steel or steel to rubber embossing rollers |
edge embossing unit | steel to steel edge embossing |
automatic counting unit | malposition counting and Ink marked counting |
Air compressor | prepared by buyer |
power | 7.5-35KW(380V 50HZ 3Phase) |
overall size | depends on machine model |
weight | 2-10T |
jumbo roll size | 420-2800(W) 1200mm(D) |
Video Link:https://youtu.be/T8nIJ2sRvbc
Embossing

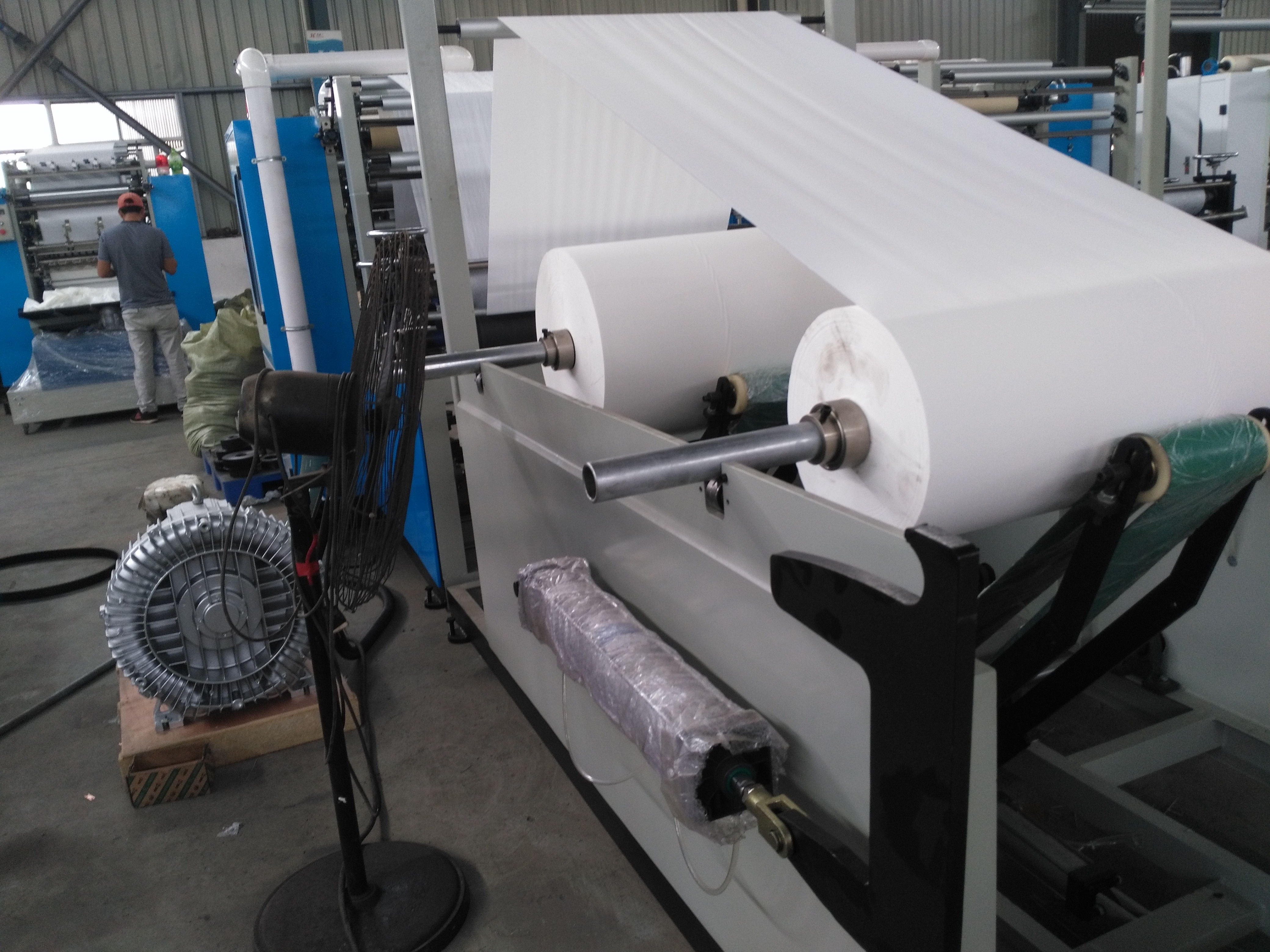

jumbo roll stand

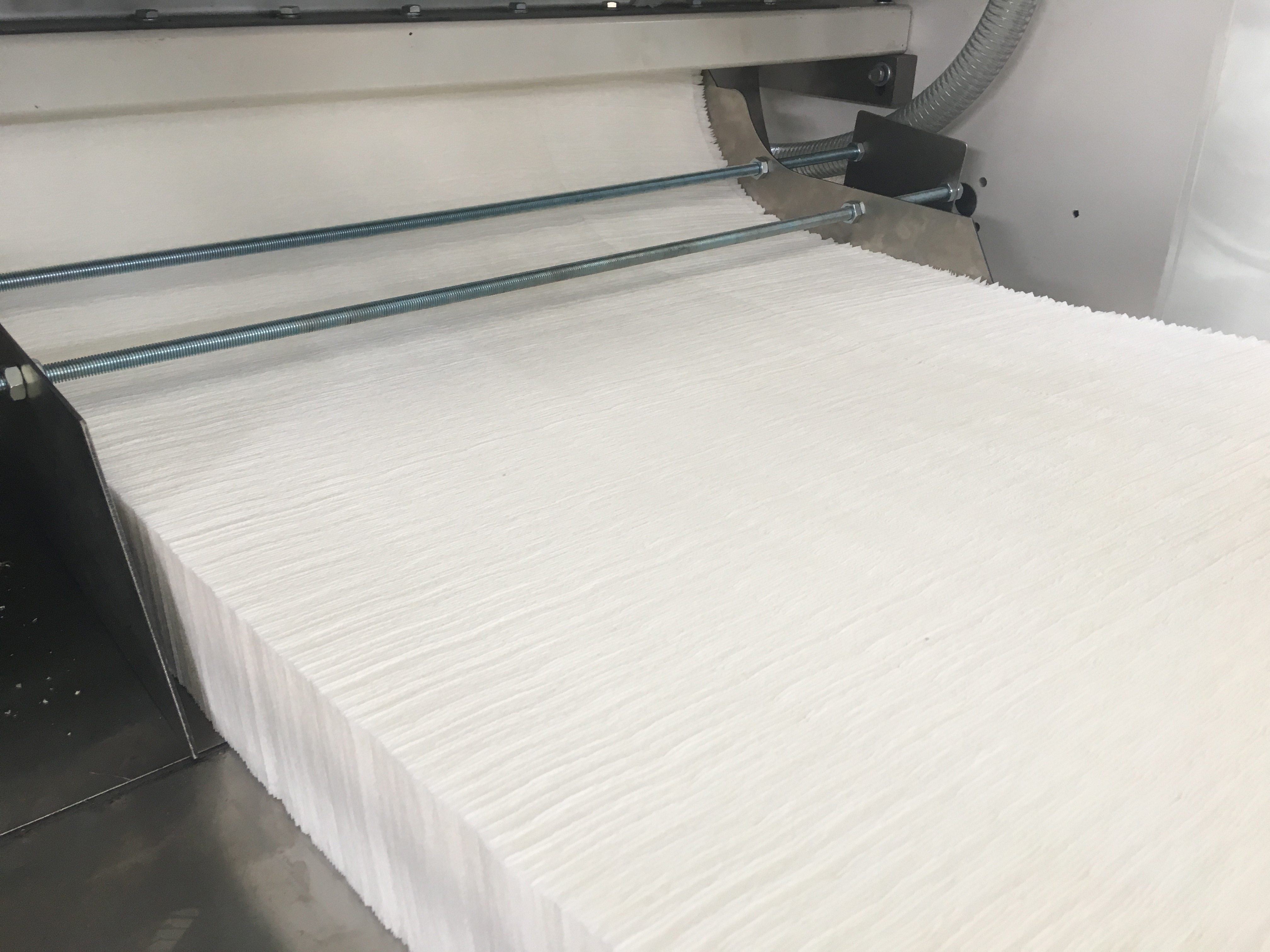

production
edge embossing
![]() |
