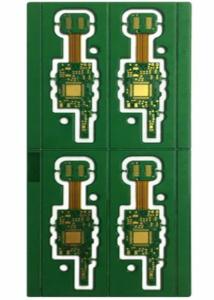

6 Layer 35um Copper Rigid Flex PCB Fr4 Tg170 FPC Immersion Gold

6 Layer Fr4 Tg170 Rigid PCB Mix with 2 Layer Pi Flex FPC, Immersion Gold Rigid-Flex PCB

Abis Circuits Co., Ltd is a professional PCB manufacturer which was established on Oct, 2006 and focus on double side, Multilayer and HDI pcb mass production.

PCB we can make:

1. Rigid, Flex, Rigid-Flexible PCB.

2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.

3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,

4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.

5. Quantities range from prototype to medium & big batch production.

Base Product Information:

Rigid-Flex PCB – Technical specification

What Is the Difference Between a Flex and a Rigid-Flex Printed Circuit Board?

The rigid-flex printed circuit board gives you the best of both worlds. A rigid-flex PCB combines the flexibility of flex circuits with the durability of a rigid PCB. A flex-printed circuit board has only flexible materials, usually polyimide or polyester-based. They can be single-layer, double-layer or multilayer boards. A rigid flex PCB has both flexible and rigid materials, with flexible layers sandwiched in between rigid layers with conductors and plated through holes that connect them to the other layers.

Flexible circuit boards by themselves may not stand up to the wear of certain challenging applications, but standard rigid boards tend to be heavy and take up a lot of space. Combining rigid boards with flexible circuits reduces weight and space, giving you a streamlined product you can use in a wide variety of industrial situations.

Lead Time:

·

Why choose us:

1, With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.

2, We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.

3, We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback

Our mission:

PCBs for demanding customers, on time with zero defects, produced sustainably at the lowest total cost. Manufacturing many different types of PCBs in smaller series (High-mix, Low-volume) involves constantly adjusting, adapting and problem solving.

Our responsibility:

We know that the PCB is a critical key component for our customers. And we know for sure that anything can happen during the complex production process involved – and it often does. In our world, taking full responsibility means a lot of things, including a responsible and sustainable approach in everything we do – socially, environmentally and ethically. When a problem occurs, we try as hard as we can to understand the problem and find a solution. Our mindset is that we own the problem and don’t leave until we have cleared it up.

FAQ:

Q1: How can I get a quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber

Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?

Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality checking always.

Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).

Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working file be approved, production will start.

Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity

Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.

Q8: Does ABIS CIRCUITS bevel gold fingers?
A: Yes. A standard 45-degree bevel, also bevel at 15 or 30 degrees upon request. For multi-layer board, please ensure there is adequate back set for the bevels.

Certifications:

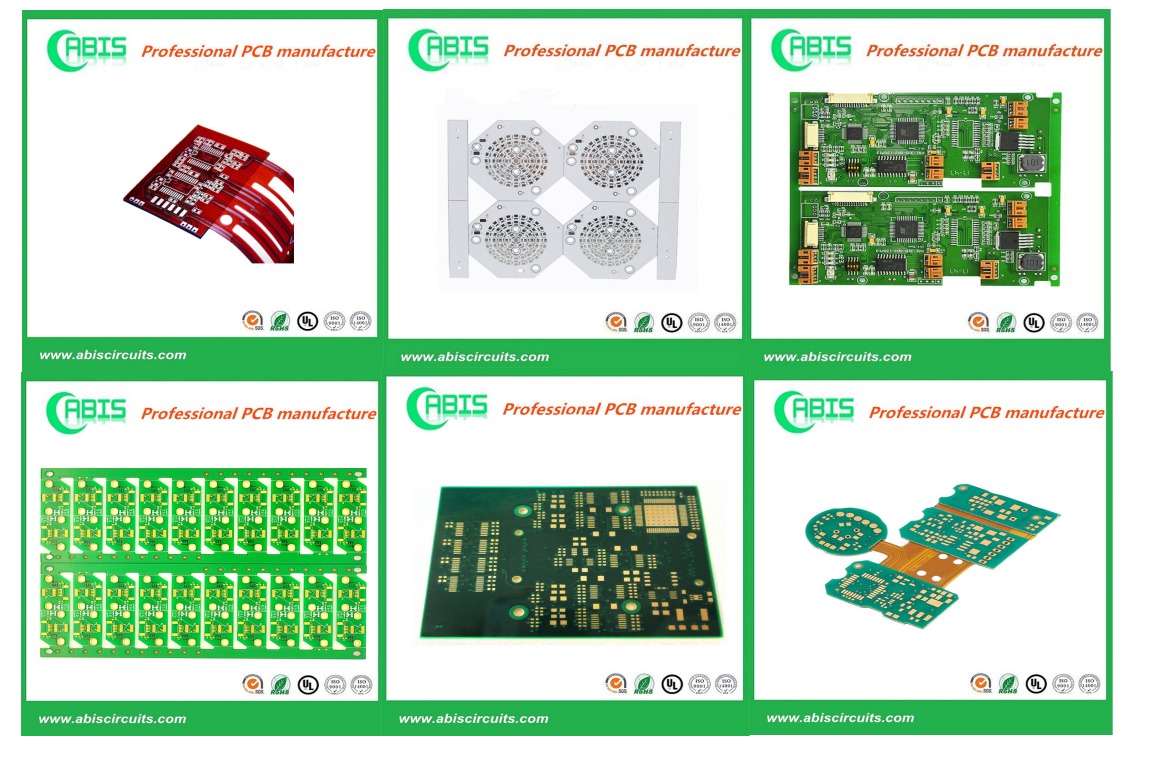

PCBs we made:

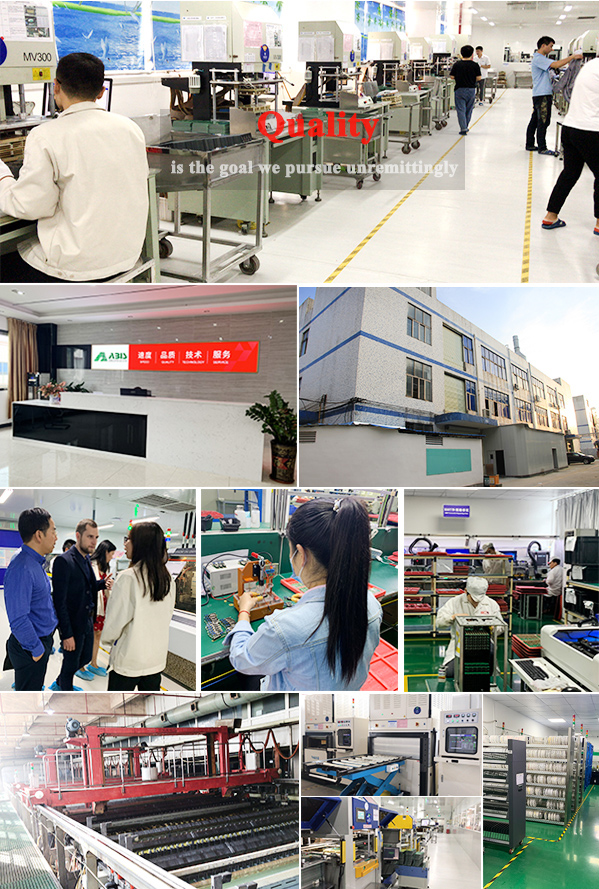

Factory View:
