| Categories | Automation Connector |
|---|---|
| Brand Name: | Rigoal |
| Model Number: | M5 |
| Certification: | CE , Rohs |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | PE bag and Cartons |
| Connector type: | M5 panel mount connector |
| Contacts: | 3P 4P |
| Gender: | Male |
| Rated Current: | 1A |
| Rated Voltage: | 60V |
| Application: | Automotive |
| Oriental: | straight |
| Protection level: | IP67 or IP68 |
| Contact resistance: | ≤10mΩ |
| Pollution degree: | III |
| Company Info. |
| Shenzhen Rigoal Connector Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
M5 Waterproof Straight Male Front Panel Mount Connector Plug Cable
Quick details
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C
| Plug body | TPU/Black |
| Coupling nut | Brass/Nickel |
| Contact carrier | PA/Black |
| Pin | Brass/Gold |
| O-ring | NBR |
| IP degree | IP67 |
| Insulation | ≥10 9Ω |
| Forward resistance | ≤5mΩ |
| Rated current | 1A |
| Rated voltage | 60V |
| Pollution degree | 3 |
| Temperature range | -40…80 ℃ |
| Mechanical operation | ≥100 |
| Maximum cable diameter | 3.8mm |
| Wire gauge (AWG) | 22AWG / 24AWG |
| Wire gauge (mm²) | 0.34mm² / 0.25mm² |
| Jacket material | PVC |
| Ambient Temperature | ‘-25°C ~ +85°C |
| Insert | PA66+GF |
| Contacts | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| Connector locking system | Screw locking |
| Mechanical operation | >100 mating cycles |
| Rated current | 1A |
| Rated voltag | 60V |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
.

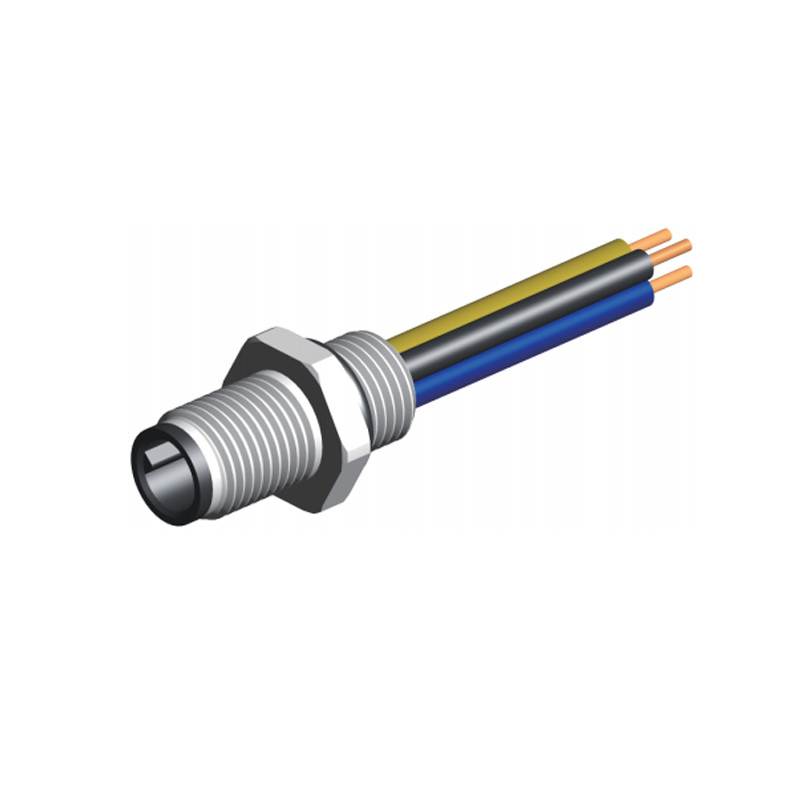

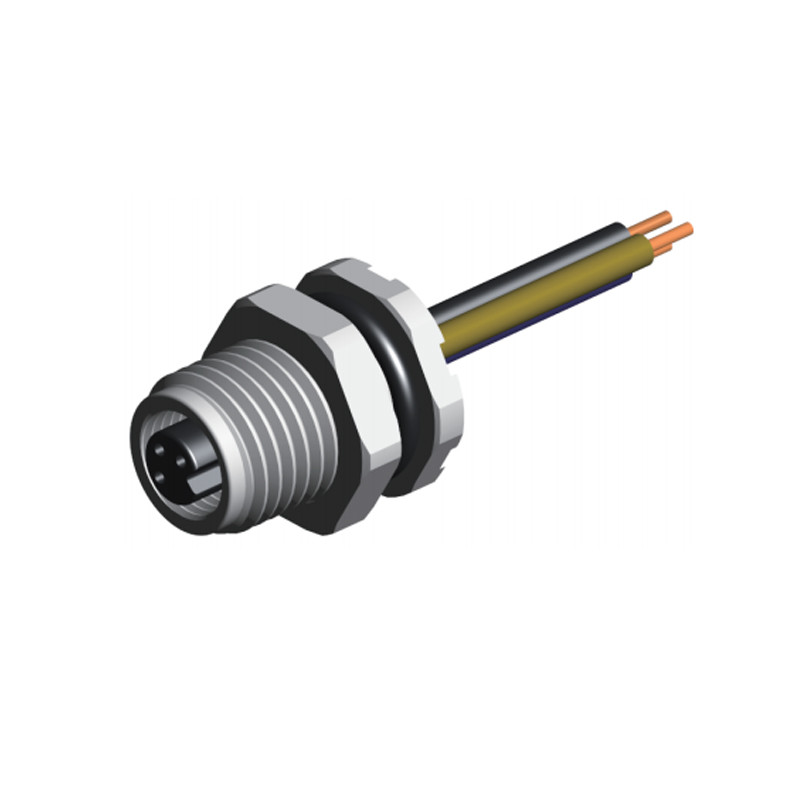

Product photos
Our service
1) Low cost but good quality in ip67 waterproof in locked condition
with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal
product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) 7 years quality assurance.
|
