Brand Name: | Rigoal |
Model Number: | M19 connector |
Certification: | CE , RoHS |
Place of Origin: | China |
MOQ: | 100pcs |
Price: | negotiable |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100000pcs per month |
Delivery Time: | 10-15 working days |
Packaging Details: | PE bag and Cartons |
Connector Number: | M19 |
Gender: | female and male |
Pins: | 8pins |
Color: | Black |
Current Rating: | 5A |
Temperature Rating: | -40 °C ~+105 °C |
Type: | Field assembly |
Protectiong Level: | IP67 |
Mating style: | Quick lock |
Company Info. |
Shenzhen Rigoal Connector Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |

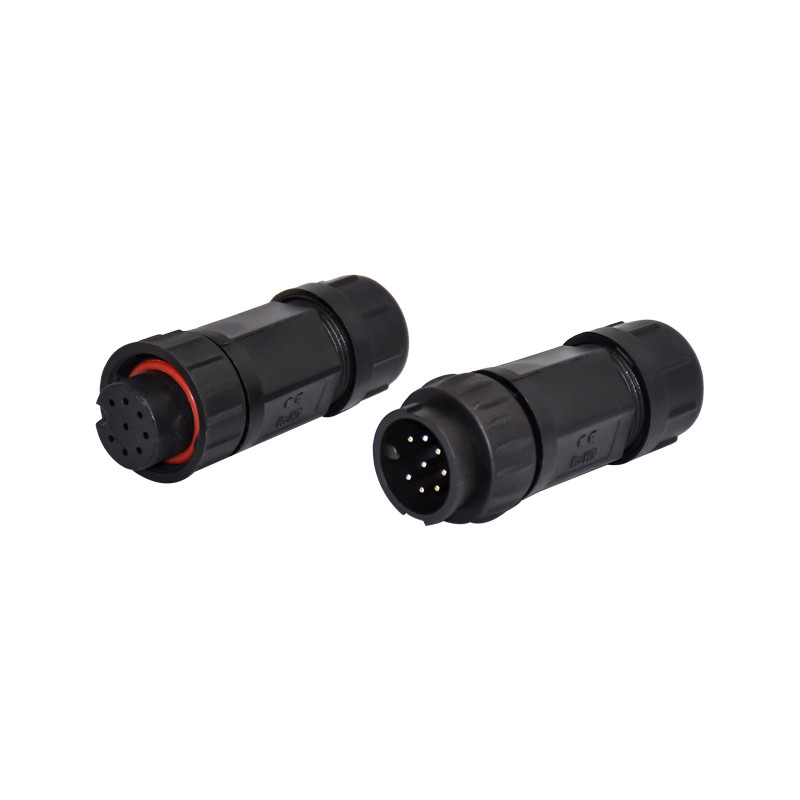

Outdoor Plastic M19 8 Pin Amp Superseal Circular Waterproof Assembly IP67 Connectors
Product description
Model number: M19
Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"
Sealing: Silica Gel
Contact: Brass with gold plated
Mating style: Quick lock
Temperature Rating: -40°C~+105°C
Current rating:15A
Voltage rating: 300V
Waterproof Rating: IP67
Contact resistance: <=20mΩ
Insulation resistance: 1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range: 2/3/4/5/6/7/8/9/10/12/14/18 pin.
Electrical data
Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
Contact | Brass with Gold Plated |
Sealing | Silica Gel |
Current Rating | 25AMP |
Voltage Rating | 600V |
Contact Resistance | <10mΩ |
Insulation Resistance | 1000MΩ at DC 500V |
Breakdown Voltage | 1.5KV/1minute |
Temperature Rating | ‘-45°C~+105°C |
Durability(Plug/Unplug) | 3000 times |
Waterproof Rating | IP67 IP68 waterproof |
Cable Max. Diameter | 11mm(<=2.5mm2) |
Pins Range | 2, 3, 4, 5, 6, 7, 8,9,10,12,14,18 |
Certificate | CE; RoHS |
Product photos
FAQ
Q1: Are you a manufacturer?
A1: We are manufacture, we can provide one-stop station service for
connectors and cables with factory price.
Q2:How about your quality?
A2: We guaranteed that 100% in good quality, the price will be nicer than other same suppliers.
Q3: After-sales service
A3: All the inquiry will be response within 24 hours, the
commucation will be effective.
Q4: Is it customizable?
A4: We offer you with OEM oders but with smaller quantity than
others
![]() |
