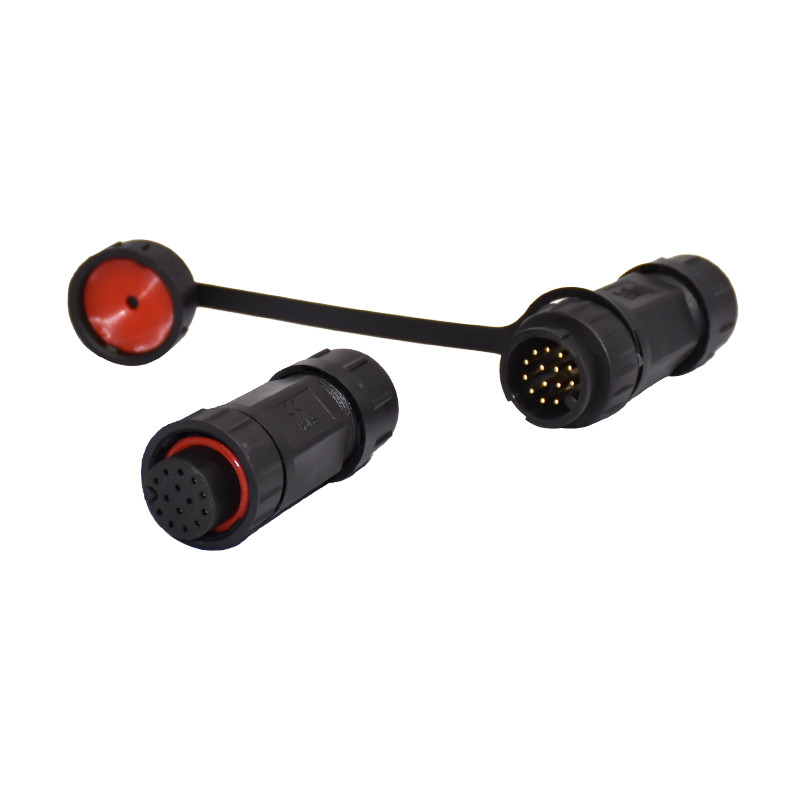

M19 Waterproof Cable Connector 12 Pin Data Screw Locking Connector

Waterproof Cable Connector 12 Pin Data Connector IP67 M19 Screw Locking Connector

Product description

• Rated current: 5A
• 2-4PIN power supply, 5-9PIN signal,multi pin vaialble
• IP67 rating
• Voltage rating: 300V
• Cable Range: 3~11mm
• UL, TUV, CB, CCC, CE, RoHS approved

Electrical data

Model number: M19

Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"

Sealing: Silica Gel

Contact: Brass with gold plated

Mating style: Quick lock

Temperature Rating: -40°C~+105°C

Current rating: 5A

Voltage rating: 300V

Waterproof Rating: IP67

Contact resistance: <=20mΩ

Insulation resistance: 1000MΩ at DC500V

Breakdown voltage: 1.5KV/1 minute

Pins range: 2/3/4/5/6/7/8/9/10/12/14/18 pin.

Material

Product photos

FAQ

Q1. Are you a factory or trading company?
A: We are a factory

Q2. What about the production lead time?

It will take about 10 days for our standard product.

Q3. Do you have any MOQ (minimum order quantity) limit?

Q4. Can you make customized drawings or designs?

Customer’s drawings and designs are welcome, as we have our own professional R&D team to provide.

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
