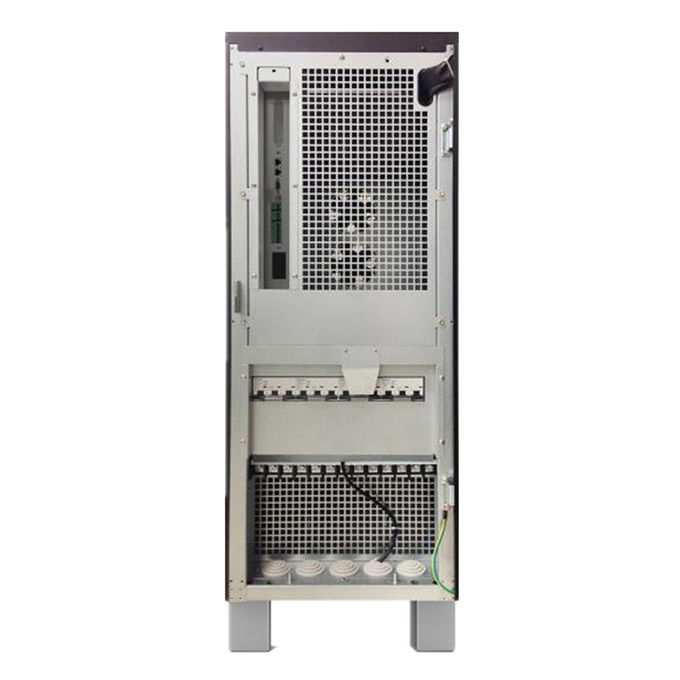

400V 64KW Low Frequency Online Ups 80KVA 3 Phase Pure Sine Wave

Categories Low Frequency Online UPS
Place of Origin: Guangdong, China
Brand Name: ZGD
Model Number: ZGD3380
Certification: ISO14001/ISO9001 CE ROHS
Packaging Details: Splint wooden cases
Supply Ability: 10000 Set/Sets per Day
Price: $2100.00/Sets 1-9 Sets
MOQ: 10 sets
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 7~15 working days
Phase: Three Phase
Protection: Short Circuit
Weight: 471kg
Application: INSTRUMENTATION
Product name: Low Frequency Online UPS
Capacity: 80KVA
Battery Type: Lead Acid Battery
Input voltage: 380V/400V/415V
Output: 380V/400V/415V
Port: shengzhen
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

400V 64KW Low Frequency Online Ups 80KVA 3 Phase Pure Sine Wave

80KVA Low Frequency Online Ups 3 Phase 380V/400V/415V Pure Sine Wave UPS

Maximum battery care:
Battery deep discharge protection;
Temperature compensating charger;
Built-in automatic and manual battery test feature.

Simple to install:
Capability to install the UPS into any distribution system(neutral not required on rectifier input);
Capability to separate the rectifier/bypass power networks and to power these from two separate sources, without Galvanic isolation (Necessary on UPS without an output transformer).

High reliability:
Extremely high short-circuit current to ensure compatibility with the most difficult transformer applications (lighting, drives and industrial processes) and an isolation transformer on the inverter output;
Full microprocessor control with no-break static and manual bypasses;
IGBT technology.

Other characteristics
0.8 power factor make ZGD330 suitable for powering ICT and Industrial loads;
High level diagnostics: event log with 128 messages, states, measurements and alarms - available from the built-in LCD with several languages;

Back feed protection: to avoid energy feeding back into the mains supply cause a fault occur.










Specification

ModelZGD33 80K
CAPACITY64 KW
INPUT
Nominal Voltage3 x 380VAC/400VAC (3Ph + N)
Acceptable Voltage Range305VAC ~ 460VAC
Frequency50/60 Hz ± 10 %
INVERTER
Nominal Voltage3 x 380VAC/400VAC (3Ph + N)
PrecisionStationary: ±1% ; Transitory: ±5% (load variations 100-0-100%)
Frequency50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz
Max. Synchronisation Speed±1 Hz/s
WaveformPure Sinewave
Total Harmonic Distortion (THDv)< 2% (Linear Load) ; < 5% (Non-linear Load)
Phase Displacement120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load)
Dynamic Recovery Time3 cycles at 98 % of the static value
Admissible Overload110% for 10min; 150% for 60sec ; >160% for 200ms
Admissible Crest Factor3:1
Admissible Power Factor0.6~1 (inductive or capacitive)
Current LimitHigh overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit
STATIC BYPASS
TypeSolid state
Voltage3 x 380VAC/400VAC (3Ph + N)
Frequency50/60 Hz
Activation CriterionMicroprocessor control
Transfer TimeZero
Admissible Overload150% for 1 hour; 180% for 30sec; >200% for 200ms
Transfer to BypassImmediate, for overloads above 160%
RetransferAutomatic after alarm clear
BATTERY & CHARGER
Battery Type and Numbers12VDC x 32 pcs (29~32 pcs adjustable)
Nominal Battery Voltage384 VDC (Based on 32pcs batteries)
Charging MethodCC/CV
Charging CurrentDefault: 10A. Max. 40A
Charging Voltage432 VDC (Based on 32pcs batteries)
