2 Phases 17HS4401 1.5A DC 3.3V Nema 42 Stepper Motor For 3D Printer

2 Phases 17HS4401 1.5A DC 3.3V Nema 42 Stepper Motor For 3D Printer

1.5A 3.3V3D Printer Motor DC 42 Stepper Motor 17HS4401


Description of Stepper Motor 17HS4401:

Product name:3D Printer Extruder Feeding Wheel
Number of phases: 2 phases
Holding torque: 400mN. m Min (two-phase energization)
Phase resistance: 2.22 soil 10% (20C)
Phase inductance: 3.8mH ± 20% (1kHz1Vrms)
Rotor inertia: 57g.cm^2
Motor weight: 288g Ref.
Insulation resistance: 100MQ Min. (DC 500V)
Insulation class: B(130°C).
Step angle: 1.8+5% degrees/step voltage: 12V
Resistance level: 10.0+10%Q2/phase
Inductance value: 20+ 20%MH/phase
Bit lead style: AWG26 UL1007
Holding torque: 48N.cm sensitive
Braking torque: 2.6N.cm

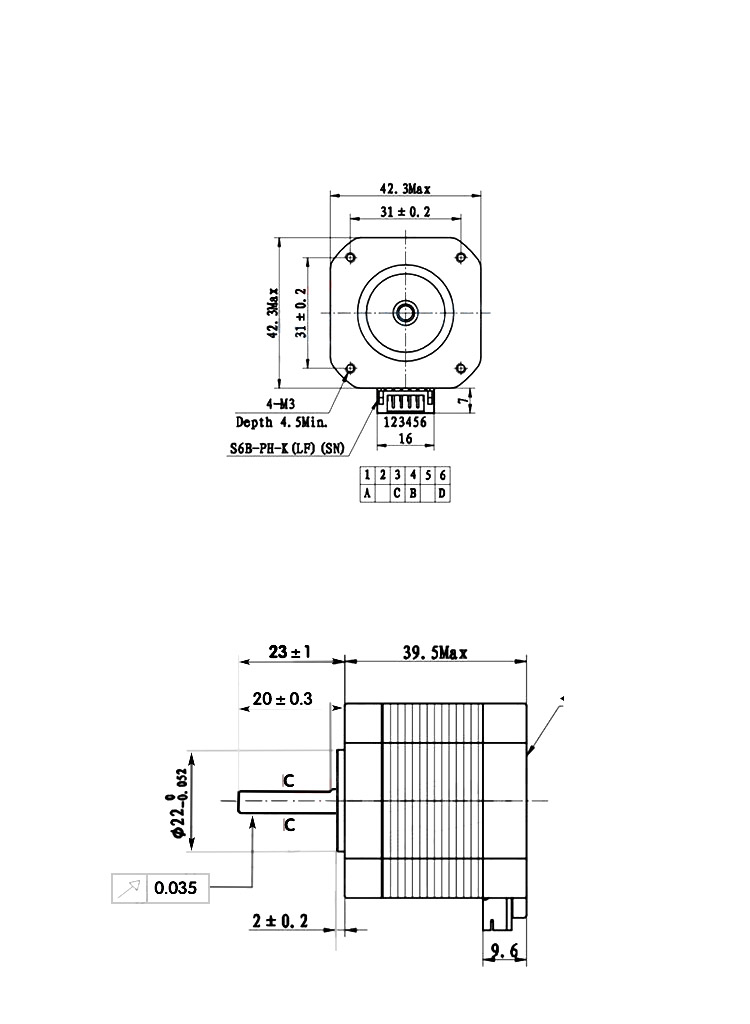

Product Parameters:

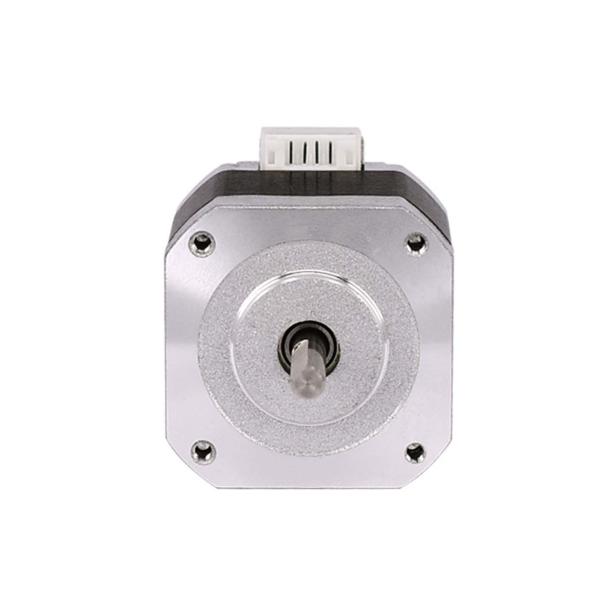

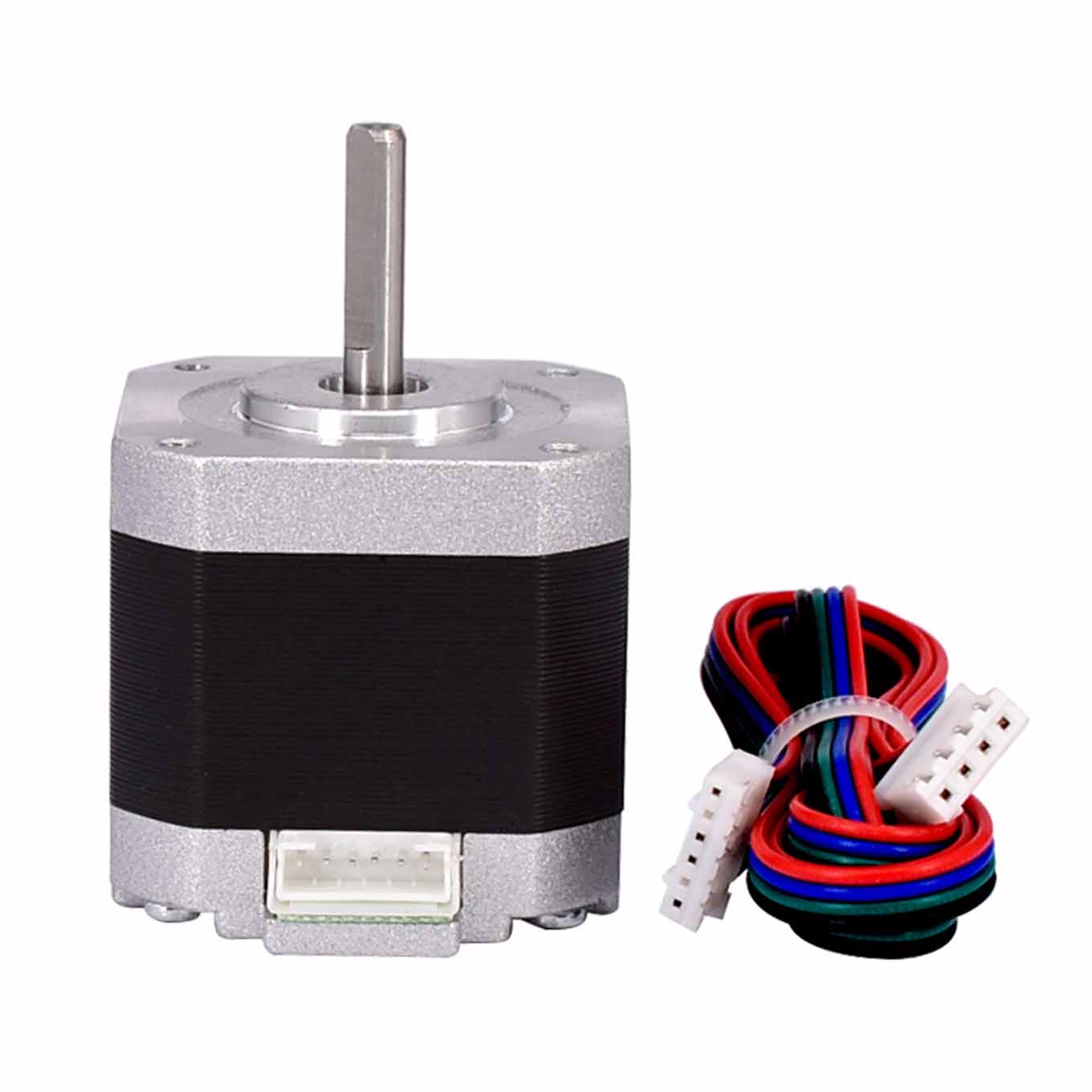

Pictures of 17HS4401 Stepper Motor :
