Brand Name: | Prostepper |
Model Number: | PEM20H240E2KzS |
Certification: | CE.ISO.RoHS. |
Place of Origin: | JIANGSU,CHINA |
MOQ: | 1pcs |
Price: | Negotiable |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 250000pcs per /month |
Delivery Time: | 7-25 work days |
Packaging Details: | 38.5*24*23 |
Application: | Mask Machine |
MOQ: | 10pcs |
Encoder resolution: | 1-1024Magnetic encoder |
stepper motor current: | 0.8A |
Dielectric Strength: | 500V AC 1min |
Temperature Rise: | 80°Cmax |
Insulation Resistance: | 100MΩ Min . 500V DC |
Company Info. |
Changzhou Prostepper Co.,Ltd. |
View Contact Details |
Product List |
Nema8 0.8A Encoder Stepper Motor 1.8 Degree
Product description
Specifications

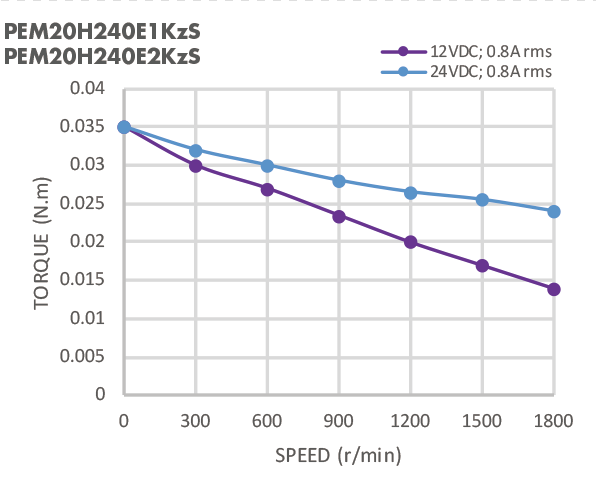

Encoder Stepping Motor Standard 1.8°
Mode No:PEM20H240E1KzS
Holding Torque | 0.036N.m |
Related Current | 0.8A/Phase |
Resistance | 6.5Ω/Phase |
Inductance | 2.2MH/Phase |
Inertia | 2.9g.cm² |
Index | √ |
Output | Differental |
Encoder Resolution | 1000CPR |
Encoder Stepping Motor Standard 1.8°
Mode No:PEM20H240E2KzS
Holding Torque | 0.02N.m |
Related Current | 0.6A/Phase |
Resistance | 6.5Ω/Phase |
Inductance | 2.2MH/Phase |
Inertia | 2.9g.cm² |
Index | √ |
Output | Differental |
Encoder Resolution | 2000CPR |
Stepper motors are diverse in their uses, but some of the most common include:
Operation of Stepper Motor:
Stepper motors operate differently from DC brush motors, which rotate when voltage is applied to their terminals. Stepper motors, on the other hand, effectively have multiple toothed electromagnets arranged around a central gear-shaped piece of iron. The electromagnets are energized by an external control circuit, for example, a microcontroller.
![]() |
