| Categories | AC Servo Drive |
|---|---|
| Brand Name: | Vector |
| Model Number: | VEC-VC-00623H-M-E |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 kit |
| Price: | USD150-350 / kit |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 kits/month |
| Delivery Time: | 3-5 work days |
| Packaging Details: | 280*208*78mm,375*290*155mm |
| Voltage: | 220V |
| Power: | 1.5 KW |
| Phase: | Single Phase, Three Phase |
| Communication Protocols: | Modbus/CANopen/EtherCAT |
| Encoder: | 2500 lines Incremental Hall Encoder |
| Rated Current: | 6A |
| Input: | Analog / Pulse |
| Control Mode: | Position / Speed / Torque |
| Application: | printer,packing machine |
| Frequency: | 4KHz |
1.5 KW Three Phase AC Servo amplifiers With 2500 lines Incremental Hall Encoder Apply to Printing Machine
&https://youtu.be/MLOjiU3erJs;
Vector Tech. Focus on Servo system for more than 17 years.
More Flexible, More Accurate
Type: AC Servo Drive
Power Covers: 200W-110KW, OEM Uper 250KW
Phase: Single/Three Phase 220V
Communication Type: Modbus / CanOpen / EtherCAT
Control Mode: Location, Speed and Torque Control Mode
Encoder Type : 2500 line incremental + Hall encoder; 2500 line
incremental; 17/23 bit Tamagawa absolute encoder;
24 bit Nikon absolute encoder
Products Description
| Products | AC Servo Drive |
| Brand | Vector |
| Model No. | VEC-VC-00623H-M-E |
| Power | 1.5KW |
| Voltage | 220V |
| Phase | Three Phase |
| Rated Current | 6A |
| Communication Protocols | Modbus/CANopen/EtherCAT |
| Encoder | 2500 line incremental + Hall encoder; |
How is the Servo Drive works? The Location control model, Speed control model and Trogue control model.
| Voltage | Control Mode | Single-phase / three-phase full-controlled rectification SVPWM modulation |
| Encoder | Encoder Feedback | 2500 pulse incremental + Hall encoder; 2500 pulse incremental; 17bit Tamagawa absolute encoder; 23bit Tamagawa absolute encoder; 24bit Nikon absolute encoder; |
| Pulse Command Input | Pulse Type | Differential input,Open collector |
| Frequency Range | Differential input:0-500kHz,pulse width greater than 1us Open collector: 0-300kHz,pulse width greater than 2.5us | |
| Pulse Mode | pulse + direction; AB pluses; CW+CCW; | |
| Analog Input | Voltage Range | -10V to 10V |
| Input Impedance | 10kΩ | |
| Maximum Frequency | 1.5kHz | |
| DI/DO Interface Type | NPN/PNP | |
| Communication | Modbus/CANopen/EtherCAT | |
| Position Mode | Command Input Method | Pulse Command Internal Planning Position > Plan by target position, speed, acceleration and deceleration time > Trapezoidal speed curve > Cubic speed curve > Absolute / relative command mode |
| Instruction Smoothing Mode | Low Pass Filtering / Median Filtering | |
| Electronic Gear Ratio | N/M;(M=1~2147483647,N=1~2147483647) | |
| Torque Limit | Internal Torque Limit / Analog Torque Limit | |
| Feedforward Compensation | Speed Feedforward / Torque Feedforward | |
| Torque Compensation | Fixed Torque Compensation / Analog Torque Compensation / Automatic Torque Compensation; | |
| Speed Contol Mode | Command Input Type | Pulse Frequency / Analog / Internal Planning Speed |
| Speed Control Range | 1~max speed | |
| Bandwidth | 1kHz | |
| Torque Limit | Internal Torque Limit / Analog Torque Limit | |
| Instruction Smoothing Mode | Low Pass Filtering / Median Filtering | |
| Feedforward Compensation | Torque feedforward | |
| Torque Compensation | Fixed Torque Compensation / Analog Torque Compensation / Automatic Torque Compensation; | |
| Torque Control Mode | Command Input Type | Internal Torque Reference / Analog Control Torque |
| Torque Compensation | Fixed Torque Compensation / Analog Torque Compensation / Automatic Torque Compensation; | |
| Speed Limit | Internal Speed Limit / Analog Speed Limit |

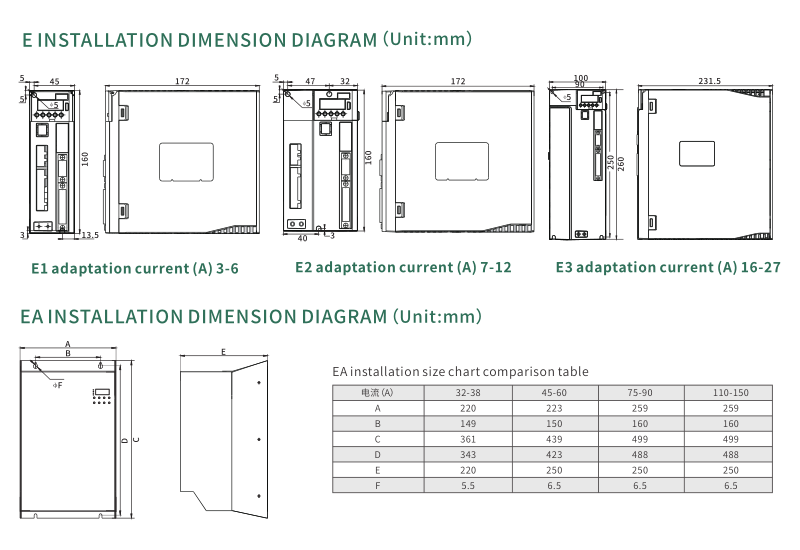

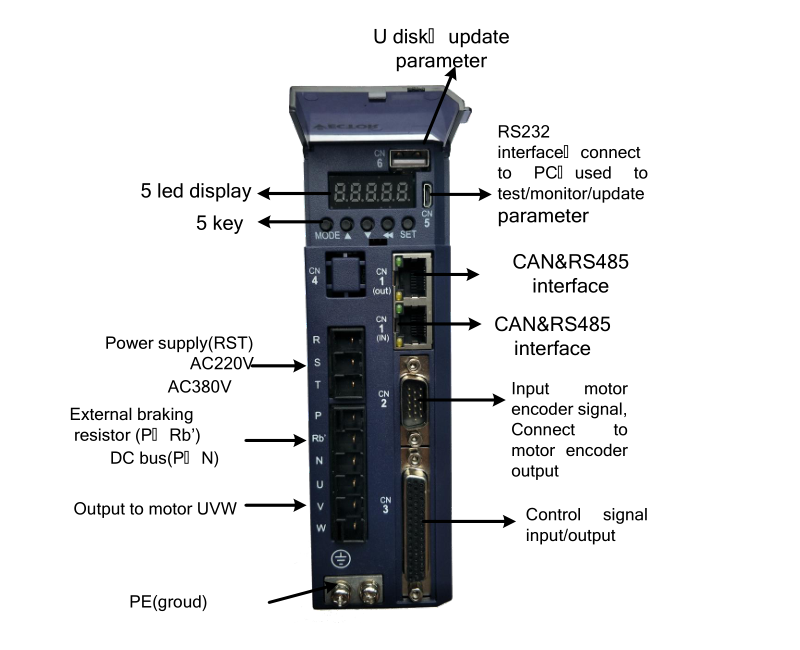

Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?
Accessories
| Accessory name | Image | ||

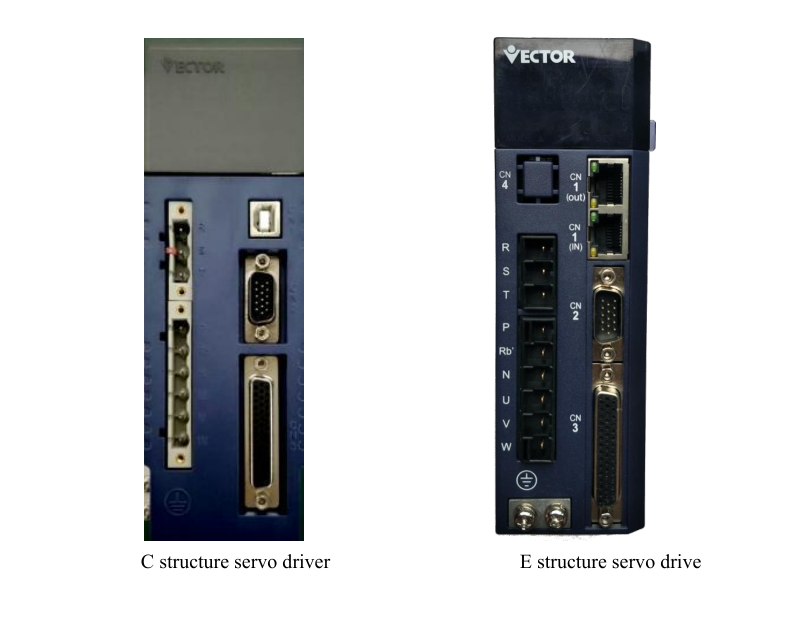

| Satandard Spare Parts | Power terminal |  | Adapt to E1,E2 structure drive |
| Cn3 encoder plug |  | Encoder plug on the driver side | |
| Cn4 control terminal plug |  | Input/output signal terminals,user wiring | |
| Encoder connection line |  | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according
to customer needs Provide independent connector | |
| Power line |  | The standard cable length is 3, 5, 8, 10, 13, 15 meters, according
to customer needs Provide independent connector | |
| Drive monitoring line |  | Connect and adjust the software for remote monitoring and firmware update | |
| Purchasing Spare Parts | USB to RS232 Adapter cable |  | If necessary, self purchase |
| Ethernet communication line |  | If necessary, self purchase |
Certificates
Delivery Time and Shipping Way
| Quantity | 1-5 kits | 50-100 kits | 200-500 kits |
| Delivery time | Within 3 days | 5-10 days | 15-25 days |
1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
|
