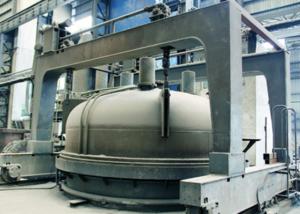

10 Ton Vacuum Degassing Furnace VD In Steel Making

10T VD Vacuum Oxidization Decarbonization Vacuum degassing Vacuum Refining Furnace

The vacuum degassing furnace of induction smelting firstly melts the metal (or vacuum) in the atmospheric environment. In the refining stage, the molten metal is degassed in the vacuum state, and the liquid metal is cast in the atmosphere or under the protection of inert gas.We have improved and optimized the structure of the steel-shell induction furnace so that the liquid metal can be degassed and refined under vacuum conditions.We have improved and optimized the structure of the steel-shell induction furnace so that the liquid metal can be degassed and refined under vacuum conditions.

Function:

1. Production of high quality low alloy steel, low carbon steel, bearing steel, alloy steel structure, stainless steel, die steel, tool steel, ultra-low carbon steel, etc., the gas in molten steel, inclusion, chemical composition of the steel has strict requirements;

2. Vacuum feeding, fine tuning of alloy composition;

3. Vacuum degassing;

4. Vacuum-oxygen decarbonizing

5. Bottom blowing argon stirring

Features:

1. The vacuum tank is sealed by a single hollow sealing ring and protected by water cooling.

2. The tank cover adopts butterfly head structure, high strength, uniform force;

3. Vacuum tank car adopts frequency conversion speed regulation, running smoothly;

4. The vacuum pipe adopts water-cooled pipe, which can reduce the exhaust gas temperature and airflow temperature;

5. The observation glass of artificial observation window is provided with inert gas protection and stroboscopic device or TV camera device;

6. Under vacuum conditions to achieve artificial temperature sampling and automatic feeding;

7. The oxygen blowing device is equipped with special sealing device, less wear and tear, anti-leakage, and easy to adjust the oxygen lance;

8. Argon stirring;

9. Equipped with PLC control system.

Selling Units: Single item

Single package size: 150*100*170cm

Single gross weight: 100,000kg

Package Type: Safety Seaworthy Package

Lead Time:
