2 Cavity Motorcycle Tyre Bladder Curing Press Machine Inner Tube Making Machine

Categories	Tyre Tube Making Machine
Brand Name:	HHS
Model Number:	LLY-103
Certification:	CE ISO
Place of Origin:	CHINA
MOQ:	1 set
Price:	USD:3000-25000 /SET
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/month
Delivery Time:	20 working days
Packaging Details:	Wood package /20-40 container
TYRE SIZE:	4-18 INCHES motorcycle tyre ,atv
Linng cloth:	400
Nose center height:	850-870
Working air:	0.7-0.9mpa
Curtain roll max diameter:	450mm
Colour:	Green,blue, customize
Operation person:	6-8 workers
Raw material:	Reclaimed rubber
Production capacity:	10000 tires per day
Power (kW):	7.5 kW
Weight (KG):	2500 KG
Voltage:	According to customers' requirement

Contact Now

Add to Cart

Company Info.

Qingdao Honghesheng Industry Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

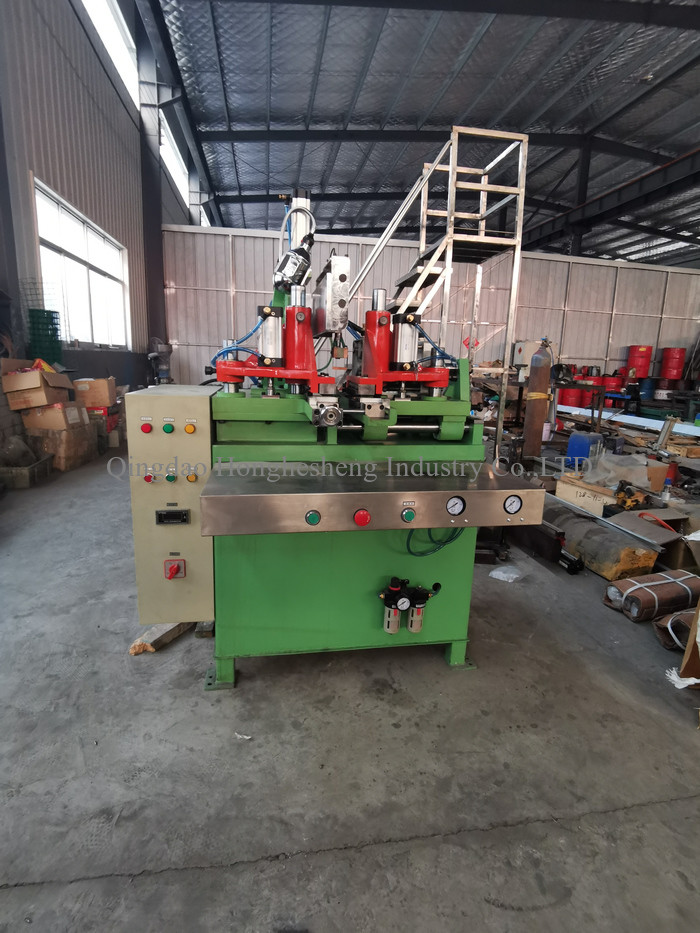

Motorcycle Tyre Bladder Curing Press Machine/ Inner Tube Making Machine

1. USES:

capsule vulcanizing press for tire: from bottom to up, capsule vulcanizing, low price, easily repair

2. Paremeter

Model	LLY-60	LLY-66	LLY-103	LLY-135	LLY-135	LLY-160
Tire Size	M/C & S/C	S/C I/D	L/T M/C S/C	L/T M/C S/C	L/T M/C S/C	L/T M/C S/C
Bead Dia. Range	8-18	4-10	8-21	8-21	8-21	8-21
Oil Cylinder Size(mm)	225	200	250	300	300	325
Clamping force (tons)	60	66	103	135	135	160
Platen O.D.(mm)	800	600	883	1000	1067	1100
Mold Thickness(mm)	50-180	130-300	100-230	100-340	100-340	170-400
No. Of Cavity	2
Internal Pressure	Max.22Kg/cm2
Platen Steam	Max.10Kg/cm2
Hydraulic Water	20Kg/cm2
Compress Air	7Kg/cm2
Vacuum	Above 100mm Hg
Curing System	High temperature hot water or steam
